Double Wall Sanwich Outdoor Telecom Cabinet, Outdoor Communication Cabinets
Double Wall Sanwich Outdoor Telecom Cabinet , Outdoor Communication Cabinets
Quick Details:
| Place of Origin: Shenzhen, China (Mainland) |
External Size H×W×D 2100×900×900mm Internal Size H×W×D 1800×800×800mm |
|
Brand Name: ESTEL |
Structure: double wall, with insulation, sandwich structure |
|
Model Number: ET9090210 |
Cabinet Layout: one compartment, for installing 19” equipment |
|
Product Name: Outdoor Telecom Equipment Cabinet |
Cabinet Lock: anti-theft three point lock |
| Certification: ISO9001, CE, 3C, FCC, TLC, IP55 |
Protection Level: IP55 |
| Application: outdoor telecom base station | Cable Entry: at cabinet bottom |
| Material: galvanized steel | Illumination: DC48V LED lamp |
|
Heat Insulation: PEF |
Grounding Protection: copper bar |
|
Color: grey (support custom made) |
Cooling: DC48V heat exchanger and DC48V fans |
|
Coating: anti-corrosion outdoor powder coating |
Accessories Options: PDU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Payment Terms: | T/T, L/C, DA, DP, etc |
| Supply Ability: | 6,800 sets per month |
| Delivery Time: | 10-15 working days |
| Packaging Details: | wooden case |
1. Specifications
(1) Technical Parameters
|
Item |
Type | Technical Parameter |
| Structure | Dimension |
External Size H×W×D 2100×900×900mm Internal Size H×W×D 1800×800×800mm |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack | |
| Door | With one front door , and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel ; 1.5mm thick outer plate, 0.8mm thick inner plate | |
| Heat Insulation | There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF | |
| Structure | Assembled | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | DC48V heat exchanger and DC48V fans |
| Lightning Proof | Grade B lightning proof | Nominal: 60KA, Max.: 100KA |
| Lighting | LED lamp | 48V LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
(2) Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Size H×W×D 2100×900×900mm Internal Size H×W×D 1800×800×800mm (2) One compartment: 19” standard installation rack; (3)With one front door, and anti-theft three point lock for outdoor cabinet (support padlock); (4) Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate. (5)There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF |
| 2 | Heat Exchanger | 1 | Set |
Heat Exchange Capacity: 190W/K; Power Supply: DC48V; Model: HE06-190SEH/01. |
| 3 | Auxiliary Direct Ventilation Fans | 2 | PC | DC48V |
| 4 | Door Sensor | 1 | PC | For controlling LED lamp on/off |
| 5 | LED Lamp | 1 | PC | DC48V |
| 6 | Power Distribution Unit | 1 | Set |
Grade B Lightning Proof AC Input: 63A/2P *1; AC Output: 16A/1P*4; DC Output: 16A/1P*4; Input Voltage: AC220V. |
| 7 | Package | 1 | Set | Wooden Case |
2. Application
The ET9090210 Integrated Outdoor Telecom Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc
3. Description
The cabinet is one compartment cabinet. The cabinet cooling use heat exchanger and fans, to ensure the equipments operate normally at stable temperature range, so as to make the service life of the equipments much longer and their performance more stable.

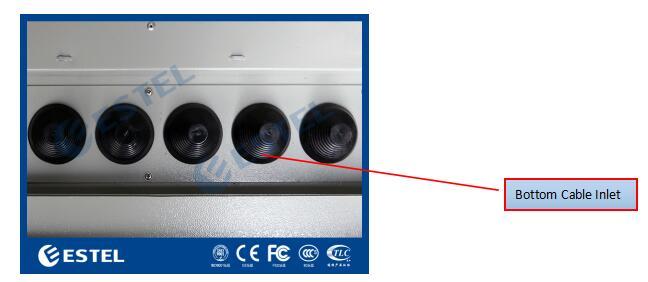

3.1 Wire Routing Design
Feeder cable and other external cables all use bottom wiring method.

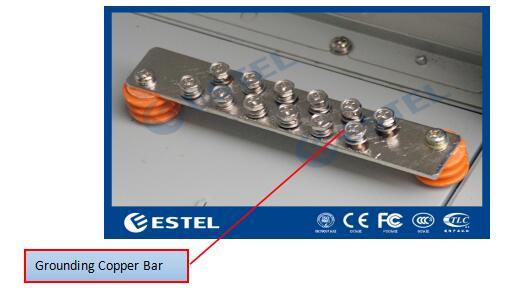

3.2 Grounding Protection
- The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
- The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
- Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.

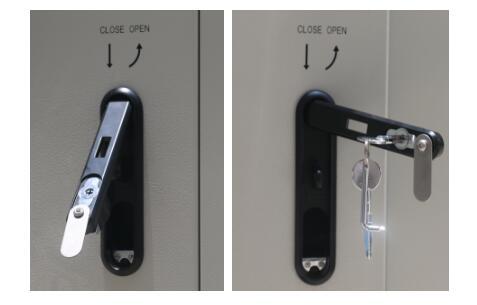

3.3 Door lock theft proof design
(1) Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.
- Three point lock

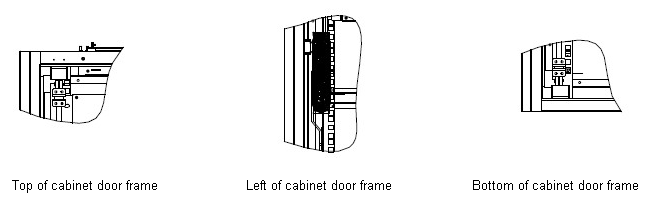

3.4 Connection and Fastening
- Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.

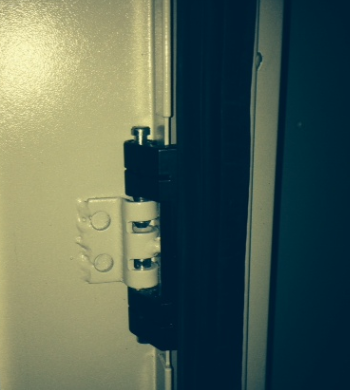

- Door hinges use inner hinge mode.
3.5 Appearance and Surface Treatment
Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.

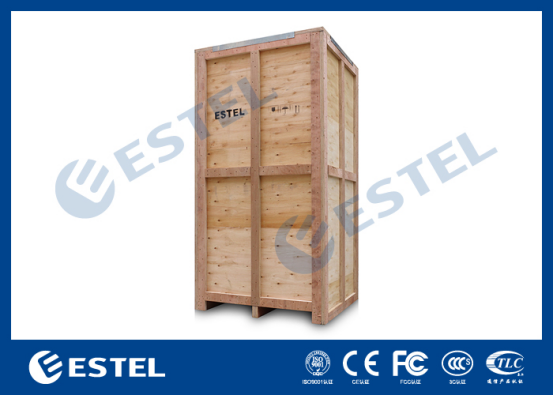

4. Packing and Shipping
Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
