Equipment Enclosures Outdoor Battery Cabinet IP55 With Anti Theft Three Point Lock
Equipment Enclosures Outdoor Battery Cabinet IP55 With Anti Theft Three Point Lock
Quick Details:
| Place of Origin: Shenzhen, China (Mainland) | External Size: H×W×D 1000×650×650mm |
| Brand Name: ESTEL | Structure: double wall, with insulation, sandwich structure |
| Model Number: DDTE017 | Cabinet Layout: one compartment, for installing batteries |
| Product Name: Outdoor Battery Cabinet | Cabinet Lock: anti-theft three point lock |
| Certification: ISO9001, CE, 3C, FCC, TLC, IP55 | Protection Level: IP55 |
| Application: outdoor telecom base station | Cable Inlet: at cabinet bottom |
| Material: galvanized steel | Illumination: DC48V LED lamp |
| Heat Insulation: PEF | Grounding Protection: copper bar |
| Color: grey (support custom made) | Cooling: AC220V Air Conditioner and fans |
| Coating: anti-corrosion outdoor powder coating | Cooling Options: heat exchanger, peltier air conditioner and fans |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Payment Terms: | L/C,D/A,T/T, Western Union, Paypal, etc |
| Supply Ability: | 5,000 sets per month |
| Delivery Time: | 15-20 working days |
| Packaging Details: | wooden case |
1. Specifications
(1) Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: H×W×D 1000×650×650mm |
| Layout | 1 compartment | |
| Equipment Installation Method | Battery Shelf | |
| Door | With one front door , and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel ; 1.5mm thick outer plate, 0.8mm thick inner plate | |
| Heat Insulation | There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF | |
| Structure | Welded or assembled | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | AC220V air conditioner and fans |
| Lighting | LED lamp | 48V LED lamps (immovable), with protective circuit breaker |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 (1±5%)W/m2 |
(2)Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Battery Cabinet | 1 | Set |
(1) External Dimension: H×W×D 1000×650×650mm (2) One compartment: battery compartment (3)With one front door , and anti-theft three point lock for outdoor cabinet (support padlock) (4) Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate;with 20mm PEF heat insulation between two wall. |
| 2 | Air Conditioner | 1 | Set |
Cooling capacity: 500W, AC220V, 50HZ; Model:TC06-50JFH/01 |
| 3 | Auxiliary Direct Ventilation Fans | 1 | PC | 12038 DC48V |
| 4 | Door Sensor | 1 | PC | Used for controlling LED lamp on/off |
| 5 | LED Lamp | 1 | PC | DC48V |
| 6 | Package | 1 | Set | Wooden Case |
2. Description
The DDTE017 Outdoor Integrated Telecom Cabinet (Battery Cabinet) works as a small Outdoor Integrated Base Station Cabinet. It is mainly used in wireless communication base station, such as 4G system, communication or network integrated service, access or transmission switching station, emergency communication or transmission, etc.
Cabinet size: 650×650×1000mm (W×D×H)
2.1 Cabinet Material
The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF, heat insulation coefficient: 0.035W/m·K. The cabinet is assembled type.The cabinet also has roofs which is sun proof and water proof.
2.2 Cabinet Structure
The cabinet includes battery shelf. The cabinet includes one air conditioner, installed on front door.
2.3 Cabinet Door and Lock

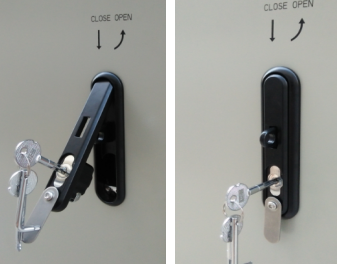

The cabinet includes one front door. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.
2.3.1 Door lock theft proof design
- Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock

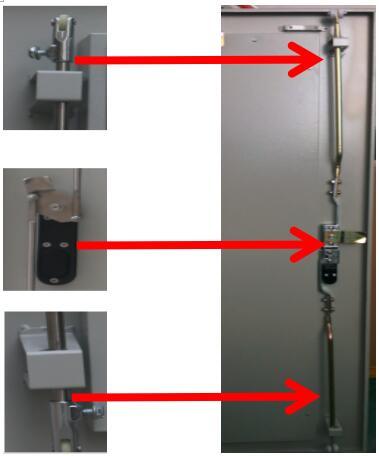

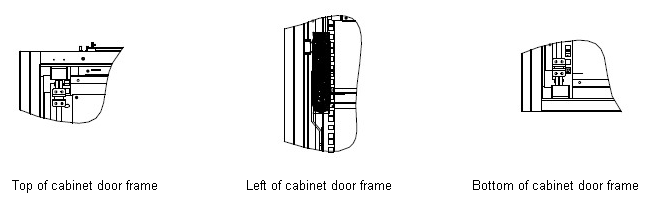

- Three point lock
2.4 Cable Inlet

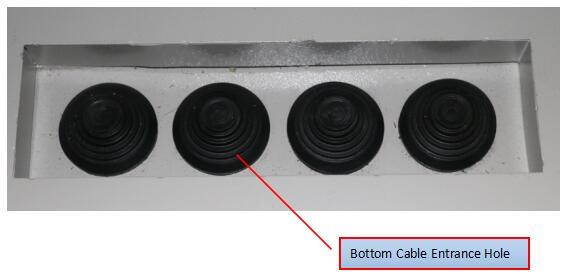

Feeder cable and other external cables all use bottom wiring method.
2.5 Grounding Protection

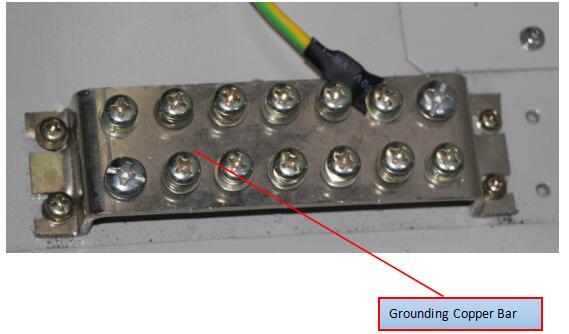

- The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
- The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
- Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.
2.6 Connection and Fastening
- Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.

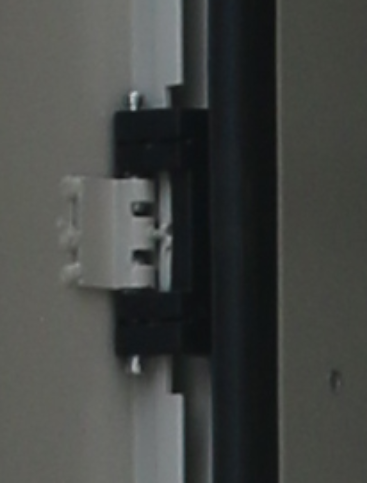

- Door hinges use inner hinge mode.
2.7 Appearance and Surface Treatment
Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.
3.Features
- The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment. The protection level is IP55.
- Cabinet cooling: air conditioner.
- -48V lamp is installed inside the cabinet.
- The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There’re entrance holes individually for power cable, signal cable and optical cable.
- All the cables used in the cabinet are made from flame retardant materials.
- The cabinet size can be custom made.
4. Application Scope
The Outdoor Battery Cabinet is mainly used in communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
5. Packing and Shipping
Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
