Dustproof Integrated Outdoor Power Cabinet , Outdoor 19 Rack Enclosure
Dustproof Integrated Outdoor Power Cabinet , Outdoor 19 Rack Enclosure
Quick Details:
| Place of Origin: Shenzhen, China (Mainland) | External Dimension: H×W×D 2195×900×900mm |
| Brand Name: ESTEL | Structure: double wall, with insulation, sandwich structure |
| Model Number: DDTE080 | Cabinet Layout:one compartment, the upper is for installing installing 19” equipments, the lower is for batteries |
| Product Name: Outdoor Power Cabinet | Protection Level: IP55 |
| Certification: ISO9001, CE, 3C, FCC, TLC, IP55 | Cable Gland: at cabinet bottom |
| Application: outdoor telecom base station, telecom tower | Illumination: DC48V LED lamp |
| Material: galvanized steel | Grounding Protection: copper bar |
| Heat Insulation: PEF | Cabinet Lock: anti-theft three point lock |
| Color: grey (support custom made) | Cooling: AC220V air conditioner and DC48V heat exchanger |
| Coating: anti-corrosion outdoor powder coating | Accessories Options: telecom power system |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Payment Terms: | T/T, L/C, D/D, D/P, etc |
| Supply Ability: | 6,000 sets per month |
| Delivery Time: | 15-20 working days |
| Packaging Details: | wooden case |
1. Specifications
(1) Technical Parameters
|
Item |
Type | Technical Parameter |
| Structure | Dimension |
External Dimension:W×D×H 900×900×2195mm
|
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack | |
| Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel, 1.5mm thick outer plate, 0.8mm thick inner plate | |
| Heat Insulation | There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. | |
| Structure | Assembled | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | AC220V air conditioner and DC48V heat exchanger |
| Lightning Proof | Grade B lightning proof | Nominal: 60KA, Max.: 100KA |
| Lighting | LED lamp | 48V LED lamps (immovable), with protective circuit breaker |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
(2) Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension:W×D×H 900×900×2195mm (2) One compartment: the upper part is equipment compartment, the lower part is battery compartment (3)With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) (4) Material: Galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate; (5) There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. |
| 2 | Air Conditioner | 1 | Set |
Cooling capacity: 0.3KW, Power Supply: AC220V, 50HZ; Model: TC06-30JFH/01 |
| 3 | Heat Exchanger | 1 | Set |
Cooling capacity: 1.3KW, Power Supply: DC48V; Model: HE06-130SEH/01 |
| 4 | Door Sensor | 1 | PC | For controlling LED lamp |
| 5 | LED Lamp | 1 | PC | DC48V |
| 6 | Embedded Telecom Power System (UPS/Rectifier) | 1 | Set | DC48V, 120A, 5760W; |
| 7 | Package | 1 | Set | Wooden Case |
2. Brief
The cabinet is one compartment cabinet. The cabinet cooling use air conditioner and heat exchanger, to ensure the equipments operate normally at stable temperature range, so as to make the service life of the equipments much longer and their performance more stable.
3. Applications
The DDTE080 Outdoor Telecom Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
4. Features
- The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
- Cabinet cooling: heat exchanger and air conditioner. (Other cooling option: fans). MTBF≥50000h
- The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.
- All the cables used in the cabinet are made from flame retardant materials.
5. Description
- Applicable environment conditions:
Operating temperature: -40°C ~ + 55°C
Storage temperature: -50°C ~ + 70°C
Transport temperature: -50°C ~ + 70°C
Relative humidity (RH): 5%~99%
Air pressure: 62kPa ~ 101kPa (similar to 0m ~ 5000m altitude)
- Material: good quality galvanized steel
- Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
- Cabinet load bearing: ≥600kg
- Ingress protection: IP55
- Flame retardance: comply with GB5169.7 test A
- Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2×104M/500V(DC).
- Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.
- Mechanical strength: each surface can bear upright pressure >980N; after the door is open, its outer end can bear upright pressure >200N.
- LED lamp, LED lamp sensor,are installed at the top of the cabinet.
- Telecom power system is installed on 19” rack.
- The cabinet includes one air conditioner and one heat exchanger, installed on front door

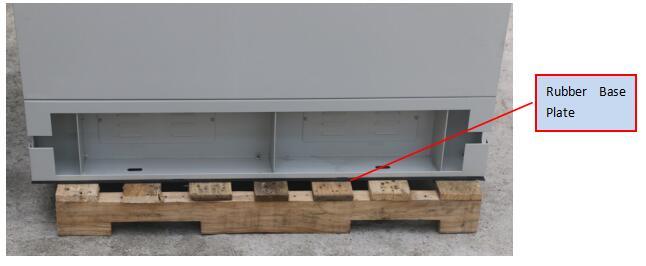

- The cabinet includes rubber base plate, for installation on transport telecom tower trailer.
-

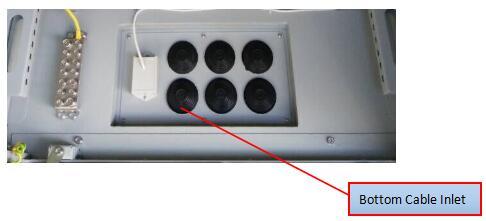

Cable Inlet
Feeder cable and other external cables all use bottom wiring method.
-

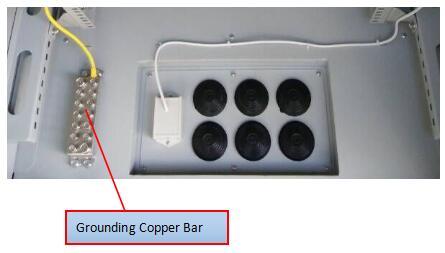

Grounding Protection
The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.
-
Door lock theft proof design
Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.

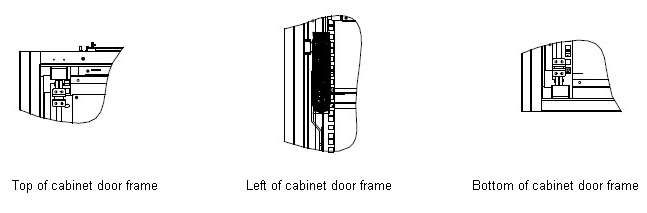

Three point lock
-
Connection and Fastening
Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.

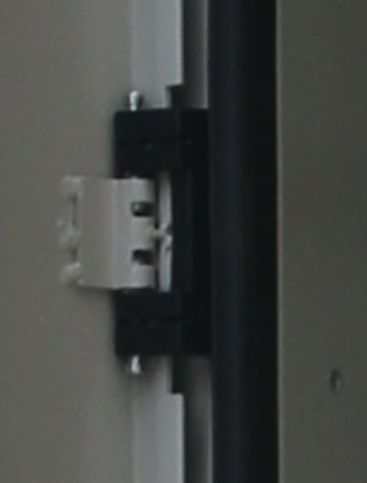

Door hinges use inner hinge mode.
-
Appearance and Surface Treatment
Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.
