Professional 6 Doors Base Station Cabinet PEF Heat Insulation 1470×1800×900 mm
Professional 6 Doors Base Station Cabinet PEF Heat Insulation 1470×1800×900 mm
Quick Details:
| Place of Origin: Shenzhen, China (Mainland) | External Size H×W×D 1470×1800×900mm |
|
Brand Name: ESTEL |
Structure: double wall, with insulation, sandwich structure. |
|
Model Number: DDTE032 |
Cabinet Layout: three compartments |
|
Product Name: Integrated Outdoor Telecom Cabinet / Base Station Cabinet |
Cabinet Lock: anti-theft three point lock |
| Certification: ISO9001, CE, 3C, FCC, TLC, IP55 |
Protection Level: IP55 |
| Application: outdoor telecom base station | Cable Entry: at cabinet bottom |
| Material: galvanized steel | Illumination: DC48V LED lamp |
|
Heat Insulation: PEF |
Grounding Protection: copper bar |
|
Color: grey (support custom made) |
Cooling: AC220V Air Conditioner |
|
Coating: anti-corrosion outdoor powder coating |
Accessories Options: PDU, environment monitoring system |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, Paypal, etc |
| Supply Ability: | 6,000 sets per month |
| Delivery Time: | 10-15 working days |
| Packaging Details: | wooden case |
1. Specifications
(1) Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: H×W×D 1470×1800×900mm |
| Layout | 3 compartments | |
| Equipment Installation Method | 19” rack | |
| Door | With three front doors and three back doors, totally 6 doors, with three-point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate; double walls. | |
| Heat Insulation | There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. | |
| Structure | Assembled | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | AC220V air conditioner |
| Lightning Proof | Grade B lightning proof | Nominal: 60KA, Max.: 100KA |
| Lighting | LED lamp | 48V LED lamps (immovable), with protective circuit breaker |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension: H×W×D 1470×1800×900mm (2) 3 compartments: the left part is battery compartment, the middle and the right parts are equipment compartments; (3) With three front doors and three back doors, totally 6 doors, with three-point lock for outdoor cabinet (support padlock); (4) Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate. (5) Heat insulation: 20mm PEF. |
| 2 |
Air Conditioner (for equipment compartment) |
1 | Set |
Cooling Capacity: 2KW; Power Supply: AC220V, 50HZ. |
| 3 |
Air Conditioner (for battery compartment) |
1 | Set |
Cooling Capacity: 1KW, Power Supply: AC220V, 50HZ. |
| 4 | Environment Monitoring System | 1 | Set |
Including: 1×Environment Monitoring Unit SM2400 3×Water Sensor 3×Smoke Sensor 2×Temperature and Humidity Sensor 3×Door Sensor |
| 5 | LED Lamp Sensor | 3 | PC | For controlling LED lamp on/off |
| 6 | LED Lamp | 3 | PC | DC48V |
| 7 | Power Distribution Unit | 1 | Set |
Grade B Lightning Proof AC Input: 63A/2P *1; AC Output: 16A/1P*4; DC Output: 16A/1P*4 |
| 8 | Package | 1 | Set | Wooden case. |
2. Application
The DDTE032 Three Compartments Outdoor Telecom Cabinet With Air Conditioners is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
3. Features
- The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment. The protection level is IP55.
- Cooling for the cabinet: air conditioner(other options: fans and heat exchanger).
- -48V lamp is installed inside the cabinet.
- The cabinet is installed with Environment Monitoring Unit, door alarm, temperature and humidity sensor, smoke sensor, water sensor etc., which can work together to monitor the inside environment of the cabinet.
- The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There’re entrance holes individually for power cable, signal cable and optical cable.
- All the cables used in the cabinet are made from flame retardant materials.
- Cabinet size can be custom made.
- Optional accessories: environment monitoring unit, sensors, power system, power monitoring unit, PDU. etc.

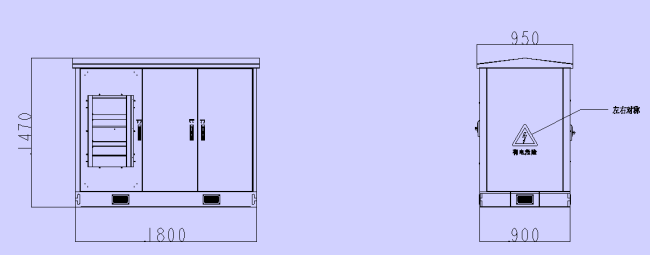

4. Cabinet Layout
5. Description
5.1 Structure
The DDTE032 Outdoor Integrated Telecom Cabinet can be installed on road side, building roof, or remote area etc. It includes three compartments and two air conditioners (or heat exchanger). The left compartment is battery compartment, and the other two compartments are equipments compartments.The structure can be custom made. The cooling options includes AC220V air conditioner, DC48V air conditioner, DC48V heat exchanger and fans.
The cabinet, made of galvanized steel, is divided into equipment compartments and battery compartment. The equipment compartment is separated from the battery compartment for heat insulation of the equipment space. The battery compartment is used for installing batteries. The cabinet body has heat insulation foam, which can keep the temperature inside the cabinet. The cabinet also has roofs which is sun proof and water proof. There’re ventilations for releasing harmful gas generated by the batteries.

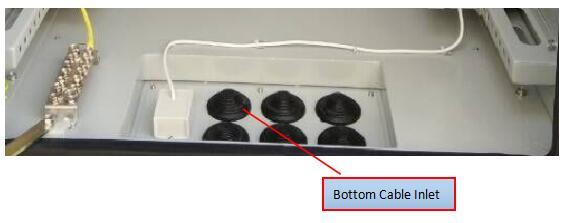

5.2 Cable Inlet
Feeder cable and other external cables all use bottom wiring method.

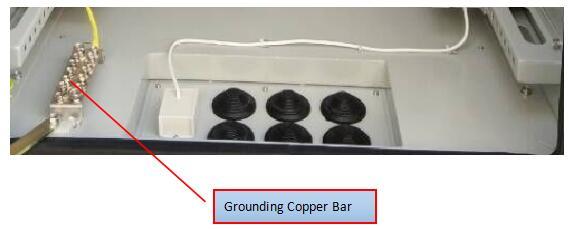

5.3 Grounding Protection
- The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
- The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
- Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.
5.4 Theft Proof Design

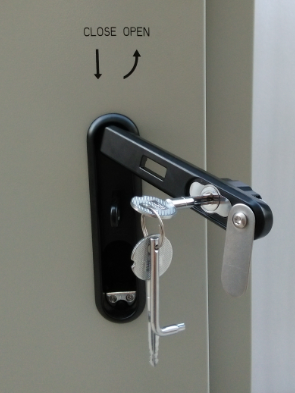

5.4.1 Door lock theft proof design
- Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.

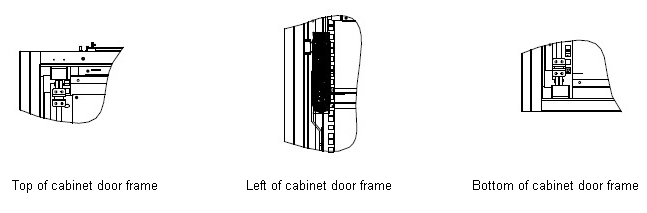

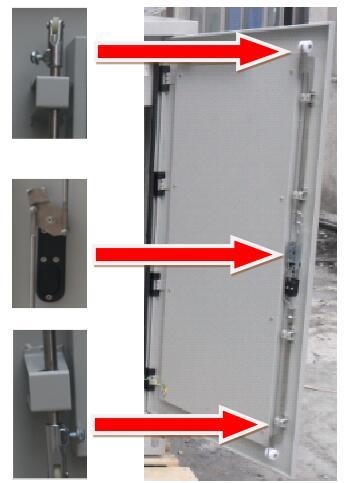

- Three point lock
5.5 Connection and Fastening
- Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
- Door hinges use inner hinge mode.
5.6 Appearance and Surface Treatment
Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.
5.7 Components Installation
5.7.1 LED lamp, smoke sensor and door sensor are installed at the top of the cabinet. 5.7.2 Environment monitoring unit , PDU and rectifier system are installed on 19” rack.
5.7.3 Water sensor is installed at the bottom of the cabinet.
5.7.4 Temperature and humidity sensor is installed at the side inside the cabinet.
5.7.5 Air Conditioner is installed on the door of the cabinet.
