Two Compartment Cooler Outdoor Communication Cabinets Assembled Structure IP55


Quick Details:

Payment & Shipping Terms:

1. Specifications

(1) Technical Parameters

Accessories List

2. Description

The cabinet, made of galvanized steel, is divided into equipment compartments and battery compartments. The right part of the cabinet is equipment compartment, which is separated from the battery compartment for heat insulation of the equipment space. The battery compartment is used for installing batteries. The cabinet body has heat insulation foam, which can keep the temperature inside the cabinet. The cabinet also has roofs which is sun proof and water proof. There are ventilation for releasing harmful gas generated by the batteries.

2.1 Cabinet Material

The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF, heat insulation coefficient: 0.035W/m·K. The cabinet is assembled type.

2.2 Cabinet Structure

The cabinet includes 19” equipment installation rack. The cabinet includes one air conditioner and one heat exchanger, installed on front doors.

2.3 Cabinet Door and Lock

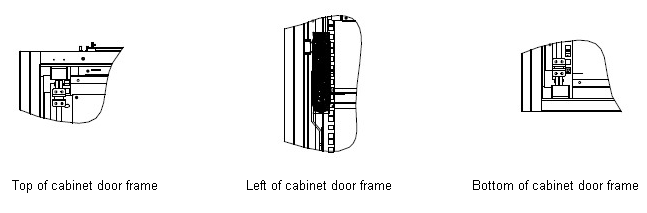

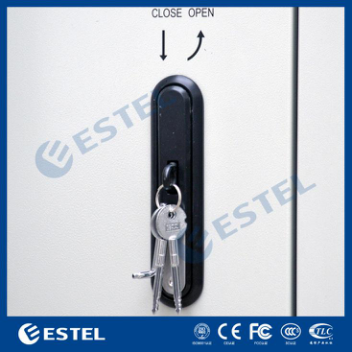

The cabinet includes one two doors. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theft proof three point lock, supporting padlock.

2.3.1 Door lock theft proof design

• Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.

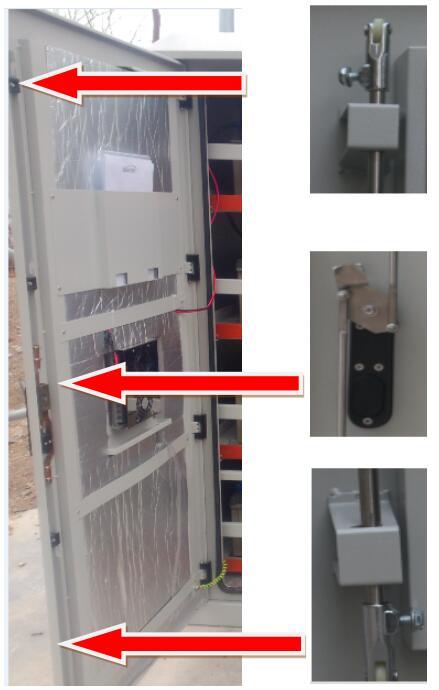

• Three point lock

2.4 Cable Inlet

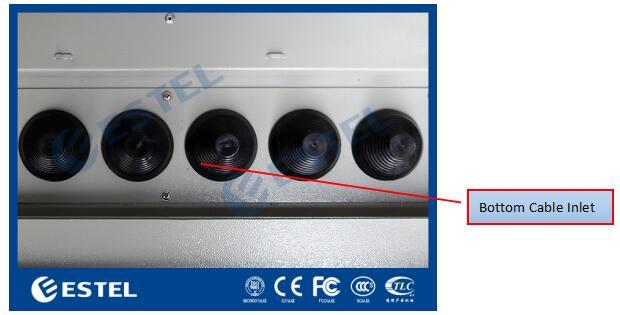

Feeder cable and other external cables all use bottom wiring method.

2.5 Grounding Protection

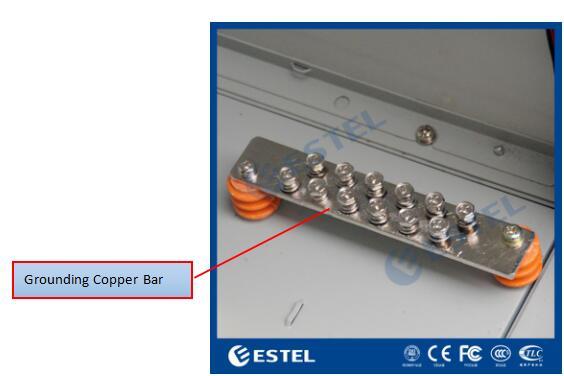

• The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.

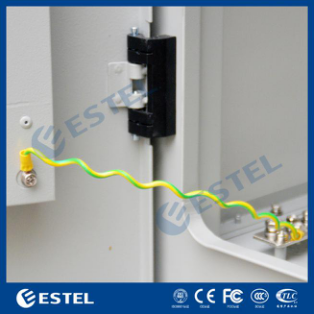

• The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
• Protective earthing of other equipment inside the cabinet should be connected to the grounding bar.

2.6 Connection and Fastening

• Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
• Door hinges use inner hinge mode.

2.7 Appearance and Surface Treatment

Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The

coating complies with GB/T 3181-2008 requirement.

3. Applications

The DDTE010 Outdoor Telecom Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.

4. Features

• The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment. The protection level is IP55.
• Three cooling options for the cabinet: fans, heat exchanger or air conditioner.
• -48V lamp is installed inside the cabinet.
• The cabinet is installed with Environment Monitoring Unit, door alarm, temperature and humidity sensor, smoke sensor, water sensor etc., which can work together to monitor the inside environment of the cabinet.
• The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.
• All the cables used in the cabinet are made from flame retardant materials.
