Galvanized Steel Cabinet Heat Exchanger
Enclosure Galvanized Steel Heat Exchanger Strong Adaptability High Intelligence
Quick Details:
| Place of Origin: Shenzhen, China (Mainland) | Rated Heat Exchange Capacity: 150W/K |
| Brand Name: ESTEL | Rated Heating Capacity:300/500W (optional) |
| Model: HE06-150SEH/01(CW043) | Input Voltage: DC48V |
| Product Name: Outdoor Enclosure Heat Exchanger | Rated Input Current: 2.5A |
| Certification: ISO9001, CE, 3C, FCC, TLC | Rated Input Power: 120W |
| Cover: including outer cover | Working Temperature: -20°C ~ +55°C |
| Color: gray | Energy Efficiency Ratio (EER):12.5 |
| Protection Level: IP55 | Noise: 64dB |
| Installation Mode: door mounted, side mounted | Dimension W×D×H: 430×176×700 mm |
| Support OEM | Cooling Method: heat pipe, passive cooling |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 14,000 sets per month |
| Delivery Time: | 10-15 working days |
| Packaging Details: | carton + foam + wooden case +pallet |
1. Specifications
(1) Technical Parameters
| Model No. | HE06-150SEH/01 | |
| Environmental Performance | working environmental temperature | -20°C ~ 55°C |
| storage working temperature | -40°C ~ 70°C | |
| working humidity | ≤95% | |
| Thermal Performance | rated heat exchange capacity | 150W/K |
| rated heating capacity | 300/500W (optional) | |
| Electrical Performance | rated input current | 2.5A |
| rated input power | 120W | |
| rated input voltage | DC48V | |
| Reliability | MTBF | 70000 hours |
| Noise | 64dB | |
| Energy Efficiency Ratio (EER) | 12.5 | |
(2) Dimension Diagram: 430×176×700 mm (W×D×H)
|
Size Specs |
Model | A | B | C | D | E | F | G | H | I | J | K |
| 150W/K | HE06-150SEH/01 (CW043) | 300 | 401 | 450 | 600 | 672 | 700 | 133 | 176 | 649 | 379 | 430 |
2. Description
Cabinet heat exchanger is a device that utilizes the natural cool resources to exchange heat between hot inside and cool outside of cabinet with limited power consumption.
When there is large temperature difference, the device will effectively exchange heat between hot inside and cool outside, which make the cabinet be an enclosed system with temperature control, and equipment inside can work normally.
3. Application
The cabinet heat exchanger is widely used for outdoor telecom cabinet, outdoor battery cabinet, outdoor UPS cabinet, outdoor power cabinet, electric cabinet and industry cabinet,etc.
4. Features
- Strong adaptability
- High intelligence
- High precision
- High reliability
- The heat exchange capacity can be set according to need
- Low noise
- Low energy consumption
- With 4 way switching value detection
- With 1 way room air conditioner control
- Wide input voltage range: DC36 - 65V
- With dry contact alarm output
- Dust proof and water proof
5. System Principle Diagram

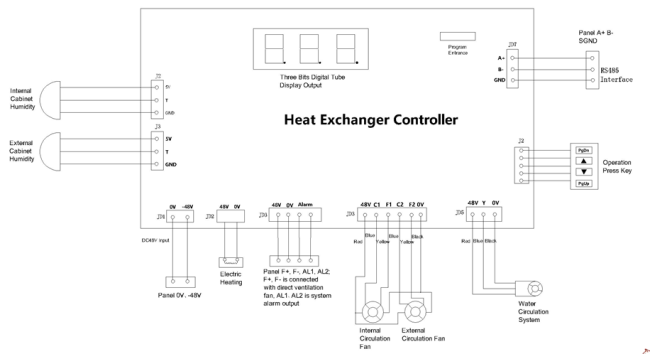

6. Electrical Wiring Diagram

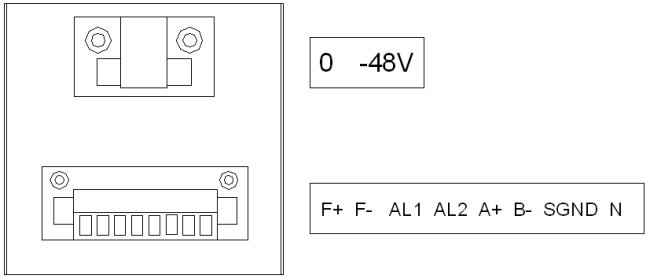

Wiring Ports:
0V -48V: power supply input (voltage input: DC36 - 65V)
A+ B- SGND: RS485 communication interface
AL1 AL2: general alarm output
F+ F- : auxiliary direct ventilation control output (output voltage: DC48V)
7. System Control Wiring Diagram

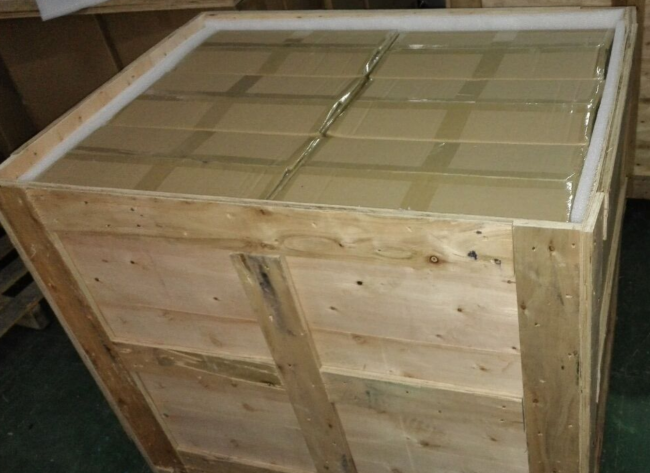

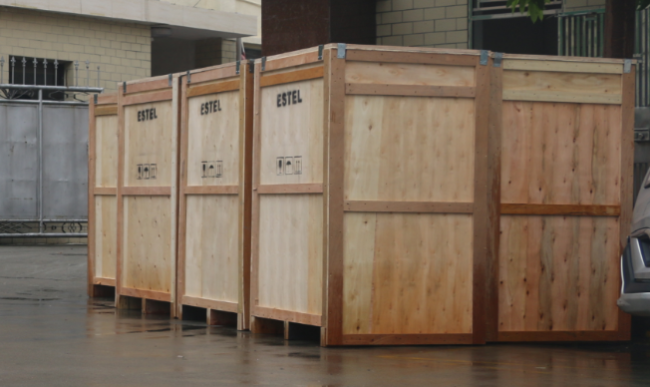

8. Packing and Shipping
