1. Specifications

System Working Principle

2. Introduction of Intelligent Ventilation System

2.1 Working Principle

The system is an intelligent ventilation system providing air circulation, air filtration and cooling control for telecom room. The system itself doesn’t include any cooling element. It directly draws cold air into the telecom room from outside and exhaust hot air from telecom room to the outside to realize natural cooling. The system can be used standalone or integrated with air conditioner cooling device.

2.2 Technical Parameters and Application

• Power Supply: DC48V;
• Current: 1A;
• Air Volume: 560CFM;
• Noise: ≤55dB;
• Application: applicable for various types of cabinets.

3. Function and Application

ET726 intelligent ventilation controller is a universal intelligent controller, controlling with highly integrated STC SCM. The controller, with the features of advanced performance, easy installation and setting, are widely used in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, etc.

4. Technical Parameter

• LCD display measured temperature and set temperature;
• Temperature measurement accuracy: 0.1 °C; display accuracy: 0.1 °C;
• Intelligently select cooling mode or heating mode;
• Direct ventilation function with protected mode;
• Power supply: DC48V;
• Power consumption:≤5W;
• Working environment: -30°C~70°C; <90%RH;
• Installation method: guide rail, hanging;
• Dimension(L×W×H):150×190×45mm

5. Controller Instruction

5.1 Function and Application

ET726 intelligent ventilation controller is a universal intelligent controller, controlling with highly integrated STC SCM. The controller, with the features of advanced performance, easy installation and setting, are widely used in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, etc.

5.2 Technical Parameter

• LCD display measured temperature and set temperature;
• Temperature measurement accuracy: 0.1 °C; display accuracy: 0.1 °C;
• Intelligently select cooling mode or heating mode;
• Direct ventilation function with protected mode;
• Power supply: DC48V;
• Power consumption:≤5W;
• Working environment: -30°C~70°C; <90%RH;
• Installation method: guide rail, hanging;
• Dimension(L*W*H):150mm×190mm×45mm

5.3 Operating Instruction

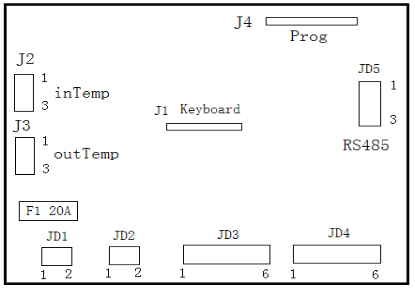

All the operations can be realized with four buttons. The following is the control board diagram:

6. Wiring Diagram

7. Packing and Shipping

Our Delivery Agent

The goods can be shipped by sea, by air, by courier, by land, by train, etc.

Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
