1. Applications
The ET9090210-EQ2 Outdoor Telecom Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
Quick Details:
| Place of Origin: Shenzhen, China (Mainland) |
External Dimension: W×D×H 900×900×2100mm Internal Dimension: W×D×H 800×800×1800mm |
| Brand Name: ESTEL | Structure: double wall, with insulation, sandwich structure |
| Model: ET9090210-EQ2 | Cabinet Layout: one compartment, for installing 19” power equipment |
| Product Name: Outdoor Telecom Equipment Cabinet | Cabinet Lock: anti-theft three point lock |
| Certification: ISO9001, CE, 3C, FCC, TLC, IP55 | Protection Level: IP55 |
| Application: outdoor telecom base station | Cable Entry: at cabinet bottom |
| Material: galvanized steel | Illumination: DC48V LED lamp |
|
Heat Insulation: PEF and EPS |
Grounding Protection: copper bar |
| Color: green (support custom made) | Cooling Method: AC220V air conditioner and DC48V fans |
| Coating: anti-corrosion outdoor powder coating | Accessories Options: door sensor, LED lamp |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Payment Terms: | T/T, L/C etc |
| Supply Ability: | 8,000 sets per month |
| Delivery Time: | 15-20 working days |
| Packaging Details: | wooden case |
2. Specifications
(1) Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
External Dimension: W×D×H 900×900×2100mm Internal Dimension: W×D×H 800×800×1800mm |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack | |
| Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel, double wall | |
| Heat Insulation | There are heat insulation between inner wall and outer wall. The insulation material is PEF and EPS | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | AC220V air conditioner and DC48V fans |
| Lightning Proof | Grade B lightning proof | Nominal: 60KA, Max.: 100KA |
| Lighting | LED lamp | 48V LED lamps (immovable), with protective circuit breaker |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
(2) Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension:W×D×H 900×900×2100mm Internal Dimension: W×D×H 800×800×1800mm (2) One compartment: equipment compartment (3)With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) (4) Material (4.1) Cabinet left side, right side and back: sandwich structure panel, outer plate: 0.5mm galvanized steel, inner plate: 0.5mm galvanized steel, insulation: 45mm flame retarded EPS. (4.2) Cabinet door and base: outer plate: 1.5mm galvanized steel , inner plate: 0.8mm galvanized steel, insulation: 40mm PEF. (4.3) Cabinet roof: sandwich structure panel (outer plate: 0.5mm galvanized steel, inner plate: 0.5mm galvanized steel, insulation: 45mm flame retarded EPS. ) + 1.0mm galvanized steel. |
| 2 | Air Conditioner | 1 | Set |
Cooling capacity: 500W, Power supply: AC220V, 50HZ, Model: TC06-50JFH/01 |
| 3 | Fan | 2 | PC | DC48V |
| 4 | Door Sensor | 1 | PC | Used for open door alarm |
| 5 | LED Lamp Sensor | 1 | PC | Used for controlling LED lamp on/off |
| 6 | LED Lamp | 1 | PC | DC48V |
| 7 | Package | 1 | Set | Wooden Case |
3. Features
- The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
- Cabinet cooling: air conditioner and fans. MTBF≥50000h.
- The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.
- All the cables used in the cabinet are made from flame retardant materials.
- The cabinet includes grounding bar.
- Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
- Cabinet load bearing: ≥600kg
- Ingress protection: IP55
- Flame retardance: comply with GB5169.7 test A
- Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2×104M/500V(DC).
- Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.
- Mechanical strength: each surface can bear upright pressure >980N; after the door is open, its outer end can bear upright pressure >200N.
4. Components Installation

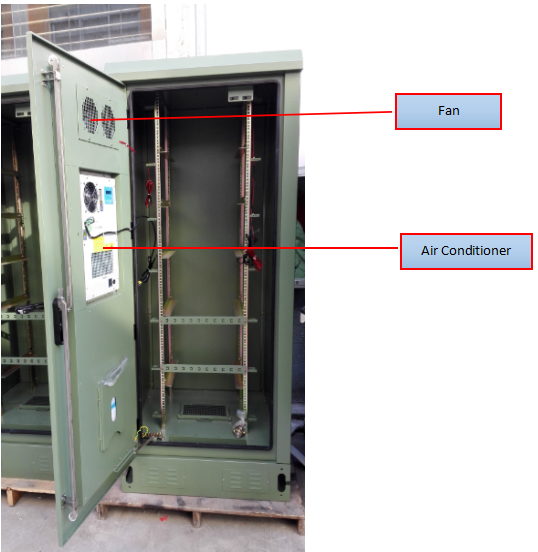

4.1 Air Conditioner and fans are installed on the door of the cabinet.
4.2 LED lamp, LED lamp sensor and door sensor are installed at the top of the cabinet.

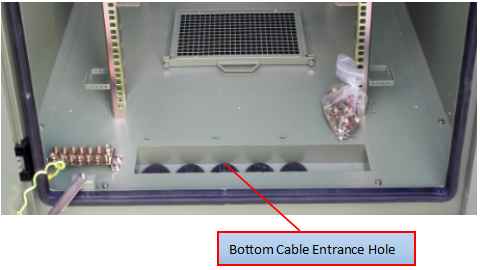

4.3 Cable Inlet
Feeder cable and other external cables all use bottom wiring method.

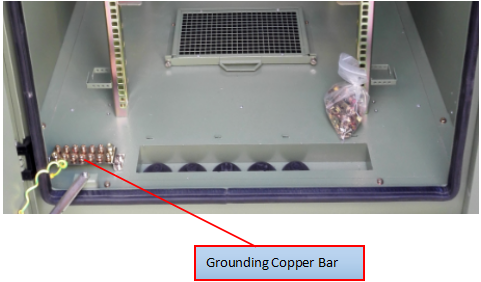

4.4 Grounding Protection
(1)The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
(2)The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
(3)Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.
5. Theft Proof Design
5.1 Door lock theft proof design
Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.

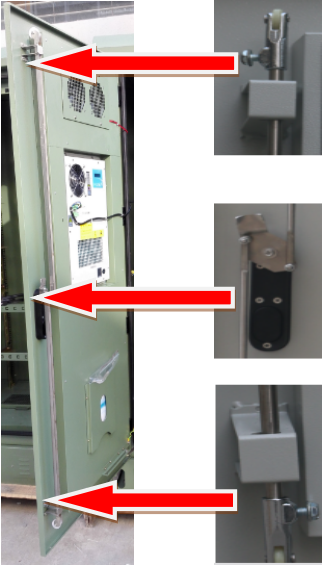

Three point lock
5.2 Connection and Fastening
- Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
- Door hinges use inner hinge mode.
5.3 Appearance and Surface Treatment
Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.
6. Packing and Shipping
Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
7. Our Partner

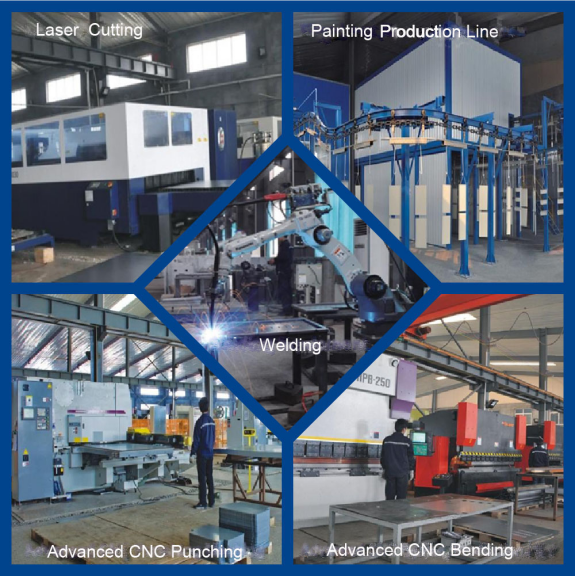

8.Factory Introduction
Factory Size: 3000 Square Meters
No. of Main Production Lines: 5
Contract Manufacturing: OEM Service Offered, Design ServiceOffered, Buyer Label Offered
Production Experience: 13 Years
