Single Wall Steel Metal Customized BTS Telecom Shelter Outdoor Rack Cabinet With Double Door

1. Specifications

 (1) Base parameter

(2) Working environment condition:

Working Temperature: -40°C ~ +55°C

Transport Temperature: -50°C ~ +70°C

Relative Humidity: 5% ~ 100%

Air Pressure: 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)

Solar Radiation Intensity: 1124 × (1±5%)W/m2

(3)Appearance and Surface Treatment

Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.

2. Feature

ESTEL’s Energy Saving Integrated Cabinet provides complete solutions for outdoor working environment and safety management of telecom base station. As a base station, it can integrate the main equipments, system power supply, AC and DC power distribution, environment monitoring, batteries, lightning protection and grounding devices. As functional cabinet (battery cabinet, power supply cabinet, transmission cabinet etc.), it can help telecom carriers to realize easy station obtaining, energy saving, fast deployment.

• The cabinet is weatherproof, such as sun-proof, dust-proof and rainproof, which is used in outdoor environment.
• Cabinet cooling: air conditioner and auxiliary direct ventilation fans. MTBF≥50000h.
• Cabinet load bearing: ≥600kg
• Ingress protection: IP55
• The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.
• All the cables used in the cabinet are made from flame retardant materials.
• The cabinet includes grounding bar.
• Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
• Flame retardance: comply with GB5169.7 test A
• Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2×104M/500V(DC).
• Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.
• Mechanical strength: each surface can bear upright pressure >980N; after the door is open, its outer end can bear upright pressure >200N.

3. Advantages

(1) High integrated

High compatibility, high integration

Supporting multiple equipments, good appearance

(2) Standard compartment temperature control

Multiple temperature control modes optional

Energy saving and high efficiency

(3) Flexible structure

Compartment type design

Flexible assembly

Single compartment / Two compartments / multiple compartments

(4) Fast deployed

Can be assembled, easy for transportation

Modular assembly, short installation time

Suitable for road side station and building top station. After being fixed on the ground, the cabinet will start to work.

(5) Theft - proof

Inside installation, inside fixing, no outer screws

Anti-theft three point lock

Inside door hinges, multiple protection

Embedded cabinet door, theft proof

4. Cabinet detail picture

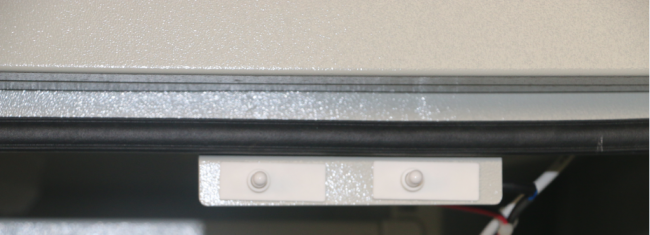

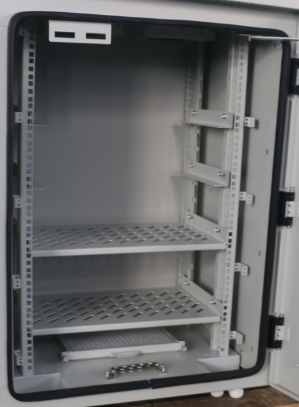

A circle of black part is the sealing joint strip to make sure good waterproof ,dustproof

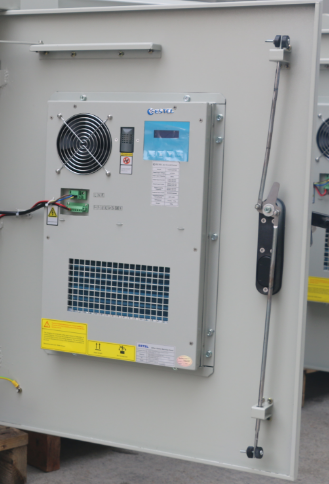

The air conditioner is installed on the cabinet, semi embedded; the lock is three point antitheft lock, damage resistance  meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.

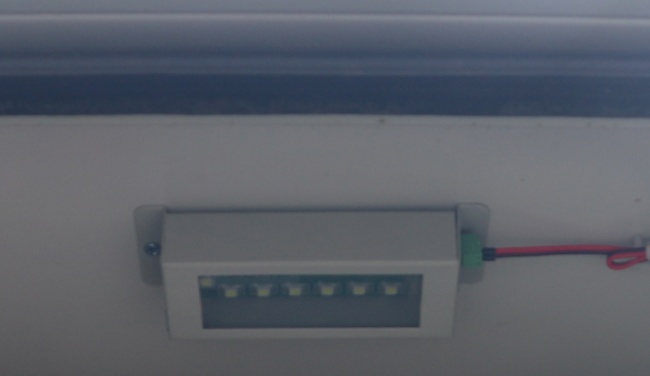

The LED lamp is on the top

The LED lamp sensor is on the top, controlling LED lamp on/off

Grounding copper

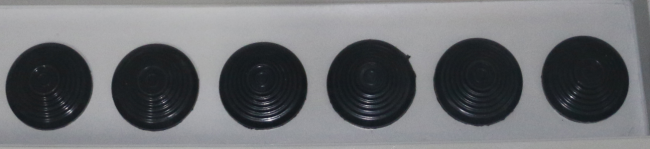

Cable entry is at the cabinet bottom

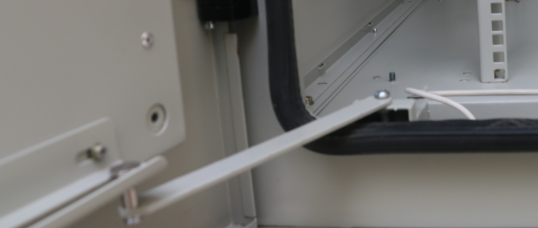

The door limit deviceThe door opening angle is larger than 110°and  can limit the opening angle.

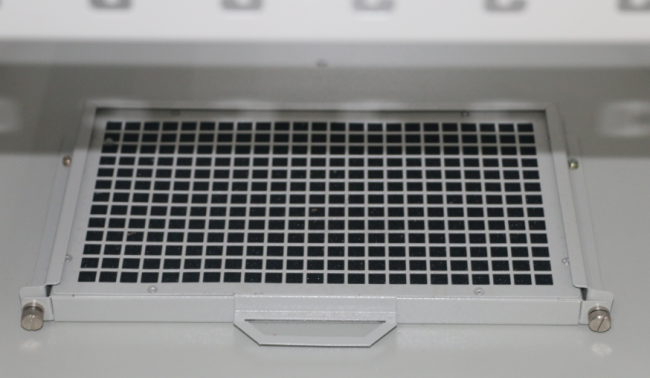

Bottom air inlet

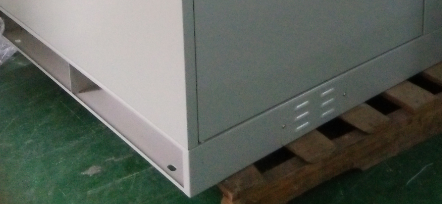

Cabinet base

5. Packing
