IP55 19 Inch Rack Outdoor Telecom Cabinet One Compartment Two Doors Weatherproof
IP55 19 Inch Rack Outdoor Telecom Cabinet One Compartment Two Doors Weatherproof
1. Weatherproof Telecom Cabinet
The outdoor telecom cabinet ET9090230-EQ-2-313-6 has been designed to house sensitive electronic equipments for use in communications.The cabinet is configured with fully locking doors to both front and rear faces allowing for access from both sides of the electrical equipment being integrated. The construction of the cabinet consists of a dual skinned, thermally insulated chamber for maximum protection against solar gain and ambient temperature.
2. Weatherproof Telecom Cabinet Features
Front and rear door to access the inside equipment
Anti corrosion powder coating
Standard 19“ rack for installation
IP55
Short construction period, less land occupation, broader application and lower construction cost
High integration, compact structure, easy installation and migration on later stage
High-performance cooling solution
Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device
3.Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: W×D×H 900×900×2300mm |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack | |
| Door | With one front door and one back door, and anti-theft three point lock for outdoor cabinet (support padlock). | |
| Material | Galvanized steel, double wall with insulation | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | air conditioner and fans |
| Lighting | LED lamp | 48V LED lamps |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
4.Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | PC |
(1) External Dimension: W×D×H 900×900×2300mm (2) One compartment (3) With one front door and one back door, and anti-theft three point lock for outdoor cabinet (support padlock). (4) Galvanized steel; double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.
|
| 2 | Air Conditioner | 2 | PC |
Cooling capacity: 2000W. Power Supply: AC220V, 50Hz. One installed on front door, the other on back door. |
| 3 | Auxiliary Direct Ventilation Fans | 2 | PC | DC48V |
| 4 | LED Lamp | 2 | PC | DC48V |
| 5 | LED Lamp Switch | 2 | PC | One for controlling LED lamp on/off |
| 6 | Power Distribution Unit | 1 | PC |
Grade B Lightning Proof AC Input: 63A/2P×1; AC Output: 16A/1P×4; DC Output: 16A/1P×4 Input Voltage: AC220V, 50Hz |
| 7 | Package | 1 | PC | Wooden Case |
5.Cabinet Structure
(1) External Dimension W×D×H 900×900×2300mm
(2) One compartment;
(3) totally two doors; with special lock for outdoor cabinet (support padlock)
(4) Material: galvanized steel; double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.

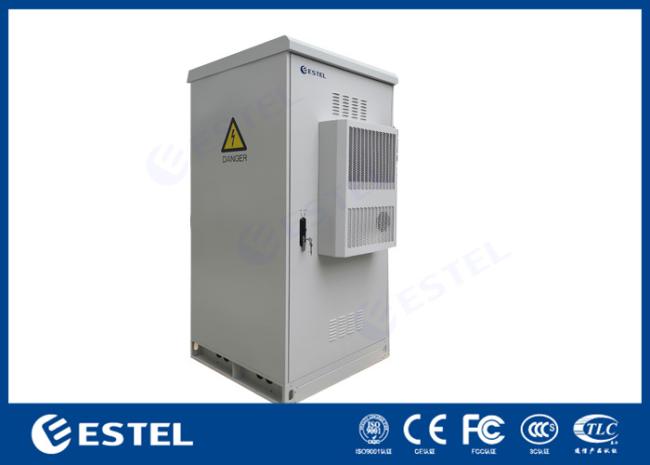

6.Cabinet Pictures
7.LED Lamp And Door Sensor
LED lamp and door sensor are installed at the top of the cabinet.
8. Factory Introduction
Factory Size: 3000 Square Meters
No. of Main Production Lines: 5
Contract Manufacturing: OEM Service Offered, Design Service Offered, Buyer Label Offered
Production Experience: 13 Year
