1750mm 32U Telecom Outdoor Cabinet Floor Mount Fan Cooling
1750mm 32U Telecom Outdoor Cabinet Floor Mount Fan Cooling
1. Cabinet Overview
The outdoor communication cabinet refers to a cabinet made of metal or non-metal material, directly under the influence of the weather, and does not allow unauthorized operators to access. Base station equipment, power supply, battery, temperature control equipment, transmission equipment and other ancillary equipment can be installed in the cabinet, which can provide reliable mechanical and environmental protection for the normal operation of internal equipments.
2. Features
- Material: galvanized steel or as customer's requirements
- Cooling System: Fans (Air conditioner or Heat exchange)
- Protection Level: IP55 ,Waterproof,dust proof.
- Sealed by import seal belt, waterproof design realize the efficient protection
- Machine Protection Solution: the cabinet is designed specifically to protect it from human damage, earthquake and other damages.
3. Technical Data Sheet
| Model | |
| Dimension | W×D×H 750×750×1750mm |
| 19” space | 32U |
| Door | One front door |
| Lock | Anti-theft three point lock for outdoor cabinet(support padlock) |
| Material | Galvanized steel; single wall with thermal insulation |
| Color | RAL7035 grey |
| Installation method | Floor mount |
|
Cooling |
Fans |
| Ventilation system | Two AC220V fans with one temperature controller |
| Illumination | AC220V LED lamp |
| LED Lamp Switch | Used for controlling led lamp on/ off |
| Working temperature | -40°C～+75°C |
| Ingress Protection | IP55 |
4. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1)External Dimension W×D×H 750×750×1750mm. (2)One compartment: including 19” rack. (3) With one front door, with three point lock for outdoor cabinet. (4) Material: galvanized steel, single wall with thermal insulation. (5) Floor installed. |
| 2 |
Air Conditioner (optional) |
1 | Set |
Air conditioner Power supply: AC220V 50Hz; Cooling Capacity: 1500W |
| 3 | Fan | 2 | Set | 220VAC |
| 4 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
| 5 | LED Lamp | 1 | PC | 220VAC |
| 6 | Package | 1 | Set | Wooden Case |

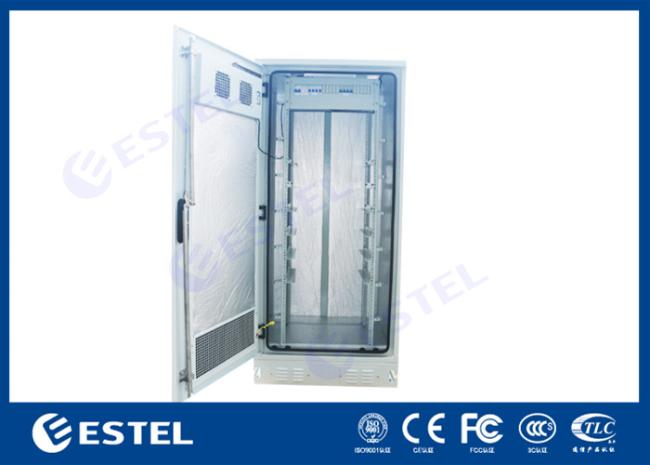

5. Cabinet Picture

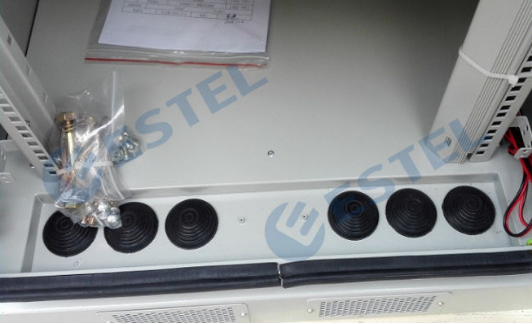

6. Cabinet inside Picture

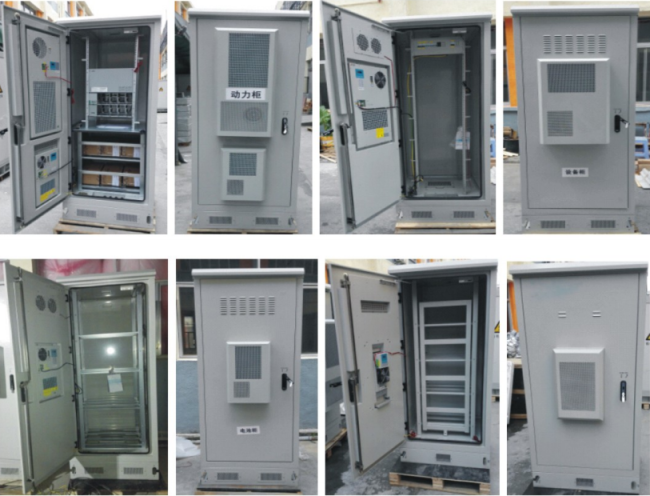

7. More cabinet Pictures
8. Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
