Anticorrosive Aluminum Two Bay Outdoor Telecom Cabinet 19 Inch Rack Enclosures
Anticorrosive Aluminum Two Bay Outdoor Telecom Cabinet 19 Inch Rack Enclosures
1. Application Scope of Outdoor Telecom Cabinet
The outdoor communication cabinet is mainly used in telecommunication base station, such as 4G/5G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
Besides, the cabinet is also used in bank, power, industry, radio&television, education, security monitoring, automatic system and research institute etc
2. Features of Outdoor Telecom Cabinet
2.1 The cabinet is dustproof, sunproof and rainproof, used in outdoor environment.
2.2 The cabinet cooling uses AC220V fans.
2.3 Use aluminum material, suitable for high salinity and high moisture easide environment.
2.4 Including two front doors and two back doors, easy to installation and maintenance.
2.5 IP grade: IP55
3. Technical Specs of Outdoor Telecom Cabinet
| Item | Parameter |
| Cabinet Model | ET11370145 |
| External Dimension | W×D×H1134×700×1450.5mm |
| Material | Aluminum 5052, single wall, 2mm thickness |
| Door | Two front doors and two back doors |
| Lock | Anti-theft three point lock for outdoor cabinet (support padlock) |
| Heat Insulation | 20mm PEF |
| Coating | Anti-corrosion outdoor powder Coating |
| Color | Grey RAL7035 |
| IP grade | IP55 |
| Fan | AC220V, 12038,4 PCS |
| Door Hinge | Zinc alloy 201-1 |
| Fastener | Screw GB9074.4 |
| Insulation setting | Bakelite on the bottom |
| Equipment installation | 19 inch rack and tray |
| Operating temperature | -40°C ~ + 75°C |
| Air pressure | 62kPa ~ 101kPa (similar to 0m ~ 5000m altitude) |

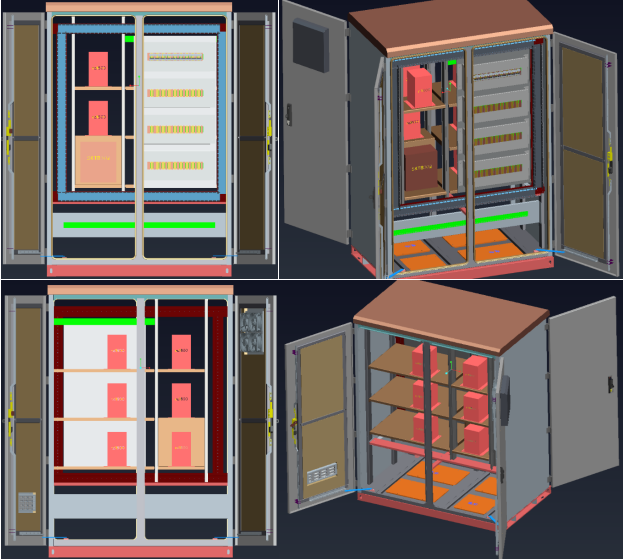

4. 3D Drawing

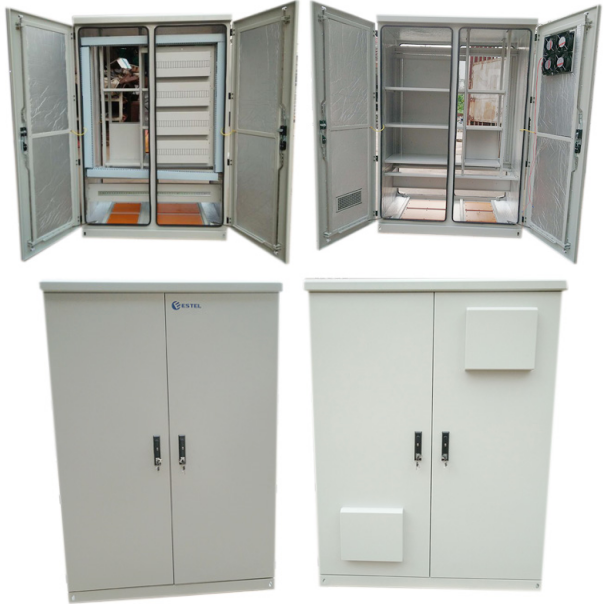

5. Cabinet Picture
7. Our Factory and Other Cabinet Photos
