240kw DC Electric Car Charging Station New Energy Vehicle EV Car Charger With Double Guns
240kw DC Electric Car Charging Station New Energy Vehicle EV Car Charger with Double Guns
240kw DC Electric Car Charging Station New Energy Vehicle EV Car Charger Product Description
DC charging pile is a device used to charge electric vehicles, which can charge the battery of electric vehicles at high speed.
Unlike AC charging stations, DC charging stations can transfer electricity directly to the battery of the electric vehicle, so it
can charge faster.
DC charging piles can be used not only to charge personal electric vehicles, but also for charging stations in public places.
In the popularization of electric vehicles, DC charging piles also play a crucial role, which can meet the needs of users for fast
charging and improve the convenience of using electric vehicles.
240kw DC Electric Car Charging Station New Energy Vehicle EV Car Charger Product Parameters
| Item Number | EDC360-240FC | |
|
Power input |
Input rating | AC440V 3ph Wye 350A max. |
| Number of phase / wire | 3ph / L1, L2, L3, N, PE | |
| Power factor | >0.98 | |
| Current THD | <5% | |
| Efficiency | >95% | |
|
Power output |
Output power | 240kW Max (2gun) |
| Output rating | DC200V-1000V DC | |
| Output accuracy | <0.5% (voltage and current) | |
| Protection | Protection | Over current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Over temperature, Ground fault |
| User interface & control | Display | 10” touch screen |
| Support language | English (Other languages available upon request) | |
| Charge option | Charge options to be provided upon request: Charge by duration, Charge by energy, Charge by fee | |
| Environmental | Operating temperature | -35℃to+50℃ |
| Storage temperature | -40 ℃to+70℃ | |
| Humidity | < 95% relative humidity, non-condensing | |
| Altitude | Up to 2000 m (6000 feet) | |
| Mechanical | Enclosure type: | NEMA Type 3R |
| Enclosure Protection against External Mechanical Impacts | IK10 according to IEC 62262 | |
| Cooling | Air forced | |
| Charging cable length | 5m | |
| Dimension (W*D*H) mm | 1022*770*1720mm | |
| Weight | 600kg |
240kw DC Electric Car Charging Station New Energy Vehicle EV Car Charger Product Feature

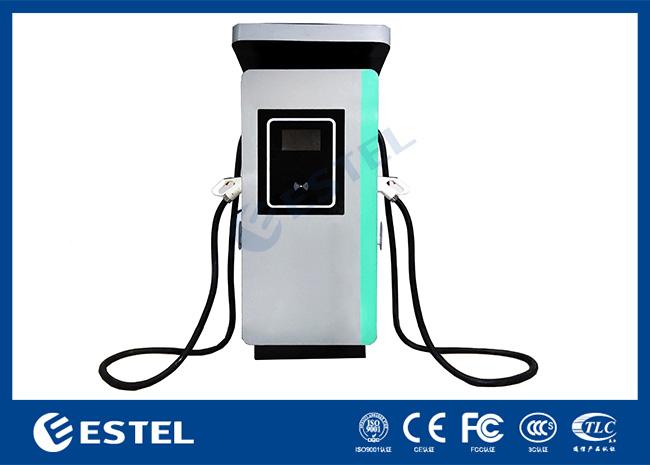

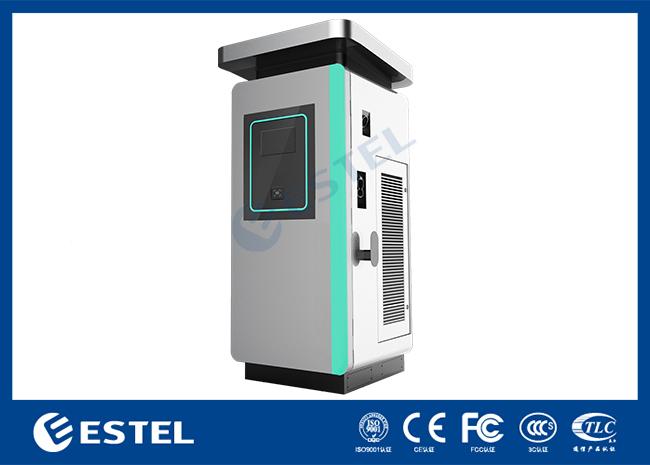

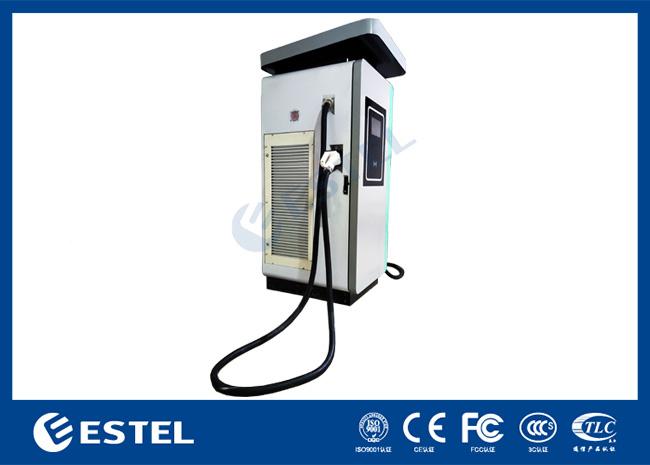

Product Display

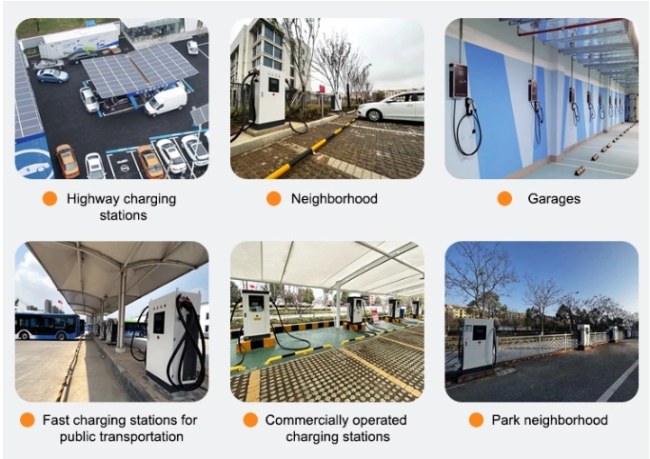

240kw DC Electric Car Charging Station New Energy Vehicle EV Car Charger Application
DC charging piles are widely used in public charging stations, highway service areas, commercial centers and other places,
and can provide fast charging services for electric vehicles.
With the popularization of electric vehicles and the continuous development of technology,
the application range of DC charging piles will gradually expand.

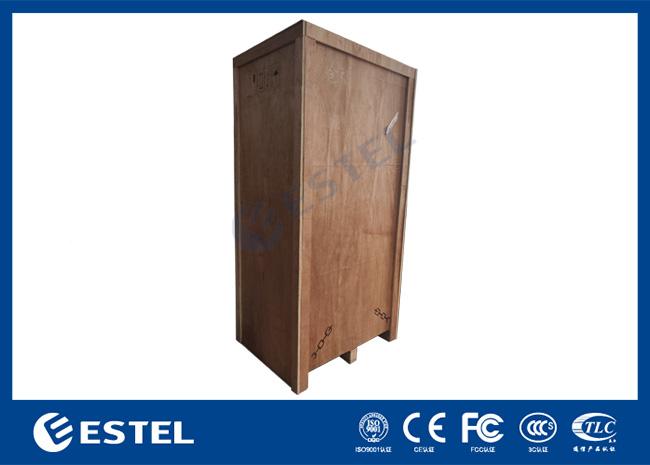

Package
Wooden case
