Four Shelves Outdoor Battery Cabinet IP55 Waterproof With Emergency Cooling
IP55 Waterproof Four Shelves Outdoor Battery Cabinet, with DC Air Conditioner and Emergency Cooling
Four Shelves Outdoor Battery Cabinet
ET150100215-BA
Summary
Outdoor Battery Cabinet is designed to house a variety of batteries and provide protection from vandalism, rain, snow and dripping water. Outdoor Battery Cabinet can be made from galvanized steel, aluminum or stainless steel according to different demand. Air conditioner is installed on cabinet for keeping a stable temperature inside cabinet so as to increase service life of batteries. Outdoor Battery Cabinet provide a secure thermally managed environment for backup battery systems for telecommunications and cable applications.
Features
● IP55 cabinet, walls and roof in double steel with high quality insulation
● LED light for illumination inside the cabinet
● DC air conditioner is installed in the front door for easy access
● Include emergency ventilation system
● Sufficient cable inlets in bottom of cabinet
● Door stopper to hold door open at service
● Grounding bar
● High-performance cooling solution
● Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device
● Full protection: door sensor, smoke sensor, water sensor, temperature & humidity sensor and tilt & shock sensor
● Professional outdoor anti- corrosion powder coating, strong weather resistance
Technics
● The cabinet material is high quality steel plate, which is made by the world's leading AMAD CNC equipment, with exquisite workmanship and precise size. The main frame of the cabinet is made by welding, ensuring the whole cabinet is strong and durable. The internal structure and all kinds of accessories are assembled in the way of assembling, and the application is flexible. The cabinet body and its internal accessories are all pretreated by acid washing and phosphating, and then the special molding powder is used for electrostatic spraying, so as to prevent corrosion and rust.
Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet Body | Model | ET150100215 - BA |
| Size | External Size: 2150mm×1500mm×1000mm(H×W×D) | |
| Component | The whole cabinet is composed of three parts: top cover, cabinet body and base. The installation method is floor mounted. | |
| Material | Sandwich structure steel panel with insulation | |
| Structure |
(1) Double wall, with insulation (2) One front door, hidden zinc alloy hinge (3) Outdoor special steel lock, lock cylinder assembled with protective cover, lock body assembled with four-point lock device (4) Door stopper / wind lock is installed on the inside of the cabinet door (5) Door with seal rubber strip, waterproof and dustproof (6) Four battery shelves inside cabinet (7) Cable inlets at the bottom of cabinet |
|
| Color | Grey or custom made | |
| Ingress Protection | IP55 or custom made | |
| Working Temperature | -40°C～+75°C | |
| Cooling Method | Compressor Air Conditioner | 48VDC 600W |
| Emergency Cooling Fan | 48VDC | |
| Monitoring | Monitoring Unit | / |
| Smoke Sensor | Monitor the smoke status inside the cabinet and provide real time alarm. | |
| Vibration Sensor | / | |
| Water Sensor | / | |
| Door Sensor | When unlawfully opened, provide real-time alarm. | |
| Temperature & Humidity Sensor | / | |
| Other | / | |
| Other | Illumination | LED light, 48VDC |

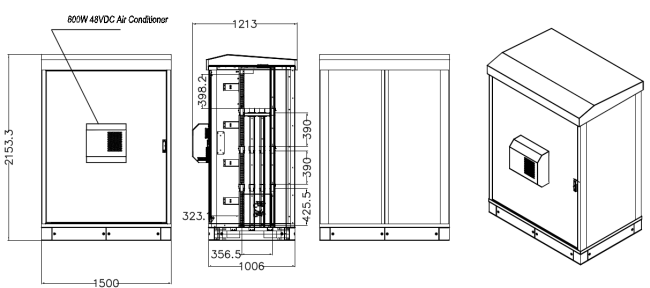

Dimension Diagram
Pictures
