Four Point Lock Outdoor Power Cabinet , Galvanized Steel Outdoor Electrical Enclosure
IP55 Outdoor Power Cabinet with One Battery Shelve and 19" Rack, 48VDC Air Conditioner Cooling
IP55 Outdoor Power Cabinet (One Battery Shelf)
ET7272188-UP
Introduction
ET7272188-UP outdoor power cabinet has been specifically designed with today's distributed network architecture to provide outdoor equipments with reliable DC power. These cabinets offer a cost-effective cooling solution. The sealed cabinet, with its reliable temperature control design, assures reliable system running in demanding outdoor environments. Space is available in cabinet to hold telecom equipments and battery. The outdoor power cabinet is designed to protect equipments from external threats in all climates.
The cabinet is mainly used in wireless communication base stations, including a new generation of 4G / 5G systems, communications / network integrated services, access / transmission switching station, emergency communications / transmission etc.
Features
● Sealed design: IP55 protection class protects equipment from water and dust, while maintaining a cool operating environment
● High-performance cooling solution
● Double walls with thermal insulation
● Anti-theft four-point lock mechanism on door
● 19”/21” standard mounting rack
● Surface Treatment: deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification
● Professional outdoor anti- corrosion powder coating, strong weather resistance
● Full protection: door sensor, smoke sensor, water sensor, temperature & humidity sensor and tilt & shock sensor, optional. Working together with environment monitoring unit to send alarms to remote monitoring center.
● Cable entry is at bottom of cabinet as standard, with side and roof entry options.
Specifications
| Configuration | Item | Technical Parameter |
| Cabinet Body | Model | ET7272188-UP |
| Size | External Size: 720mm×720mm×1883mm(W×D×H) | |
| Component | The whole cabinet is composed of three parts: top cover, cabinet body and cabinet base. The installation method is concrete mounted. | |
| Material | Galvanized steel, double walls, with insulation: 20mmPEF. | |
| Structure |
● One front door, hidden zinc alloy hinge ● Outdoor special steel lock, lock cylinder assembled with protective cover, lock body assembled with four-point lock device ● Door stopper / wind lock is installed on the inside of the cabinet door ● Door frame with seal rubber strip, attached to the inner side of the door, waterproof and dustproof ● Include standard 19“ rack and trays for installing equipments, one battery shelf for installing batteries. ● Cable inlets at the bottom of cabinet |
|
| Surface Treatment | Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification | |
| Color | Grey | |
| Ingress Protection | IP55 or custom made | |
| Working Temperature | -40°C～+75°C | |
| Cooling Method | Compressor Air Conditioner |
Cooling Capacity: 2000W Power Supply: 48VDC |
| Heat Exchanger | / | |
| Peltier Air Conditioner | / | |
| Fan | / | |
| Monitoring | Monitoring Unit | Remotely monitoring conditions inside base station cabinet |
| Smoke Sensor | Monitor smoke status inside the cabinet and provide real time alarm. | |
| Vibration Sensor | Monitor vibration status inside the cabinet and provide real time alarm. | |
| Water Sensor | Monitor flood status inside the cabinet and provide real time alarm. | |
| Door Sensor | Monitor door open status inside the cabinet and provide real time alarm. | |
| Temperature & Humidity Sensor | Monitor temperature and humidity inside the cabinet and provide real time alarm. | |
| Other | / | |
| Other | Illumination | LED light, 48VDC |

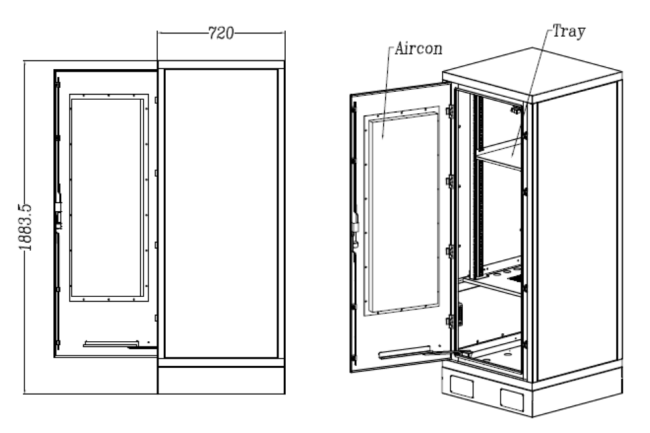

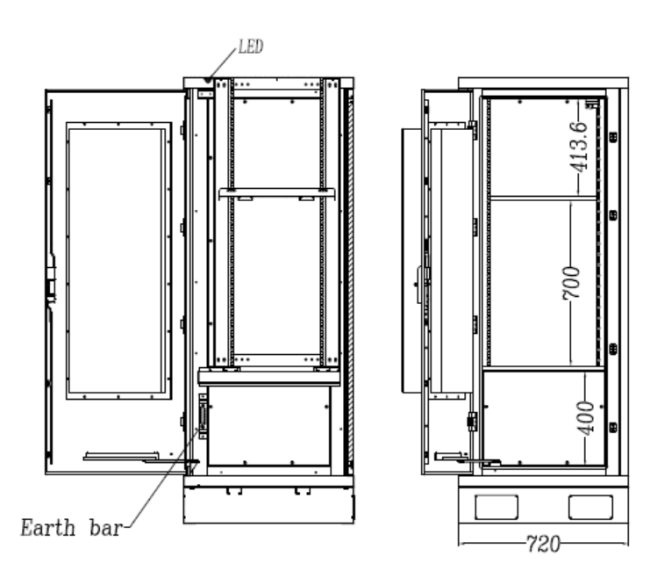

Dimension Diagram
Pictures
