40U Steel Metal Outdoor Communication Cabinets Grey RAL 7035 Color
40U Steel Metal Outdoor Communication Equipment Cabinet With Air Conditioner WaterProof
1. Brief Introduction
The outdoor integrated power supply cabinet provide a complete set of solutions for outdoor working environment and safety management of communication base station. It integrates the functions of system power supply, AC/DC power distribution, environmental monitoring, temperature control andc grounding for lightening, etc. Additionally, it provides the equipment installation space, and meets the requirements of rapid establishment.
In order to realize the environment protection concept “green communication”, ESTEL focuses on environment protection and energy saving. We use all our resources and experience to contribute to environment protection.
To choose outdoor temperature control energy saving solutions is a system project. As a professional supplier in temperature control energy saving field, ESTEL accumulates lots of technology and application experience. On one hand, we continuously research and develop high energy efficient “green” air conditioner for outdoor temperature control energy saving; on the other hand, we provide multiple integrated solutions for temperature control energy saving of outdoor telecom equipments, to fully realize optimum control of outdoor temperature control energy saving system.

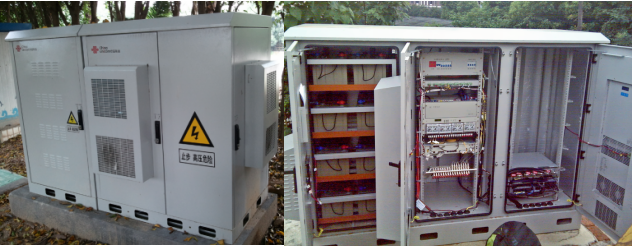

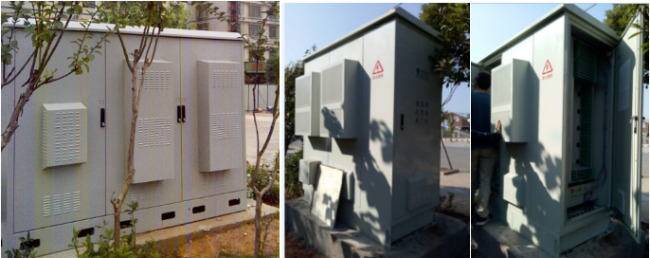

2. Base Station Construction Development
3. Product Advantage
4. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: W×D×H 900×900×2100mm(19” 40U) |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack | |
| Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Sandwich structure panel, galvanized steel, double wall | |
| Heat Insulation | There are heat insulation between inner wall and outer wall. | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | AC220V 1.5KW air conditioner and DC48V fans |
| Lighting | LED lamp | 48V LED lamps (immovable), with protective circuit breaker |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
6. Application
Used in base station.
