Custom Base Station Cabinet Two Compartment 14U Space Height Outdoor

Price Negotiable
Price: 358-2143 usd
MOQ: 1
Delivery Time: 15-20 working days
Brand: ESTEL
Product Description

 Custom Made Outdoor Two Compartment Telecom Cabinet Galvanized Steel IP55 14U

Configuration List


No. Item Quantity Unit Specs
1 Outdoor Two Compartment Cabinet 1 Set

(1)External Dimension: W×D×H 1450×650×1100mm
Internal Dimension:
left compartment W×D×H 300×600×600mm
right compartment W×D×H 600×600×600mm
(2)Two compartments , left compartment includes
one tray, right compartment includes 19" rail
(3)With two front doors,and anti-theft three point lock
for outdoor cabinet (support padlock), one master
key that can open all doors of cabinet
(4)Materail: Single layer 2.0mm SPCC galvanised
steel;
anti-corrosion powder coating, RAL7035 EMC
protection
(5)Including grounding bar
(6)Including cable entry
(7)IP Grade: NEMA 4X
(8) including cabinet plinth

2 Fan 4 Set AC110V, 60Hz; 2 fans for each door
3 Package 1 Set Wooden Case



Working Condition:

Temperature:
Working Temperature: -20°C ~ 55°C
Storage Temperature: -40°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C


Relative Humidity:  5% ~ 100%

Air Pressure: 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)

Solar Radiation Intensity:  1124 × (1±5%)W/m2

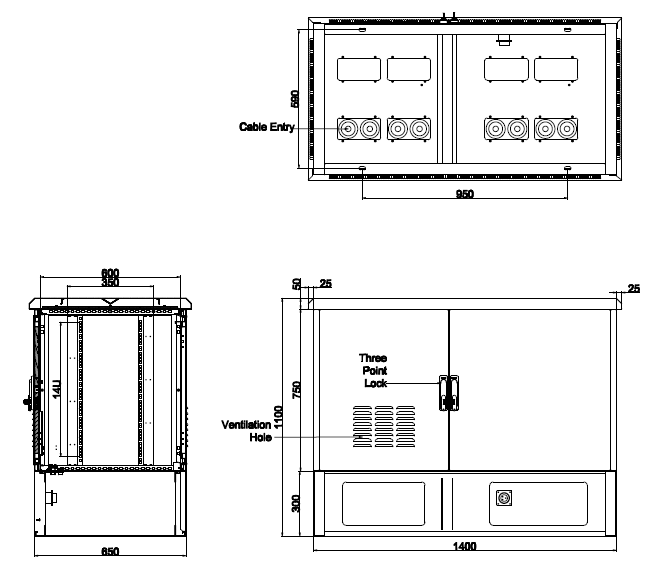

Dimension Drawing
Cabinet External Size : 1450×650×1100mm (W×D×H),
Cabinet Internal Size : left compartment 300×600×600mm(W×D×H)
right compartment 600×600×600mm(W×D×H)

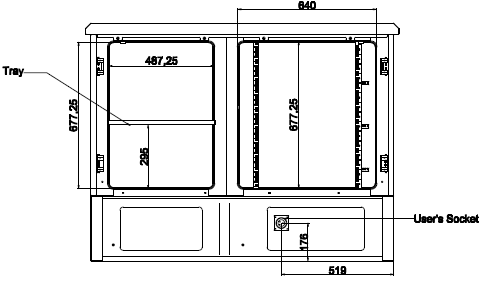

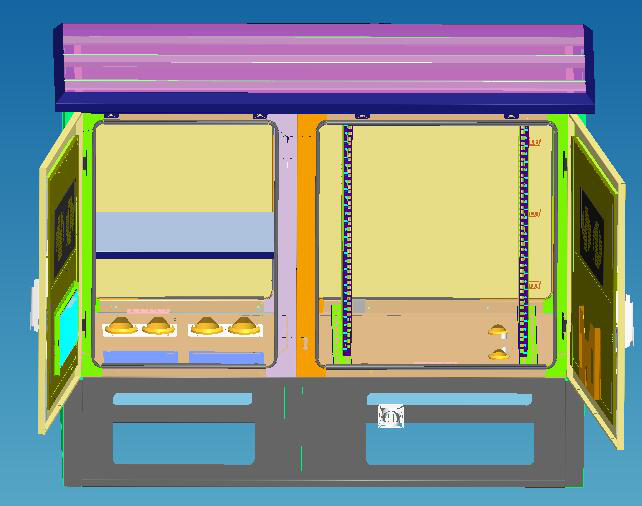

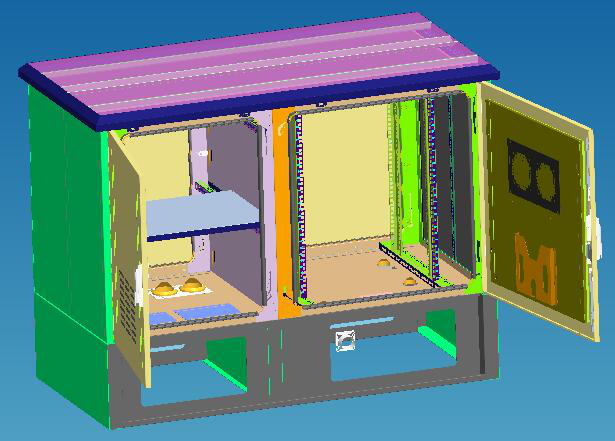

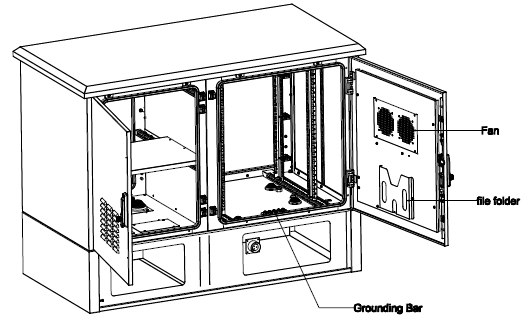

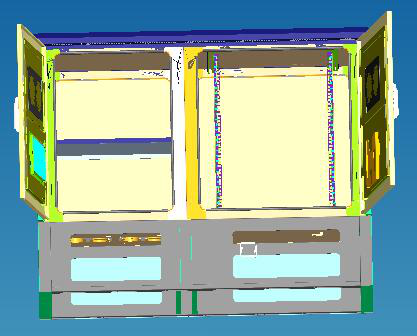

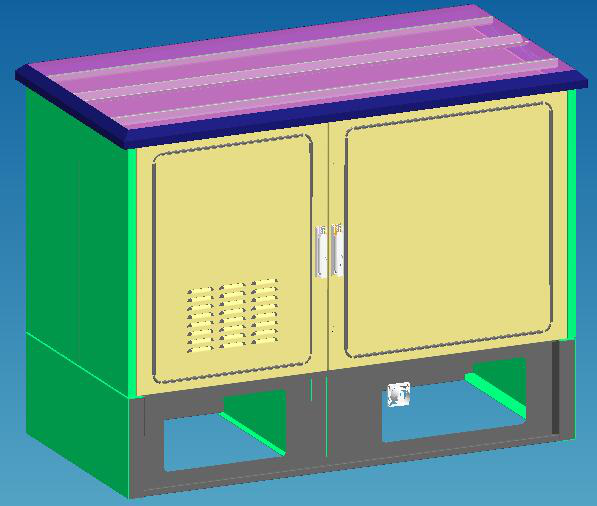

Cabinet Layout
