Temperature Control Steel Outdoor Telecom Cabinet 19 Inch For Base Station
Temperature Control Steel Outdoor Telecom Cabinet 18U 19 Inch Rack Small Box For Base Station
1. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: W×D×H 650×650×1050mm(Including base height) |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack | |
| Door | With one front door, and anti-theft lock for outdoor cabinet. | |
| Material | Galvanized steel, double wall with insulation. | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | Air conditioner and fans |
| Lighting | LED lamp | 48VDC LED lamps |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
2. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | PC |
External Dimension: W×D×H 650×650×1050mm(Including base height) |
| 2 | Air Conditioner | 1 | PC |
Cooling capacity: 500W Power Supply: AC220V, 50Hz. |
| 3 | Fan | 1 | PC | DC48V, on the top |
| 4 | Door Sensor | 2 | PC | One is used for controlling the LED lamp on/off, another one is used for open door alarm |
| 5 | LED Lamp | 1 | PC | DC48V,used for illumination inside the cabinet. |
| 6 | Package | 1 | PC | Wooden Case |
3. Application
The ET6565105-EQ Outdoor Telecom Equipment Cabinet is mainly used in wireless communication base station, such as 4G/5G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
4. Features
(1) The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
(2) Cabinet cooling: fans and air conditioner. (Other cooling option: heat exchanger).
(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlet individually for power cable, signal cable and optical cable.
(4) All the cables used in the cabinet are made from flame retardant materials.

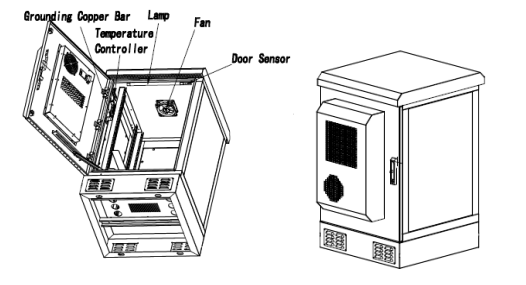

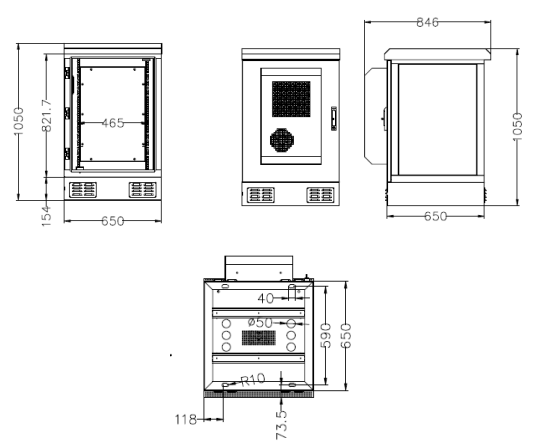

5. Cabinet Dimension
External Dimension: W×D×H 650×650×1050mm (19” rack, 18U)

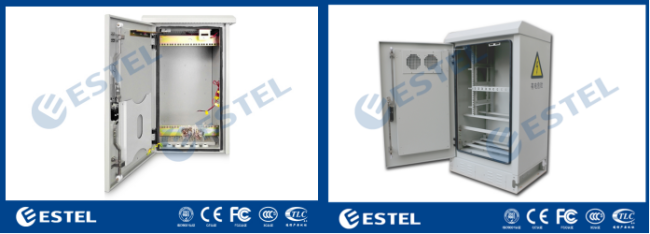

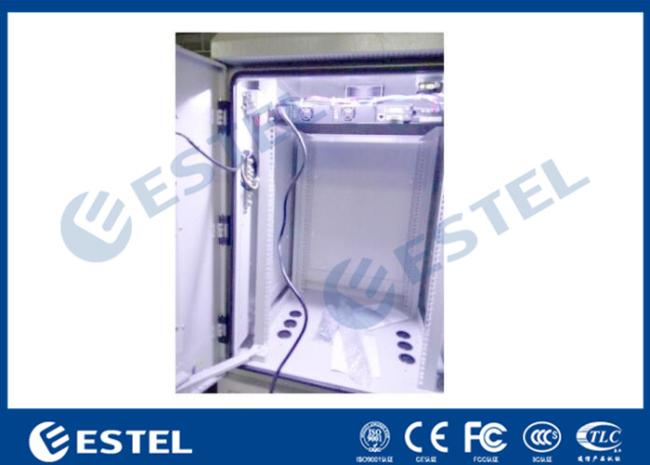

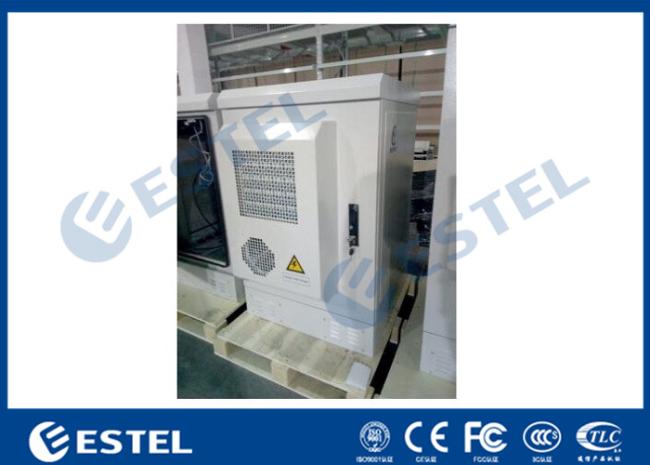

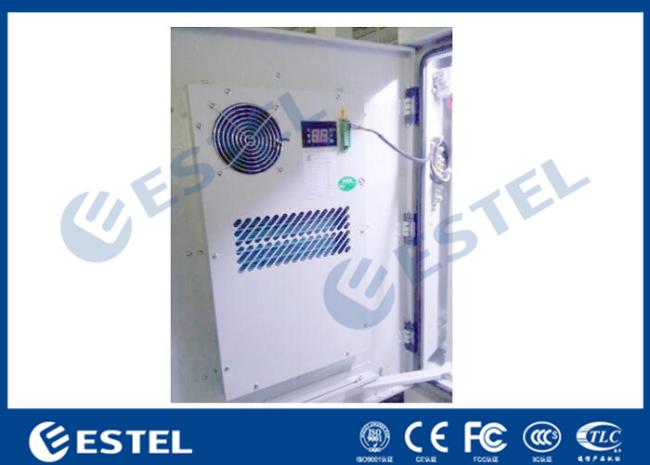

6. Cabinet Picture
7. We can custom made based d on customers’ actual demand.

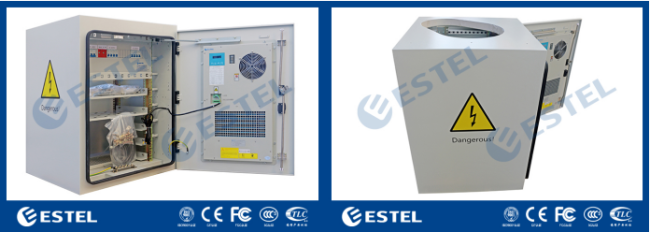

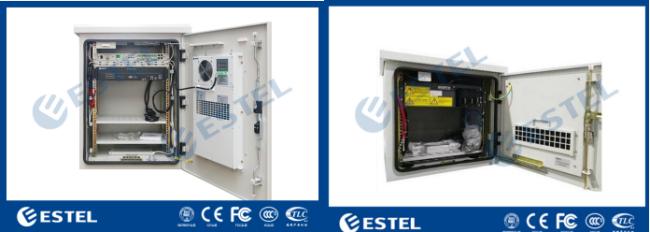

Actual case:
