Two Battery Shelf Outdoor Power Supply Cabinet One Front Door With Two Air Conditioner
Outdoor Power Cabinet With Two Battery Shelf / Outdoor Power Supply Cabinet With Two Air Conditioner
1. Application
The ET9090213-UP-2A Outdoor Power Supply Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
2. Features
(1) The cabinet is dustproof, sunproof and rainproof, used in outdoor environment.
(2) Cabinet cooling: air conditioner, heat exchanger, fan(optional).
(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlets individually for power cable, signal cable and optical cable.
(4) All the cables used in the cabinet are made from flame retardant materials.
(5) The cabinet includes grounding bar.
(6) Include door stopper.
3. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: W×D×H 901×901×2129mm |
| Layout | 1 compartment | |
| Equipment Installation Method | Upper part: 19” rack; lower part: two battery shelves. | |
| Door | With one front door, and anti-theft four point lock for outdoor cabinet. | |
| Material | Galvanized steel, sandwich structure panel, double wall with insulation. | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | air conditioner and fan |
| Lighting | LED lamp | 48VDC LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
4. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Power Supply Cabinet | 1 | PC | External Dimension: W×D×H 901×901×2129mm |
| 2 | Air Conditioner | 1 | PC |
Cooling Capacity: 1500W; Power Supply: 220VAC, 50Hz. Installed on upper part of door. |
| 3 | TEC Air Conditioner (Peltier) | 1 | PC |
Cooling Capacity: 300W; Power Supply: 48VDC. Installed on lower part of door. |
| 4 | Fan | 2 | PC | 48VDC |
| 5 | Environment Monitoring Unit | 1 | PC | 19”, 1U, DC48V, include SNMP communication port |
| 6 | Door Sensor | 1 | PC | |
| 7 | Smoke Sensor | 1 | PC | |
| 8 | Water Sensor | 1 | PC | |
| 9 | Temperature and Humidity Sensor | 1 | PC | |
| 10 | Tilt and Shock Sensor | 1 | PC | |
| 11 | LED Lamp | 1 | PC | 48VDC |
| 12 | LED Lamp Switch | 1 | PC | Control LED lamp on/off |
| 13 | Power Distribution Unit | 1 | PC |
Grade B Lightning Proof AC Input: 63A/2P ×1; AC Output: 16A/1P×4; DC Output: 16A/1P×4 Input Voltage: AC220V, 50Hz. |
| 14 | Package | 1 | PC | Wooden Case |

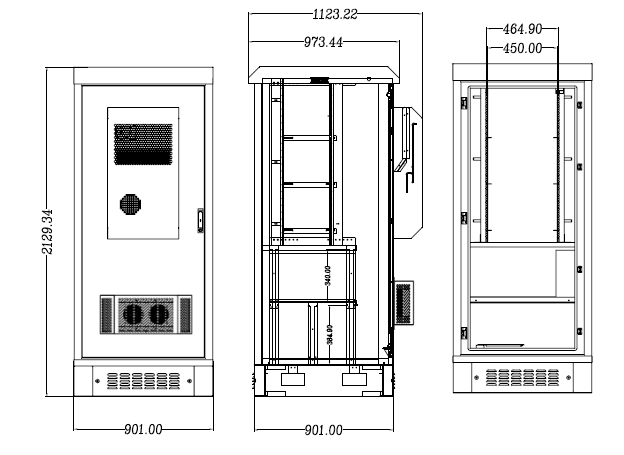

5. Cabinet Dimension

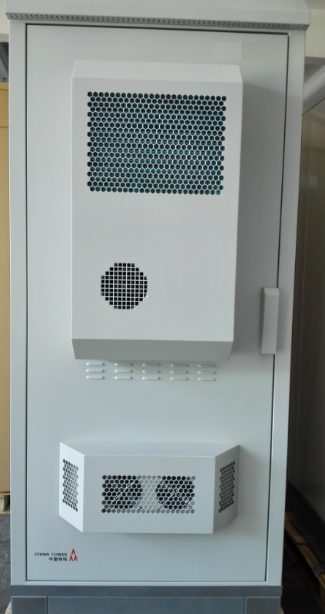

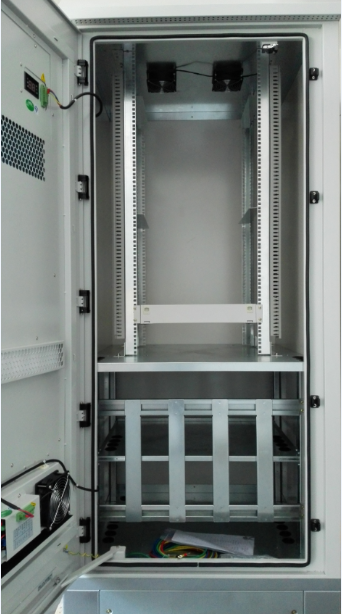

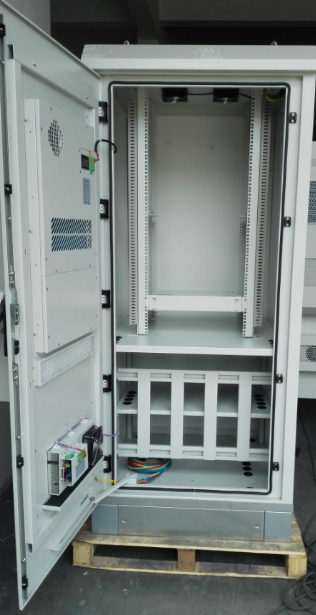

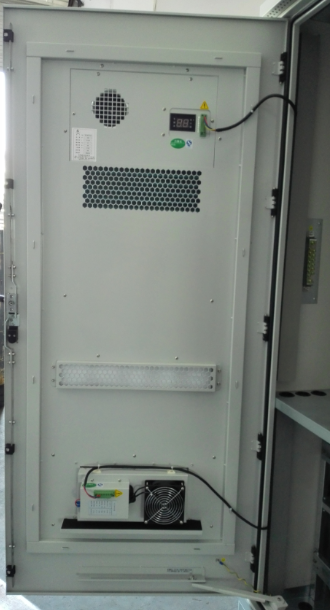

6. Cabinet Picture
