Double Wall Outdoor Power Cabinet 15U Rack Air Conditioner Cooling With One Battery Shelf
Price:
715-4286 usd
MOQ:
1PC
Delivery Time:
15 days
Brand:
ESTEL
Product Description
Double Wall Outdoor Power Cabinet With One Battery Shelf 15U rack Air Conditioner Cooling Telecom Cabinet

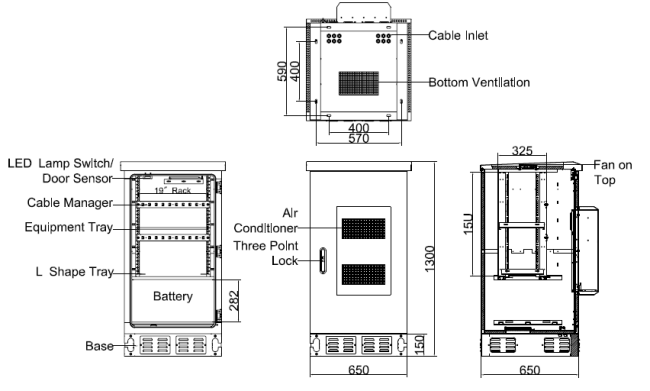

1. 2D Drawing ![]()
2. Technical Parameter
| Item | Type | Technical Parameter |
| Structure | Dimension | External Size H*W*D 1300*650*650mm |
| Layout | One compartment,the upper part for installing 19” equipment, the lower part for installing battery | |
| Equipment Installation Method | 19” rack, battery tray | |
| Door | With one front door , and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate | |
| Heat Insulation |
There are heat insulation between inner wall and outer wall. The
insulation material is 20mm PEF. |
|
| Structure | Assembled | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | Air conditioner and fan |
| Lighting | LED lamp | 220VAC 60Hz LED lamps |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
3. Accessory list
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension H×W×D 1300×650×650mm ; (2) One compartment: the upper part is 19" rack, the lower part is one battery shelf. (3) With one front door, with three point lock for outdoor cabinet. (4) Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate; insulation: 20mm PEF. |
| 2 | Air Conditioner | 1 | Set |
Cooling Capacity: 500W; Power Supply: 220VAC, 60Hz |
| 3 | Fan | 1 | Set | Ac220V 60Hz |
| 4 | DC Power Supply | 1 | Set |
Input: 110/220VAC 60Hz; Output: 12VDC, 50A, 600W |
| 5 | Door Sensor | 1 | PC | For open door alarm |
| 6 | LED Lamp Sensor | 1 | PC | For controlling LED lamp on/off |
| 7 | LED Lamp | 1 | PC | DC48V |
| 8 | Package | 1 | Set | Wooden Case |
4. Application
The ET6565130-UP Outdoor Cabinet is mainly used in wireless communication base station, such as communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
5. Features
(1) The cabinet is dustproof, sunproof and rainproof, used in outdoor environment.
(2) The equipment compartment and battery compartment cooling: fan and air conditioner.
(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.
(4) All the cables used in the cabinet are made from flame retardant materials

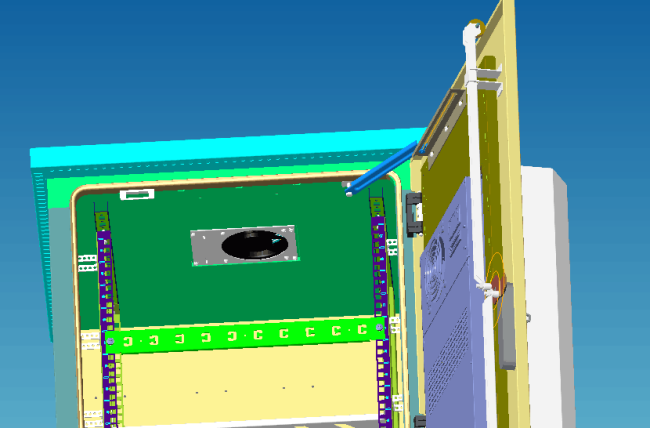

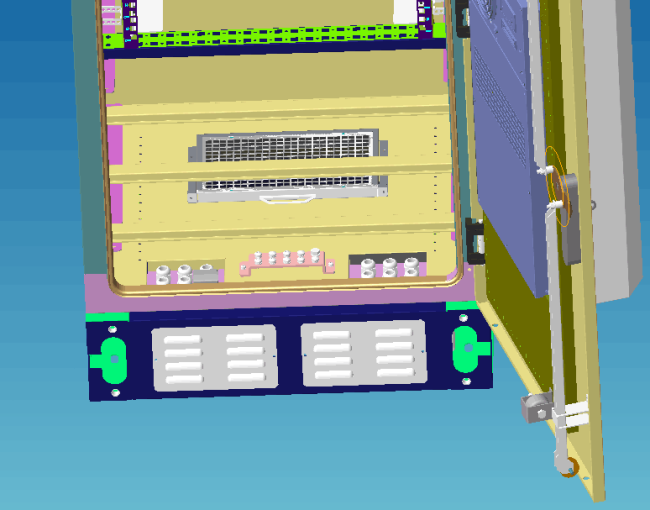

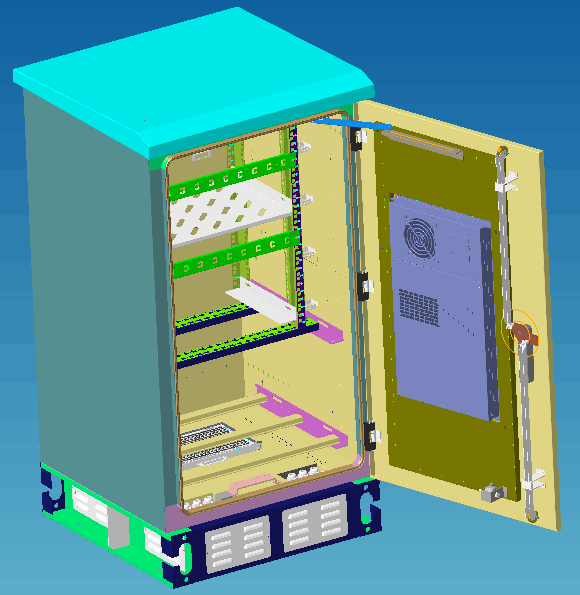

6. 3D Drawing
