Single Wall Steel Outdoor Pole Mount Cabinet Power Distribution Small Box IP55
Single Wall Steel Outdoor Pole Mount Cabinet / Power Distribution Small Box
Product description
Specification
Dimension: W600*D450*H800mm (communication cabinet size can be customized)
Internal Capacity: 15U, 19 Inch Rack.
Cooling : fan (other options: air conditioner or heat exchanger)
Internal Fittings:
(1) 2 pieces of fan
(2) 1 piece of LED lighting tube
(3) 1 piece of 8 port socket

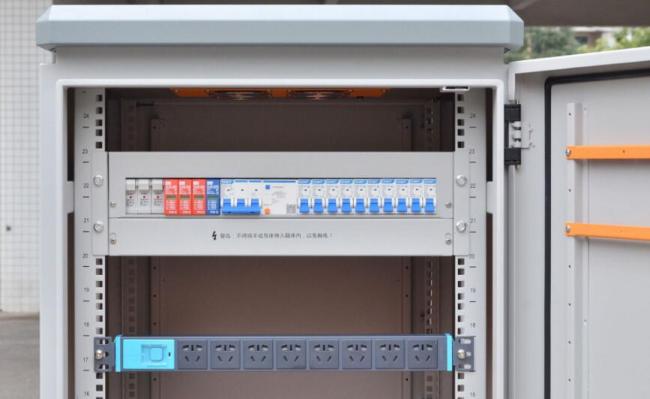

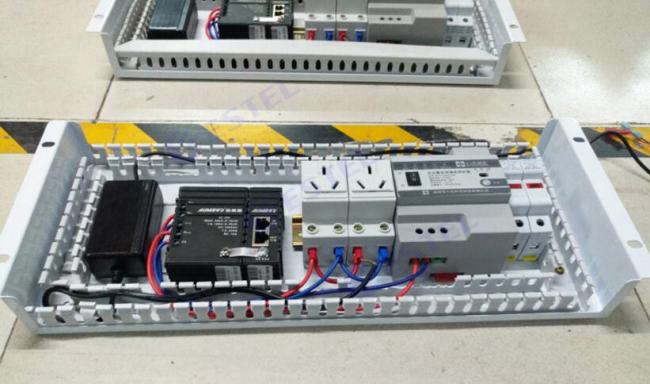

(4) 1 power distribution unit (can be custom made according to client’s requirement)
Internal Features:
Protection Grade: IP55
Cabinet Material: Galvanized steel, single wall, 1.5mm thickness
Mount Method: pole mount
Package: Wooden Box.
Wooden Box Size: L720*W600*H1000mm
Working Conditions
| Item | Type | Technical Parameter |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |

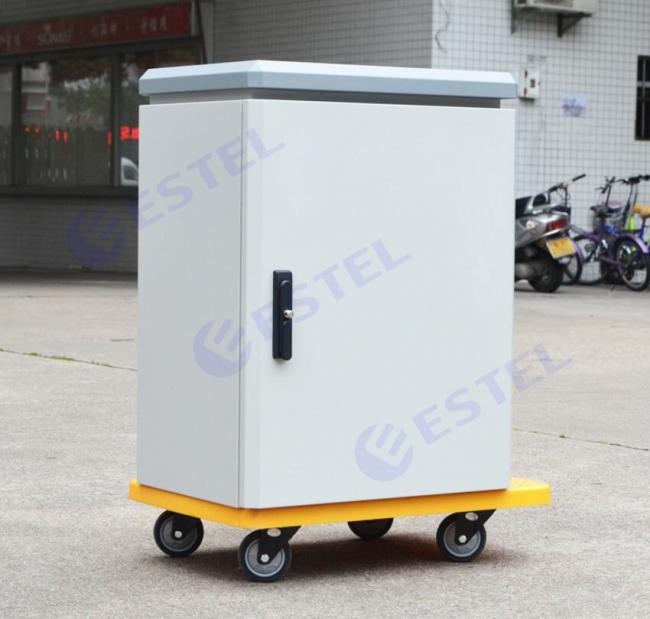

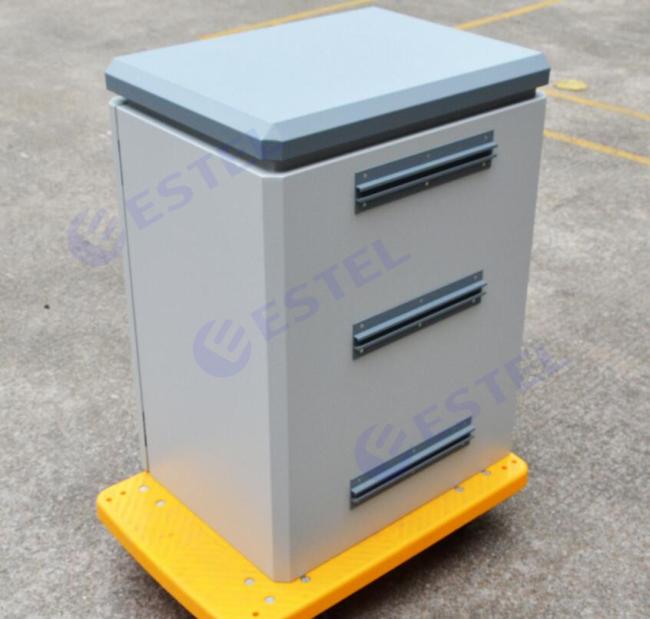

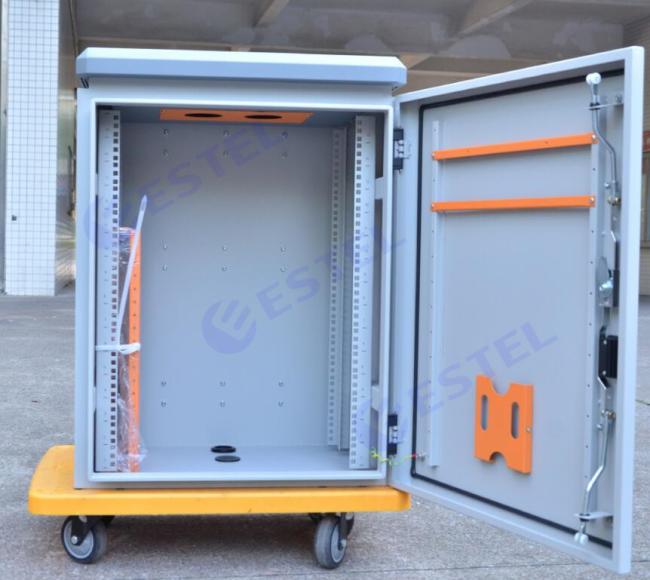

Product Dispaly
Package
Shipping
