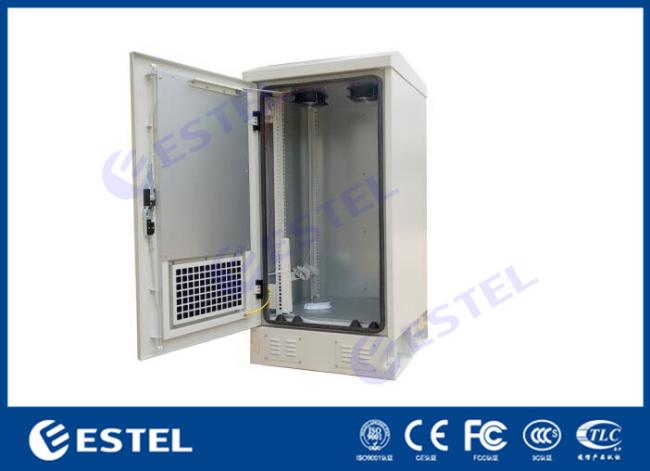

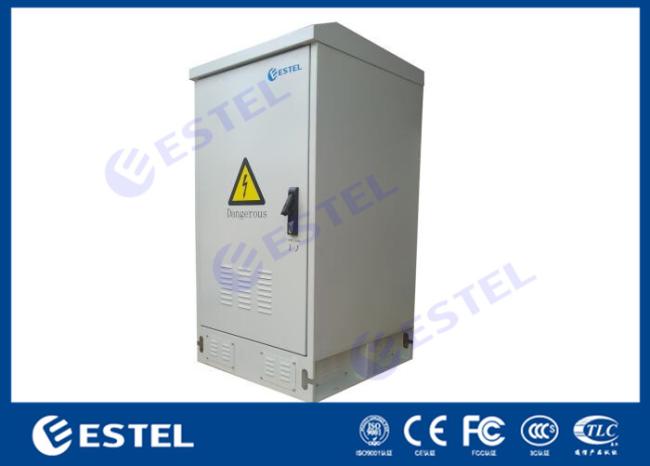

20U Outdoor Equipment Enclosure , IP55 Fan Cooling Reet Cabinets Telecoms 19" Rail
Outdoor Enclosure ET6060120-EQ
Introduction
● ESTEL is an OEM outdoor enclosure manufacturer. We provide a large variety of standard sizes from 6U to 42U high, and from 600mm to 1200mm deep, with adjustable 19”/23” racking rails, front and rear doors and 3 point locking system with pad locking handles. Designed for telecommunication industry, our enclosures can be deployed in harsh outdoor environments both rural or residential.
Application
Provides a secure, climate controlled environment for any electronic equipment.
Telecommunications
Wireless/Broadband
Fiber Optics
Backhaul
Base Station
Small Cell/DAS
Utility
Military
Trailer-based Communications
Wi-Fi
Flexible and Scalable
Features
● Heavy duty outdoor construction
● 20 rack units (RU), standard 19” rail
● Front access (rear access optional)
● Anti-theft three-point locking system, support padlock
● Outdoor powder coating, anti-corrosion
● Standard Color: light grey, RAL7035. Custom color available
● Cable inlet at cabinet bottom
● Include grounding bar
● Include door stopper
● Optional cooling solutions: fan ventilation, air conditioner, heat exchanger
Specification
| Configuration | Item | Technical Parameter |
| Cabinet Body | Model | ET6060120-EQ |
|
External Dimension (include plinth) |
600mm(W)×600mm(D)×1200mm(H) | |
| Internal Space | 20U | |
| Cooling Mode | Direct ventilation/air conditioner/TEC/heat exchanger | |
| Maintenance | Front operation&maintenance | |
| Material | Galvanized steel, double walls, with thermal insulation. | |
| Security Lock | European standard | |
| Protection Level | IP55 | |
| Installation | Floor mounted | |
| Surface Treatment | Outdoor polyester powder coating | |
| Color | Light grey RAL7035 coating or custom made | |
| Working Temperature | ||
| Cooling Method | Compressor Air Conditioner | Optional |
| Heat Exchanger | Optional | |
| TEC Air Conditioner | Optional | |

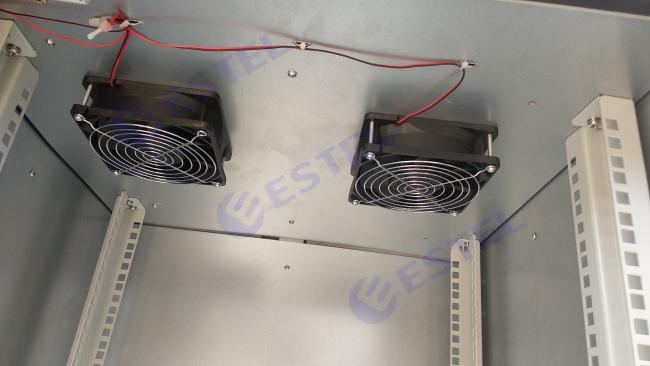

| Fan | DC48V,include fan temperature controller | |
| Environment | Operating Temperature | -40°C～+55°C |
| Storage & Transport Temperature | -40°C～+70°C | |
| Operating Humidity | 5%~100% | |
| Others | Lighting | -48VDC LED |
| Sensors (Optional) | Smoke, water, door switch, temperature&humidity |
