Heat Insulated Wall Mount Steel Outdoor Telecom Cabinet With Air Conditioner Cooling
Single Wall Heat Insulated Galvanized Steel Outdoor Telecom Cabinet With Air Conditioner Cooling
1. Application
The ET65100100-EQ Outdoor Cabinet is mainly used in wireless communication base station, such as communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
2. Features
(1) The cabinet is dustproof, sunproof and rainproof, used in outdoor environment.
(2) Cooling: air conditioner and fan.
(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.
(4) All the cables used in the cabinet are made from flame retardant materials.
3. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Size H*W*D 1000*650*1000mm |
| Layout | One compartment, used for installing 19” equipment | |
| Equipment Installation Method | 19” rack | |
| Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel, single wall + heat insulation: 1.5mm outer steel plate + 20mm inner insulation | |
| Structure | Assembled | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | Air conditioner and fan |
| Lighting | LED lamp | AC110V 60Hz |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
4. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension:W×D×H 650x1000x1000mm (2) One compartment: including 15U 19” installation rack. (3) With one front door, and anti-theft lock (support padlock) (4) Material: single layer galvanized steel + heat insulation : Outer layer: 1.5mm galvanized steel, inner layer: 20mm PEF heat insulation (5) IP55 (6) Color: outdoor grey powder coating(can be custom made) (7) Installation method: foor mount and wall mount, including installation accessory |
| 2 | Air Conditioner | 1 | Set |
Cooling Capacity: 800W; Power Supply: 110VAC, 60Hz |
| 3 | Fan | 2 | Set | 110VAC, 60Hz, on the top |
| 4 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
| 5 | LED Lamp | 1 | PC | 110VAC, 60Hz |
| 6 | Package | 1 | Set | Wooden Case |

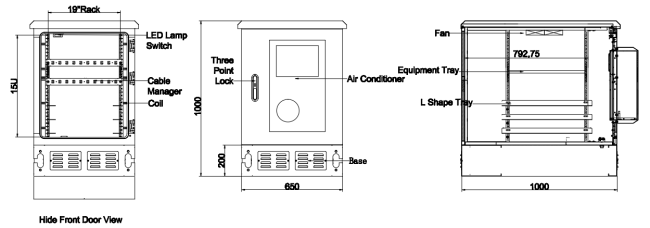

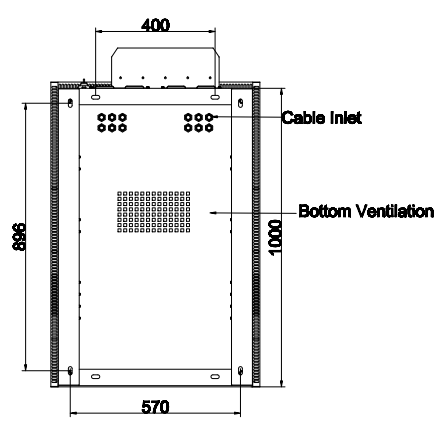

5.Cabinet Drawing
External Dimension H×W×D 1000×650×1000mm(19”, 15U);
6. Theft Proof Design
Door lock theft proof design
(1) Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.
(2) Three point lock
7. Connection and Fastening
(1) Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
(2) Door hinges use inner hinge mode.
7. Appearance and Surface Treatment
Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.
9. Packing, Transport and Storage
9.1 Packing
The cabinet packing is wooden case in compliance with GB3873-83, damp proof and shock proof. The outside of the packing is painted with damp proof sign, shock proof sign, direction sign, etc.
9.2 Transport
The cabinet can be transported by various transportation ways. During the transportation, the environment temperature should be -40°C~+70°C, the relative humidity should be ≤90%(at +30°C). There should be a awning to prevent the product from rain and sunshine. Loading, unloading and moving of the product should be carried according to the transportation signs painted on the packing.
9.3 Storage
In the warehouse, the acid gas, Alkaline gas or other harmful gas should comply with the environment protection requirement. Storage temperature: -5°C~45°C, relative humidity≤75%.

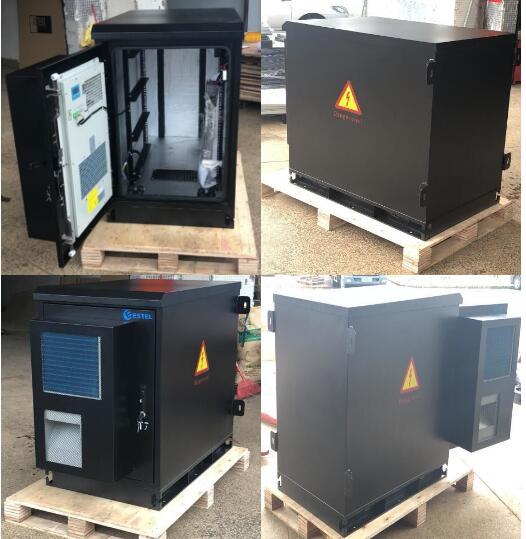

10. Cabinet Picture
