1.Overview
Outdoor power cabinet offers standard 19” racking rails, is a new design to build the whole base station inside. These cabinets have provision of floor mounting, wall mounting, pole mounting. This series cabinets offer all the protection needed for outdoor requirements. Ultimate security is provided by a three-point locking system. The cabinets system can support Electrical equipments, PDU, Backup batteries, Mornitoring system,DCDU and etc.
2.Specifications
| External Size | W*D*H 900*900*2100mm |
|
Structure |
Double wall with insulation |
|
Cabinet Layout |
One compartment with 19” rack inside |
|
Material |
Galvanized steel |
| Protection Level |
IP55 |
| Cabinet Inlets | From cabinet bottom |
| Illumination/lighting | DC48V LED lamp |
| Heat Insulation | PEF |
|
Grounding Protection |
Copper bar |
|
Color |
Grey (support custom made) |
|
Cooling System |
AC220V Air Conditioner and DC48V Fan |
|
Coating |
Anti-corrosion outdoor powder coating |
|
Accessories Options |
PDU, Environment monitoring system, Embedded power system, Battery, ODF,DCDU optional |
| Switching Mode Power Supply | Available upon request |
|
Alarm sensors |
The door sensor, water sensor, smoke sensor, temperature and humidity sensor |
| Flame retardant | Comply with GB5169.7 test A |
| Door type | With one front door |
|
Cabinet Lock |
Anti-theft three point lock for outdoor cabinet (support padlock). |
| Package | Wooden case with pallets |
| Certificates | CE |
| Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | |
| Transport Temperature: -50°C ~ +70°C |
3. Product pictures
4. Applications
Outdoor Cabinet is mainly used in wireless communication base station, such as 4G/5G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
5. Components Installation
5.1 LED lamp, smoke sensor and door sensor are installed at the top of the enclosure.
Environment Monitoring Unit and PDU are installed on 19” rack.
5.2 Air Conditioners and fans are installed on the door of the enclosure.
6. Door lock theft proof design
Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.
.
7. Cable Inlet
Feeder cable and other external cables all use bottom wiring method.
8.Grounding Protection

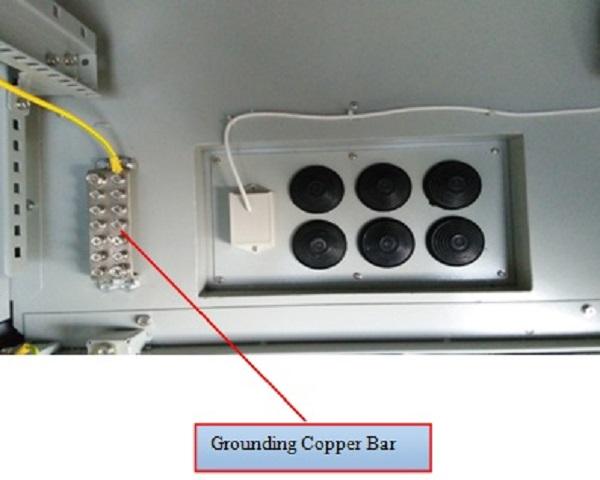

8.1 The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
8.2The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
8.3Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.
