Air Conditioner Cooling Outdoor Telecom Enclosure IP55 CE 19 Inch Rack PDU
Air Conditioner Cooling Outdoor Telecom Enclosure IP55 CE 19 Inch Rack PDU
1.Air Conditioner Cooling Outdoor Telecom Enclosure Overview
Air Conditioner Cooling Outdoor Telecom Enclosure provides flexible size options, offers the ideal enclosure solution to build the whole base station inside. It offers standard 19” rack, and has provision of floor mounting, pole mounting, wall mounting optional. This series enclosures offer all the protection needed for outdoor requirements.
2. Air Conditioner Cooling Outdoor Telecom Enclosure Specifications
| External Size |
W*D*H 900*900*2100mm |
| Structure |
Double wall with insulation, Sandwich structure. |
| Cabinet Layout | One compartment for installing 19” equipment |
| Material |
Galvanized steel, 1.5mm thick outer plate, 0.8mm thick inner plate |
|
Equipment Installation Method |
19” rack |
| Protection Level | IP55 |
| Cabinet Inlets | From cabinet bottom |
| Illumination/lighting | DC48V LED lamp |
| Heat Insulation | PEF |
| Grounding Protection | Copper bar |
| Color | Grey (support custom made) |
| Cooling System |
AC220V Air Conditioner and DC48V Fans |
| Coating | Anti-corrosion outdoor powder coating |
| Accessories Options |
PDU, Environment monitoring system, Generator power distribution box,Battery optional |
|
Switching Mode Power Supply |
Available upon request |
| Alarm sensors |
Door sensor, water sensor, smoke sensor, temperature and humidity sensor |
| Flame retardant | Comply with GB5169.7 test A |
| Door type |
With 1 front door |
| Cabinet Lock | Anti-theft three point lock(support padlock) |
| Package | Wooden case with pallets |
| Certificates | CE |
|
Environment Monitoring Unit |
1U, DC48V |
| Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | |
| Transport Temperature: -50°C ~ +70°C |
3.Cable Inlet
Feeder cable and other external cables all use bottom wiring method.
4. Components Installation
4.1 LED lamp, smoke sensor and door sensor are installed at the top of the enclosure.
4.2Environment Monitoring Unit and PDU are installed on 19” rack.
4.3 Air Conditioners and fans are installed on the door of the enclosure.
5. Grounding Protection
5.1The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
5.2The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
5.3Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.
6. Theft Proof Design

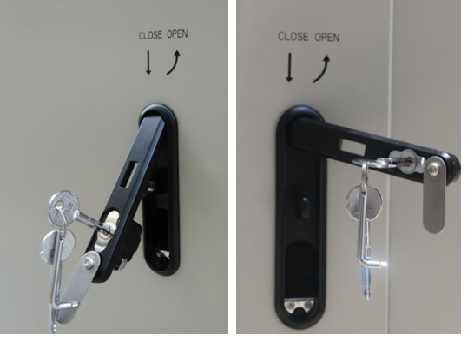

6.1 Door lock theft proof design
Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.
Three point lock
6.2 Connection and Fastening
Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
Door hinges use inner hinge mode.
6.3 Appearance and Surface Treatment
Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.
7. Factory Introduction
Factory Size: 3000 Square Meters
No. of Main Production Lines: 5
Contract Manufacturing: OEM Service Offered, Design Service Offered, Buyer Label Offered
Production Experience: 13 Years
8. Leading Time
Usually about 10-15 days. The exact lead time need to be confirmed according to the quantity of order.

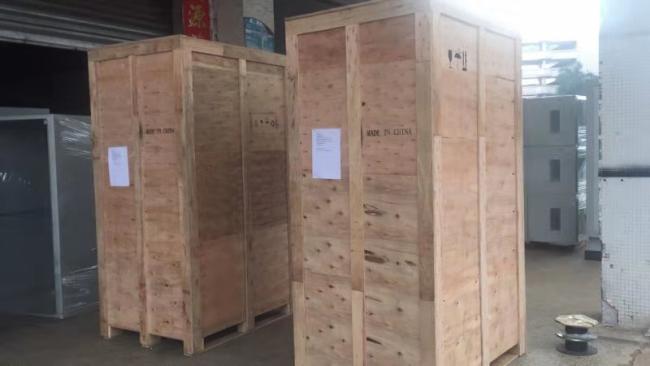

9. Packing and Shipping
Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
