Air Conditioner Cooling Outdoor Cabinet Double Wall Base Station Cabinet IP55

1.Outdoor Cabinet  Introduction

Air Conditioner Cooling Double Wall Base Station Cabinet provides flexible size options. The cabinets system ca

n support Backup batteries,Electrical equipments, PDU. Environment Mornitoring unit and etc. It can support water sensor, door sensor, temperature sensor, smoke sensor, and humidity sensor inside. This series enclosure offers the ideal enclosure solution to build the whole base station inside.

2. Outdoor Cabinet Features

2.1 External Size is W*D*H 750*750*1000mm

2.2 Double wall with insulation, Sandwich structure.

2.3 One compartment for installing 19” equipment

2.4 Equipment Installation Method:19” rack

2.5 Galvanized steel, 1.5mm thick outer plate, 0.8mm thick inner plate

2.6 IP55 protection level

2.7 Cabinet Inlets is from cabinet bottom

2.8 Support DC48V LED lamp

2.9 Heat Insulation:PEF

2.10 Grounding Protection:Copper bar

2.11 Cooling System:Fans,Air conditioner optional

2.12 Support Door sensor, water sensor, smoke sensor, temperature and humidity sensor

2.13 Support Anti-theft three point lock(support padlock)

2.14 Package:Wooden case with pallets

2.15 CE Certificates

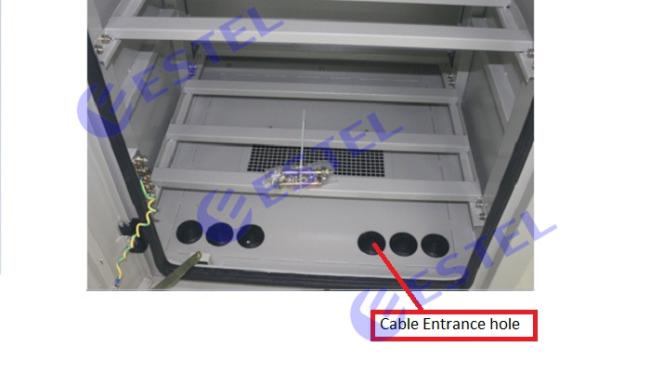

3.Cable Inlet

There are entrance holes individually at bottom of the cabinet for power cable, signal cable and optical cable and etc.

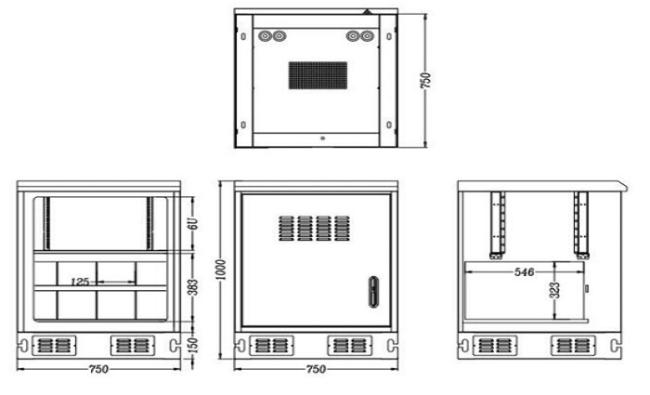

4. Cabinets Dimentions

5. Theft Proof Design

5.1 Theft proof door lock design

Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.

5.2 Connection and Fastening

Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.

Door hinges use inner hinge mode.

5.3 Appearance and Surface Treatment

Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.

6. Grounding Protection

6.1The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.

6.2The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.

6.3Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.

7.Cabinet Leading Time

It will take about 10-15 days. The exact lead time need to be confirmed according to the quantity of order.

8. Package

Wooden box with pallets
