Heat Exchanger Cooling Outdoor Communication Cabinets 19'' 42U Sunproof Rainproof
Heat Exchanger Cooling Outdoor Communication Cabinets 19'' 42U Sunproof Rainproof
1. Cabinet Specifications
| External Size | W*D*H 900*900*2100mm. |
|
Structure |
Double wall with insulation |
|
Cabinet Layout |
One compartment for installing 19” equipment |
|
Material |
Galvanized steel, 1.5mm thick outer plate, 0.8mm thick inner plate |
|
Equipment Installation Method |
19” rack |
| Protection Level |
IP55 |
| Cabinet Inlets | From cabinet bottom |
| Illumination/lighting | DC48V LED lamp |
| Heat Insulation | PEF |
|
Grounding Protection |
Copper bar |
|
Color |
Grey (support custom made) |
|
Cooling System |
Heat Exchanger and Fan |
|
Coating |
Anti-corrosion outdoor powder coating |
|
Accessories Options |
PDU, Environment monitoring system,Generator power distribution box, |
|
Alarm sensors |
The door sensor, water sensor, smoke sensor, temperature and humidity sensor |
| Flame retardant | Comply with GB5169.7 test A |
| Door type | With 1 front door |
|
Cabinet Lock |
Anti-theft three point lock(support padlock) |
| Package | Wooden case with pallets |
| Certificates | CE |
2. Outdoor Telecom Cabinet Overview
Outdoor telecom cabinet provides the ideal enclosure solution to build the whole base station inside. The cabinets system can support Electrical equipments, PDU, Mornitoring system and etc.The cooling system is air conditioner and heat exchanger.

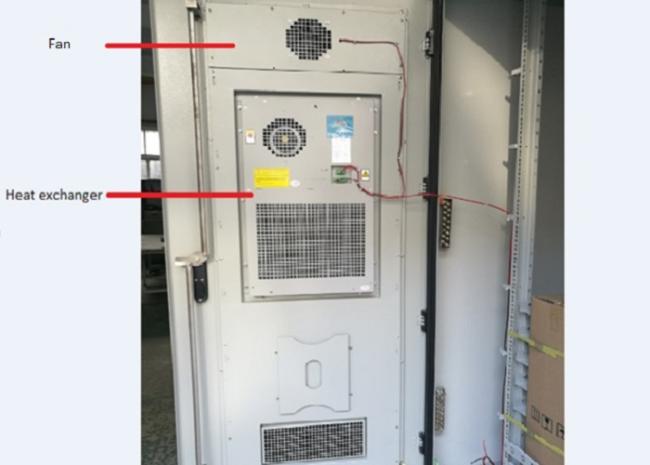

3.Cooling system

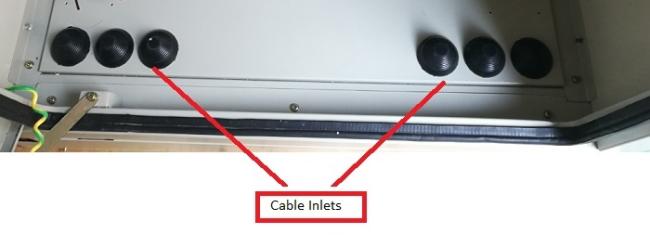

4. Cable Inlets
There are entrance holes individually for feeder cable and other external cables.
.
5. Theft Proof Design
5.1 Three theft lock theft proof design
Damage resistance of the theft proof lock meets GA/T 73-1994 "Mechanical Anti-theft Lock"class B requirement,supporting padlock.
5.2 Connection and fastening
(1) Use anti-loose threaded connection as structure and bearer connection.Anchor bolt for fixing cabinet use hot dip galvanized bolts.
(2) Door hings use inner hinge mode.

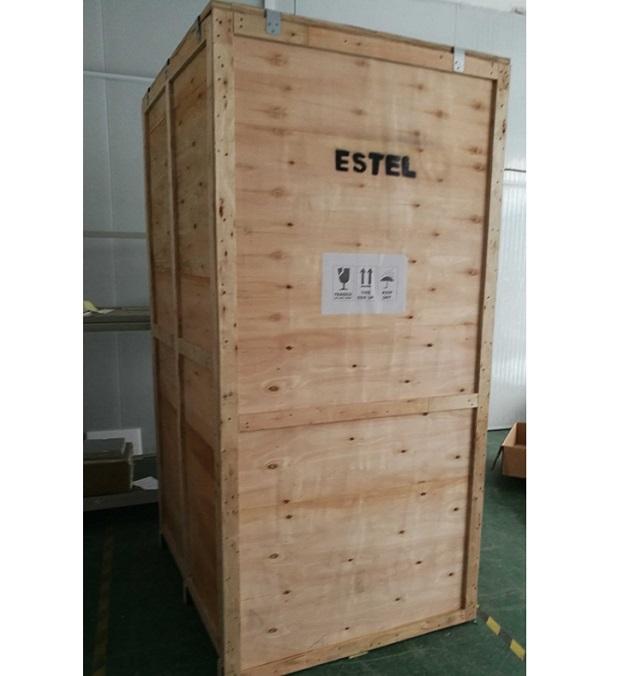

6.Pacakge
