Steel Outdoor Telecom Cabinet Anti Corrosion Communication Box With Rectifier Battery
Brief Description
● The outdoor communication cabinet refers to a cabinet made of metal or non-metal material, directly under the influence of the weather, and does not allow unauthorized operators to access. Base station equipment, power supply, battery, temperature control equipment, transmission equipment and other ancillary equipment can be installed in the cabinet, which can provide reliable mechanical and environmental protection for the normal operation of internal equipments.
The cabinet is mainly used in wireless communication base stations, including a new generation of 4G / 5G systems, communications / network integrated services, access / transmission switching station, emergency communications / transmission etc.
Features
●Short construction period, less land occupation, broader application and lower construction cost
● High integration, compact structure, easy installation and migration on later stage
● High-performance cooling solution
● The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.
●Professional outdoor anti- corrosion powder coating, strong weather resistance, dustproof, sunproof and rainproof, which is used in outdoor environment.
● All the cables, sealing used in the cabinet are made from flame retardant materials.
Technical Parameter
● The cabinet material is high quality steel plate, which is made by the world's leading AMAD CNC equipment, with exquisite workmanship and precise size. The main frame of the cabinet is made by welding, ensuring the whole cabinet is strong and durable. The internal structure and all kinds of accessories are assembled in the way of assembling, and the application is flexible. The cabinet body and its internal accessories are all pretreated by acid washing and phosphating, and then the special molding powder is used for electrostatic spraying, so as to prevent corrosion and rust.
| Configuration | Item | Technical Parameter |
| Cabinet Body | Model | G1114114009 |
| Size | External Size: 750mm×750mm×1750mm(W×D×H) | |
| Component | The whole cabinet is composed of three parts: top cover, cabinet body and base. The installation method is floor mounted. | |
| Material | Galvanized steel, 1.5mm thickness outer, 0.8mm thickness inter | |
| Structure |
Single wall One front door, hidden zinc alloy hinge Outdoor special steel lock Door stopper / wind lock is installed on the inside of the cabinet door Grooved door with seal rubber strip, attached to the inner side of the door, waterproof and dustproof Include standard 19“ rack and device tray inside the cabinet, high universality. Special rack or electrical lining board inside the cabinet can be custom made. Cable inlets at the bottom of cabinet |
|
| Surface Treatment | Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification | |
| Color | Outdoor polyester light grey RAL 7035 coating or custom made | |
| Ingress Protection | IP55 | |
| Working Temperature | -40°C～+75°C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Payment Terms: | L/C,D/A,T/T, Western Union, Paypal, etc |
| Supply Ability: | 5,000 sets per month |
| Delivery Time: | 10-20 working days |
| Packaging Details: | wooden case |

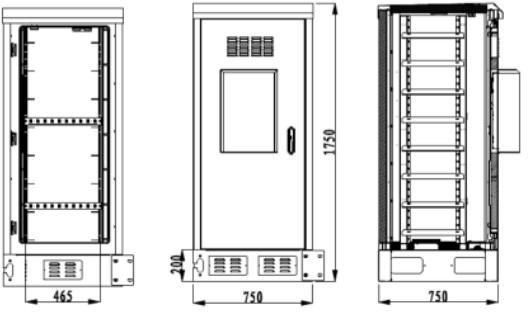

Dimension Drawing:
