Aluminum Double Wall Outdoor Telecom Cabinet IP55 1 Unit PDU With Front Rear Access
Aluminum Double Wall IP55 Outdoor Telecom Cabinet With Front Rear Access With PDU
1. Cabinet Application
This series cabinet is made of aluminum and has the characteristics of light weight, fast heat dissipation and easy handling. Base station equipment, power supply, battery, temperature control equipment, transmission equipment and other equipments can be installed in the cabinet, which can provide reliable mechanical and environmental protection cabinets for the normal operation of internal equipment.
2.Cabinet specifications
| External Size | W*D*H 774*852*2458mm |
| Internal Size | W*D*H 720*780*2250mm |
| Material | Aluminum, Double wall with insulation |
| Cabinet Layout | One compartment |
| Protection Level | IP55 |
| Cable Entry | From cabinet bottom |
| Illumination | DC48V LED lamp |
| Heat Insulation | PEF |
| Grounding Protection | Copper bar |
| Color | Grey (support custom made) |
| Cooling System | AC220V Air Conditioner and Heat Exchanger |
| Coating | Anti-corrosion outdoor powder coating |
| Accessories Options | PDU, Environment monitoring system,Battery. |
| Alarm sensors | The door sensor, water sensor, smoke sensor, temperature and humidity sensor, vibration sensor |
| Flame retardant | Comply with GB5169.7 test A |
| Door type |
With one front door and one back door, and anti-theft three point lock for outdoor cabinet (support padlock). |
| Cabinet Lock | Anti-theft three point lock(support padlock) |
| Certificates | CE |
| Package | Wooden case with pallets |
| Mounting type | Wall mount |

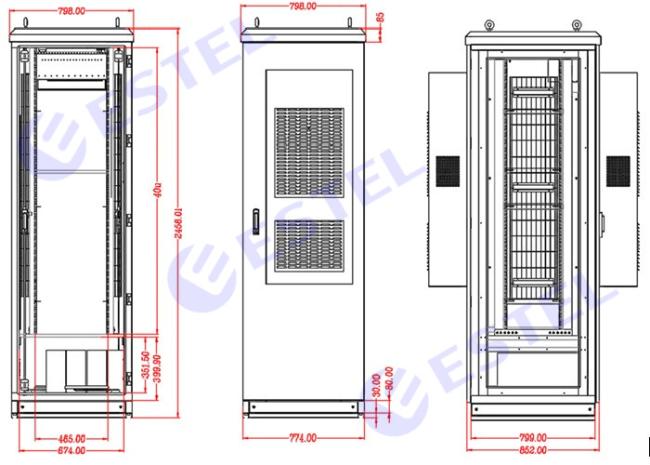

3. Cabinet dimensions
4.Connection and Fastening
-
Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
-

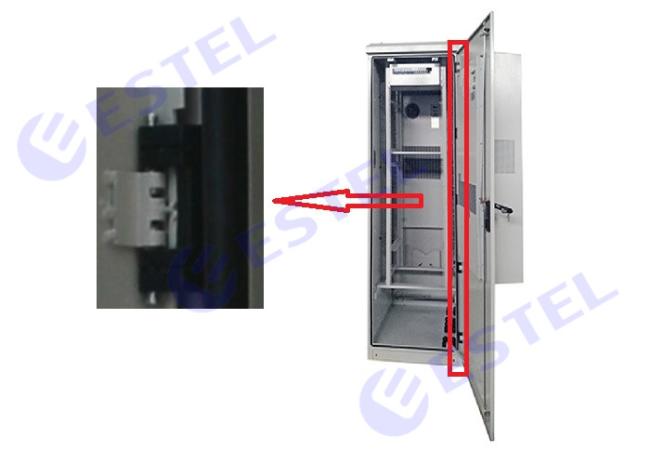

Door hinges use inner hinge mode.
5. Door limit
The door limit can limit the opening angle.
6. Cabint quality control introduction
Our company resolutely implements the principle of quality first, we control and supervise the whole production process in strict accordance with the requirements of the ISO9001 system and the related implementation process. The quality department strictly controls all aspects like material inspection, production processes, product testing, shipment inspection and establishes traceable documents and product identification.Our quality inspection team, is very familiar with the various standards, strict implementation of the standards required sampling and testing methods.
