Floor Mount Outdoor Electrical Cabinets And Enclosures With 1500W Air Conditioner

1. Cabinet Specifications

• External Size:W*D*H 900*900*2100mm

• Material: Galvanized steel,sandwich structure panel,with thermal insulation.

• Component: The whole cabinet is composed of three parts:top cover,cabinet body and base.The installation method is floor mounnted.

• Cabinet Inlets: From cabinet bottom

• Protection Level:IP55

• Heat Insulation: EPS

• Grounding Protection: Copper bar

• Color: Light Grey

• Air Conditoner:Cooling Capacity is1500W ;Power Supply: 220VAC,50Hz.

• Alarm sensors: The door sensor, water sensor, smoke sensor, temperature and humidity sensor

• Door and lock type:1 front door with anti-theft three point lock(support padlock)

• Package: Wooden case with pallets

• Certificates: CE

2. Cabinet Application

• Environmental monitoring

• Base station

• Mobile & Radio, 4G 5G, Tetra, Microwave

• CCTV and security systems

• Telecommunication

• Internet service providers

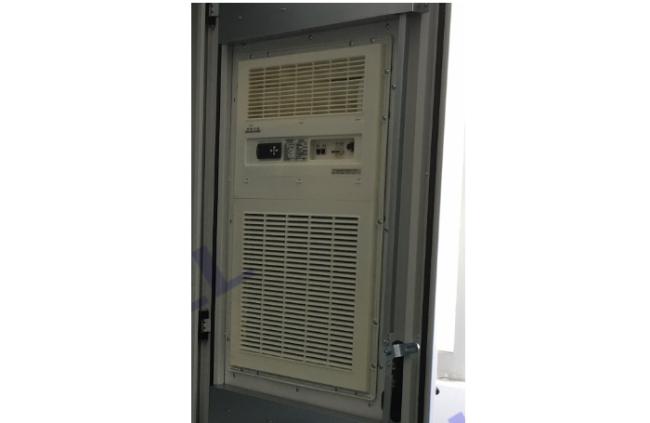

3.Cabinet Air Conditioner Instruction

The air conditioner uses utility power input,allowing wide voltage range ,with high energy efficiency ratio.The air conditioner integrated universal intelligent controller,supporting 7*24 hours continous operation.It supports RS485 communication and can be connected with customers' system.

4. Cabinet Connection and Fastening

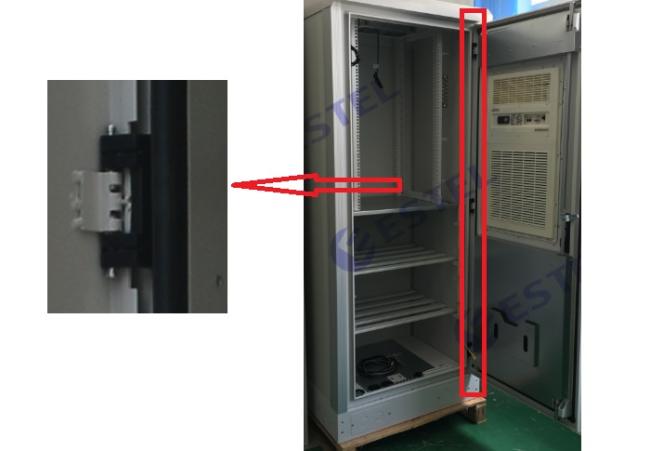

Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts. Door hinges use inner hinge mode.

5. Cabinet Mounting Type

• Wall mount by mounting kits

• Pole mount by mounting kits

• Floor standing by base

6. Cabinet Delivery

The goods can be shipped by sea, by air, by courier, by land, by train, etc.
