Pole Mount Outdoor Power Cabinet IP55 One Front Door 1000VA Backup Power Supply
Price:
715-4286 usd
MOQ:
1 set
Delivery Time:
15-20 working days
Brand:
ESTEL
Product Description
Pole Mount Outdoor Power Cabinet IP55 One Front Door 1000VA Backup Power Supply
1. Product Specs
| Power Parameter | |
| Electric Supply Input Range | 130-285VAC |
| Input Frequency Range | 50±5% |
| Input Current | 5A(including charging current) |
| Electric Supply Under-Voltage Switch | ≤176VAC recovery return differernce 10V |
| Electric Supply Over-Voltage Switch | ≥262VAC recovery return differernce 4V |
| Lightning Proof | 40KA |
| Load | 3 way AC, 2 way DC |
| Inverter AC Output Voltage / Power | 230V±2% / 800W Max |
| DC Output Voltage / Power | -43.2 V～-57.6 V / 300W Max |
| Output Frequency | 50±0.5 (no electric supply) |
| Maximum Charging Voltage | 54.5VDC |
| Recovery Charging Voltage | 40.5 VDC |
| Charging Current | 6.25A |
| Battery Parameter | |
| Rated Capacity | 25AH |
| Nominal Voltage | ≥51.2V- |
| Charging Current | ≤6A |
| Float Charging Voltage | 53±0.2V |
| Mechanical Specifications | |
| Structure | Modular installation |
| Material | Cold rolled steel |
| Cable Entry Position | At bottom |
| External Size(mm) | 420×320×180 |
| Weight (kg) | 21 |
| Cooling Mode | Natural ventilation /fan auxiliary ventilation |
| Windward Area (㎡) | 0.2 |
| Protection Grade | IP55 |
| Installation method | Pole mount, wall mount, floor mount |
| Optical Passive Components | |
| ODF |
12 core ODF fiber optical fusion tray
|
| Fixed Component | Fiber-optic cable fixed panel |
2. Cabinet Mounting Types

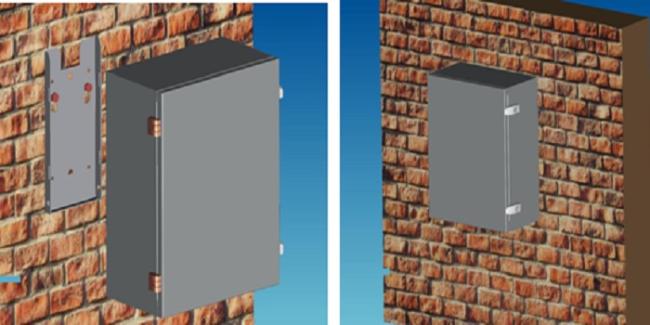

2.1 Wall Mount

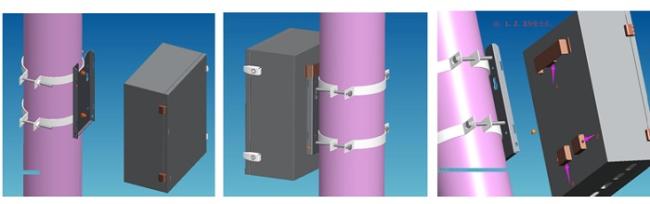

2.2 Clamp Hoop Pole Mount

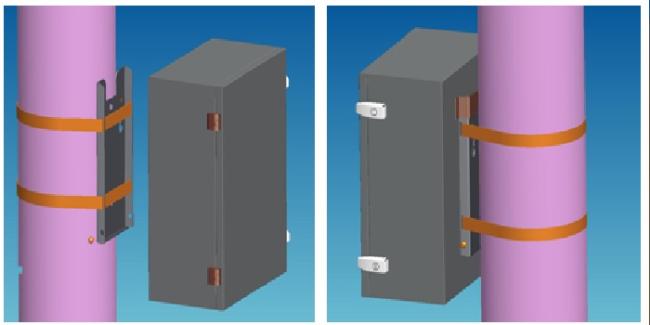

2.3 Steel Band Pole Mount
3. Cabinet Leading Time
Usually about 10-15 days. The exact lead time need to be confirmed according to the quantity of order.
