Galvanized Steel Single Wall Outdoor Telecom Enclosure Pole Mount IP55 Sunproof

1. Cabinet Features

• The cabinet is dustproof,sunproof and rainproof
• The cabinet cooling uses fan.
• Including one 48VDC illumination LED lamp, installed on cabinet top.
• The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlets at the bottom of the cabinet.

2. Cabinet Specs

• Material: good quality galvanized steel

• Surface treatment: powder-coat paint, outdoor polyester light gray RAL 7035 coating

• Ingress protection: IP55

• Flame retardance: comply with GB5169.7 test A

• Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2×104M/500V(DC).

• Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.

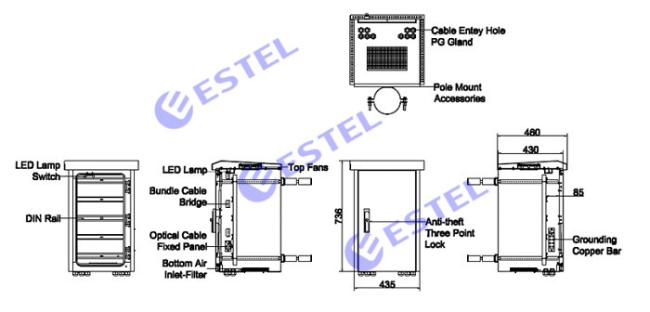

3. Dimension Diagram

Cabinet External Dimension (W×D×H): 435mm×460mm×736mm .

4. Electrical Devices

4.1 Service Light

Service light is used to get additional light inside the cabinet. Service light is 48VDC, installed at the top of the cabinet.

4.2 Fan

The cabinet includes two DC48V fan, installed on the top of cabinet .

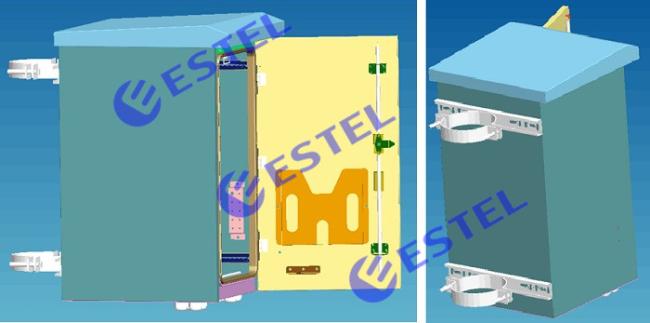

5. Cabinet Pole Mounting Type
