Four Doors Network Enclosure Cabinet IP55 Three Compartment Air Conditioner Cooling

1. Cabinet Features

• Galvanized steel with heat insulation

• External dimentions is W*D*H 2400*900*1800mm

• Gray color

• Top cover shades cabinet from the sun

• Three anti-theft front doors and one back door

• All the doorlocks are anti-theft three point lock

• Individual cable entry holes from bottom of the cabinet

• Cooling system uses aire conditioner and fan.

• The door sensor, water sensor, smoke sensor, temperature and humidity sensor optional

• Flame retardant comply with GB5169.7 test A

• Floor mounting type

• IP55 protection level

• CE certificates
• Package:Wooden case with pallets

2. Cabinet Overview

This series there compartment cabinet is a good choice for outdoor base station racking requirements.It offers a secure,climate controlled environment for any electronic equipment. Being made of galnarized steel,it’s strong enough to rack even the heaviest equipment.For those who need more than just standard enclosure, this series can also offer a truly the security of customized solution with lots of available options, providing a climate-controlled environment for any electronic equipment, electrical load panels and cable entry solutions.These cabinets have provision of floor mounting.Ultimate security is provided by stree point locking system.

3. Cabinets Application Types

This series cabinets are very suitable for outdoor application,such as: Telecommunications,Base station,Trailer-based communications,Fiber Optics and Military and etc.

4. Cable Connections

• Use anti-loose threaded connection as structure and bearer connection.Anchor bolt for fixing cabinet use hot dip galvanized bolts.
• Door hings use inner hinge mode.

5. Cooling System Installation

Air conditioners and fans are all installed on the front doors and rear door.

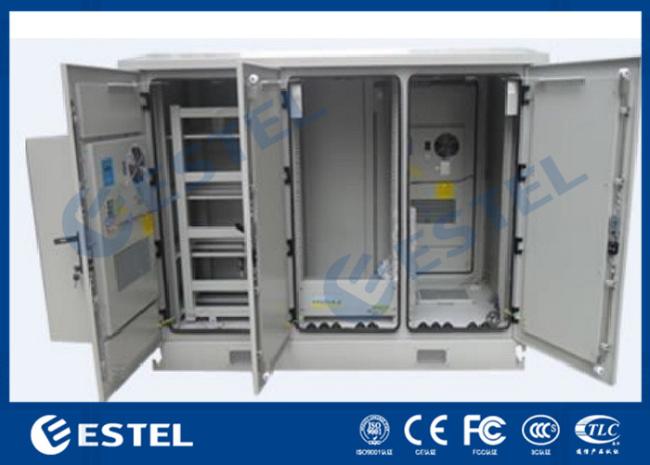

6. Cabinet Pictures

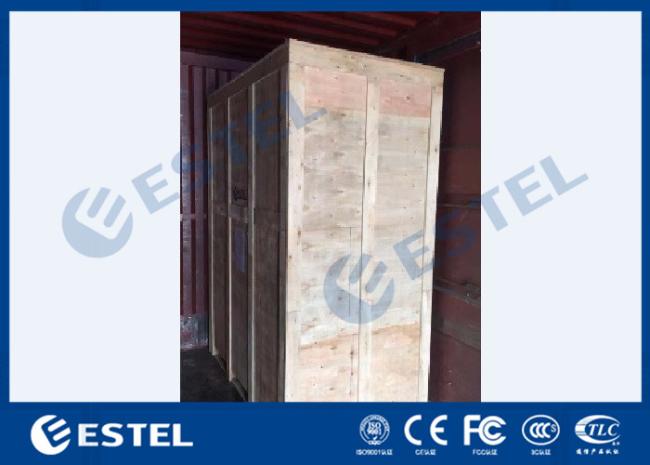

7. Cabinet Package
