Single Wall Outdoor Equipment Cabinet IP55 High Reliablity With Power System Battery
Single Wall Outdoor Equipment Cabinet IP55 High Reliablity With Power System Battery
1. Cabinet Description
The outdoor cabinet refers to a cabinet made of metal or non-metal material, directly under the influence of the weather, and does not allow unauthorized operators to access. Base station equipment, power supply, battery, temperature control equipment, transmission equipment and other ancillary equipment can be installed in the cabinet, which can provide reliable mechanical and environmental protection for the normal operation of internal equipments.
2. Cabinet Features
| External Size | W*D*H 850*650*1400mm |
| Mounting type |
Floor mount |
| Material |
Galvanized steel, single wall |
|
Cabinet Layout |
One compartment |
|
Door limit |
Door limit up to 110 degree open angle |
|
Protection Level |
IP55 |
| Cabinet Inlets | From cabinet bottom |
| Illumination | DC48V LED lamp |
| Grounding Protection | Copper bar |
| Color | Grey (support custom made) |
| Coating | Anti-corrosion outdoor powder coating |
| Flame retardant | Comply with GB5169.7 test A |
| Door type |
With one front door,anti-theft three point lock for outdoor cabinet (support padlock). |
| Cabinet Lock | Anti-theft three point lock(support padlock) |
| Package | Wooden case with pallets |
| Certificates | CE |
3. Cable Entry Holes
There are entrance holes individually for power cable, signal cable and optical cable from cabinet bottom.
4. Cabinet connection and fastening
(1) Use anti-loose threaded connection as structure and bearer connection.Anchor bolt for fixing cabinet use hot dip galvanized bolts.
(2) Door hinges use inner hinge mode.

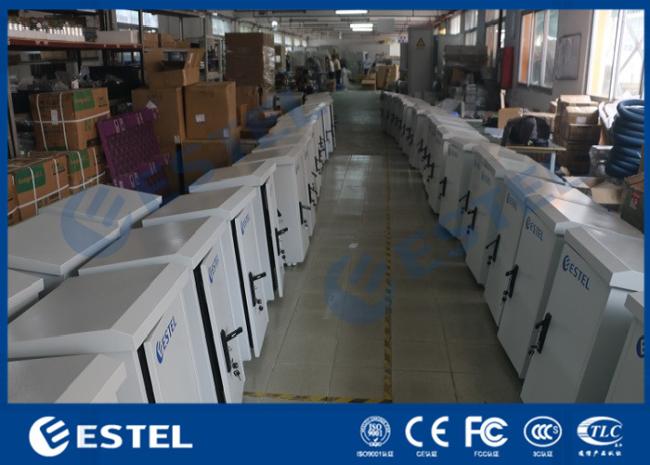

5. Cabinet Products
