20KW Cooling Capacity Container Air Conditioner 3800m3/h Airflow IP55

1. Air Conditioner Overview

Precision air conditioners, especially for outdoor container storage cabinets, power cabinets and other applications that require heat dissipation, have active refrigeration functions for electronic power, and battery equipment operates reliably, reduces equipment failure rate and creates a good temperature environment.

2. Air Conditioner Key Features

2.1 High-efficiency rotary compressors: reliable and energy-saving

2.2 Intelligent communication: optional RS485 communication port and dry contact alarm output for remote monitoring

2.3 Display optional: field parameters can be set to show the temperature and operating status of the cabinet

2.4 Top-mounted installation: perfectly integrated into container applications, cooling ducts more reasonable

2.5 Wide operating temperature range: reliable operation throughout the environment

2.6 Easy-to-maintain design: reducing maintenance difficulty

2.7 High protection rating: Special waterproof construction design (bottom-turning waterproof strip)

3. Air Conditioner Parameters

 Power supply:                                  3~380VAC±15% 50Hz
Cooling capacity:                              20KW@l35/L35
Power consumption:                        6.5KW@L35/L35
Airflow:                                             3800m3/h
Working temperature(with heater):  -30℃~+45℃
Noise:                                              70dB(A)
IP rated protection:                          IP55
Weight:                                            220Kg
Refrigerant:                                      R410A
Communication port:                       1 RS485(optional)
Surface color:                                   RAL7035

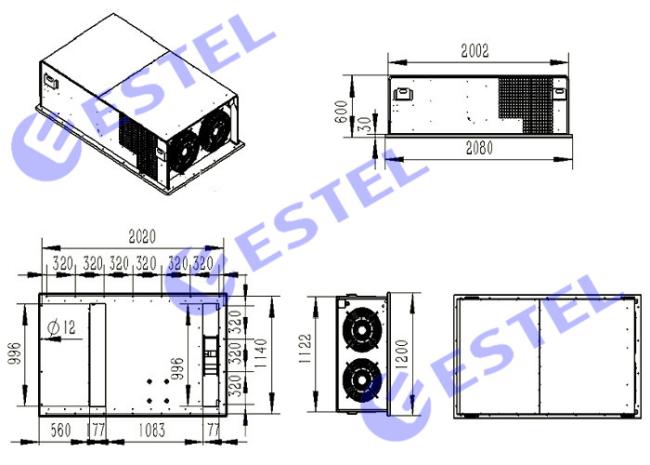

4. Air Conditioner Dimension
