1. Product introduction
The kiosk air conditioner is one kind of refrigeration product self-developed for cabinet. It is applicable in the place where the cabinet internal heat is very large, the internal electronic equipment is sensitive to the environment temperature and which should be isolated internally and externally completely. This product has multiple functions, high reliability, and has the feature that it can start to work without complex debugging after powering.
The fan in the internal cycle air path absorbs the hot air from the upside to make air heat exchange by evaporator fins, and sends the cooled air from the downside of the air conditioner. By so, the air in cabinet can cycle to achieve the purpose of lowering the temperature. Meanwhile, The fan in the external cycle air path absorbs the external cold air from the downside, and discharges the hot air from the upside after heat exchange.
2. Product Parameters
| Type | Parameters |
| Dimensions (Include flange) | 638*450*185mm |
| Dimensions(Without flange) | 600*450*185mm |
| Weight | 19.5 kg |
| Mounting method | Door mounted |
| Working temperature | -40℃ -55 ℃ |
| Input voltage | 220 VAC±15% ～/50Hz |
| Cooling capacity L35/L35 | 800 W |
|
Rated Refrigerating input power(L35/L35) |
385W |
| Rated Refrigerating current (L35/L35) | 1.8A |
| Heating capacity | / |
| Airflow | 240 m3/h |
| IP grade | IP 55 |
| Refrigerant | R134A |
| Noise | 60 dB(A) |

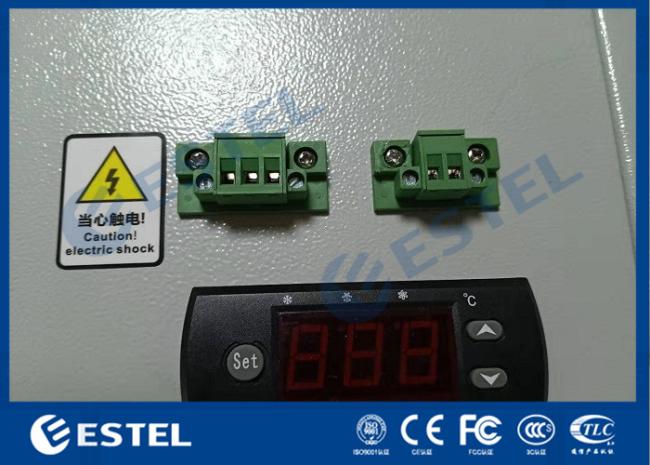

3. Product Detailed Pictures

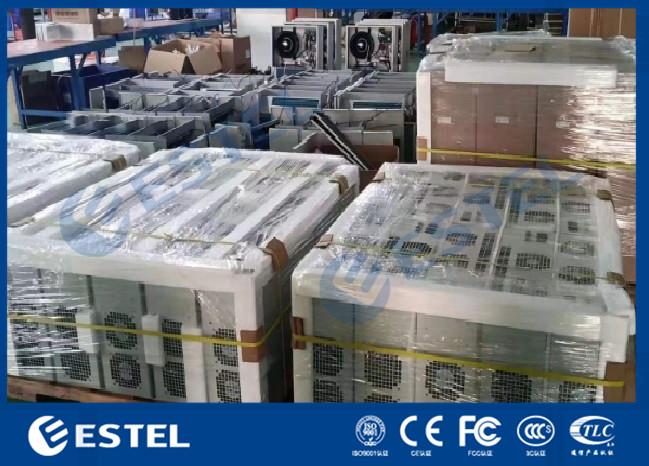

4. Production Pictures
