AC220V 80W/K Enclosure Heat Exchanger Refrigerant Embeded Mounting IP55 R134A
AC220V 80W/K Enclosure Heat Exchanger IP55 R134A Refrigerant Embeded Mounting
1. Key Instructions
- Fast man-machine interface operation, real-time temperature display, automatic and accurate temperature control;
- Working environment range: - 40 ~ + 55 ℃;
- It is specially designed for the cooling of communication cabinet and automation system. The installation mode is flexible and convenient;
- It has the characteristics of low noise, anti fouling and IP55 protection;
- Industrial parts of famous brands are adopted, with high reliability;
- Multi function alarm output and RS485 communication function
2.Key Specifications
| Type | Parameters |
| Dimensions(Without flange) | H*W*D 960*405*226mm |
| Dimensions(With flange) | H*W*D 994*436*226mm |
| Installation environment | Outdoor |
| Mounting method | Door mounted |
| Working temperature | -40℃ -55 ℃ |
| Input voltage | 220 VAC±15% ～50/60Hz |
| Cooling capacity L35/L35 | 80W/K |
|
Rated Refrigerating input power(L35/L35) |
282W |
| Rated Refrigerating current (L35/L35) | 1.3A |
| Heating capacity | 1000W |
| Internal airflow | 800 m3/h |
| IP grade | IP 55 |
| Refrigerant | R134a |
| Noise | 70 dB(A) |
| Weight | 27Kg |
3. Installation instructions
In order to avoid short circuit of air duct, it is suggested to make effective isolation between inner air inlet and outlet.
This product is free of cover, customers don’t need to install additional cover.
1. If the customer needs to in-stall a protective cover, in order to ensure enough circulation of air, the opening rate of the air inlet and outlet should be greater than 60%. It is very important to prolong the unit life and reduce the maintenance frequency.
2. The air inlet and outlet of the protective cover should pre-vent short circuit of air duct, so that the air-con can get the best cooling effect.

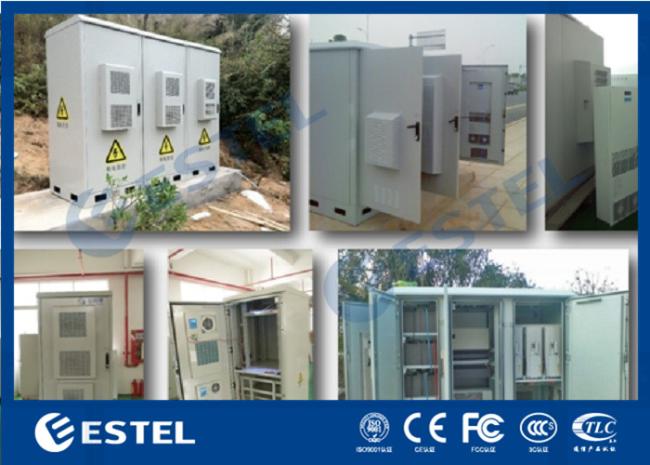

4. Applications
