Two Bay Galvanized Steel Outdoor Telecom Cabinets Floor Mounting PEF Heat Insulation

Two Bay Galvanized Steel Outdoor Telecom Cabinets Floor Mounting PEF Heat Insulation

1. Two Bay Cabinet Key Features

• IP rated protection

• Vented, glazed or steel doors with single or multi-point locking systems

• Range of cable management options and power supply accessories

• Bay construction

• Designed for maximum thermal and space efficiency

• Hot and cold aisle containment

• Innovative range of telecommunications cabinets

• Cost-effective solutions

• 19 inch rack and battery layers

• Hybrid design

• Environmental protection

• Security locking systems

• Single or double skin construction

2. Two Bay Cabinet Features

2.1 Dimensions: W*D*H 1600*800*2100mm,

2.2 Standard 19” Rack Mountable Equipment.

2.3 Dustproof, Sunproof and Rainproof.
2.4 Layout : 2 compartments (separated left compartment and right compartment), with middle division plate.

2.5 Electrical Grounding bar inside.

2.6 Doors: Lockable, With 2 front doors, and anti-theft 3-point lock with padlock optional.

2.7 Installation mode: installed on a concrete floor.

2.8 Heat Insulation: 20mm PEF heat insulation between inner wall and outer wall.

2.9 Cabling mode: routed in and out from the bottom.

2.10 Including -48VDC illumination lamp.

2.11 Accessories: PDU, Monitor, Light, Alarm Sensors (Based on request),Batteries.

2.12 Temperature Control: AC220V air conditioner or DC48V fans.

2.13 Protection level:IP55.

2.14 Certificates:CE.

3. Two Bay Cabinet Benefits

3.1 State of the art technology

This series inverter incorporate technology to reduce harmonic distortion and increase both crest factor tolerance and dynamic stability.

3.2 Effective thermal management

It is designed with a unique spot cooling thermal management design that qualifies the system to satisfactorily operate at ambient temperature more than 45C.

3.3 High reliability

PULSEGATE Series inverters are designed for high reliability as components are selected with high de-rating factors to assure maximum MTBF.

3.4Long design life

Components are carefully selected to provide system that operate at extreme ambient conditions with life expectancy in excess of 20 years.

3.5Durability

Enclosures are industrial grade that are made of firmly welded heavy-gauge steel with an attractive, long-lasting powder textured coating (RAL 7032). Standard cabinets are IP55. Other protection classes and colors are available upon request.

3.6 Ease of access

All components are front accessible; no side or back clearance is required. Internal components and connections are easily accessible and/or removable through the front door.

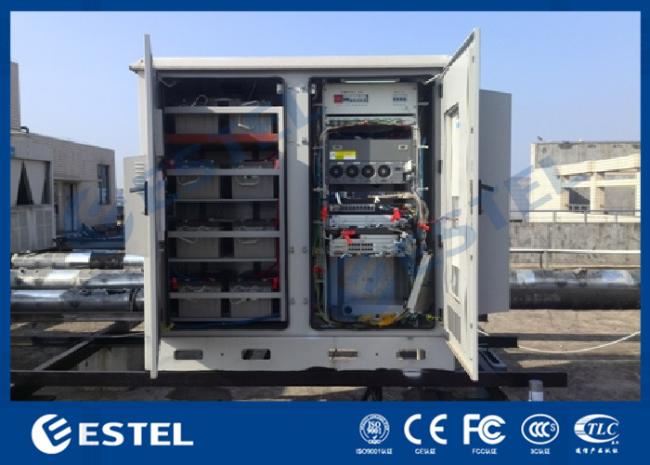

4. Two Bay Cabinet Picutres

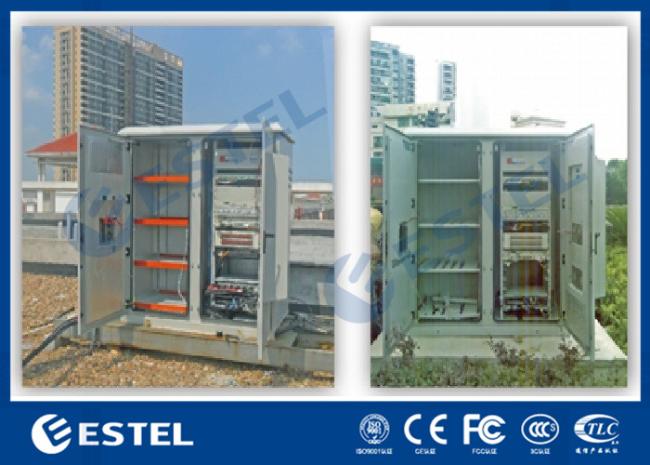

5. Two Bay Cabinet Application
