Air Conditioner Integrated Galvanized Steel Outdoor Telecom Cabinet

1. Cabinet Benefits

1.1 Ease of access

All components are front accessible; no side or back clearance is required. Internal components and connections are easily accessible and/or removable through the front door.

1.2 Ease of maintenance

Most power and control modules are provided in sub-assembled chassis with plug and socket connection for easy serviceability and minimized spare part inventory.

1.3 Low MTTR

Due to the ease of access to internal components and the plug-and-socket subassemblies in addition to the availability of self-diagnostic PCB, It is accredited for exceptionally low mean time to repair (MTTR).

1.4 Ease of installation

Cabinets are floor mountable with bottom entry equipped for cable or conduit entrance. Input, output and remote alarm connections are wired to internal terminal lugs that are easily accessible. Top entry is available upon request.

1.5 Ease of adjustment

Output voltage, current limits and alarm levels are easily adjustable.

2. Cabinet Features

2.1 Dimensions: W*D*H 900*800*2100mm,

2.2 Standard 19” Rack Mountable Equipment.

2.3 Dustproof, Sunproof and Rainproof.
2.4 Layout : one compartment

2.5 Electrical Grounding bar inside.

2.6 Doors: Lockable, With 1 front doors, and anti-theft 3-point lock with padlock optional.

2.7 Installation mode: installed on a concrete floor.

2.8 Heat Insulation: 20mm PEF heat insulation between inner wall and outer wall.

2.9 Cabling mode: routed in and out from the bottom.

2.10 Including -48VDC illumination lamp.

2.11 Accessories: PDU, Monitor, Light, Alarm Sensors (Based on request),Batteries.

2.12 Temperature Control: AC220V air conditioner or DC48V fans.

2.13 Protection level:IP55.

2.14 Certificates:CE.

3. Cabinet Picutres

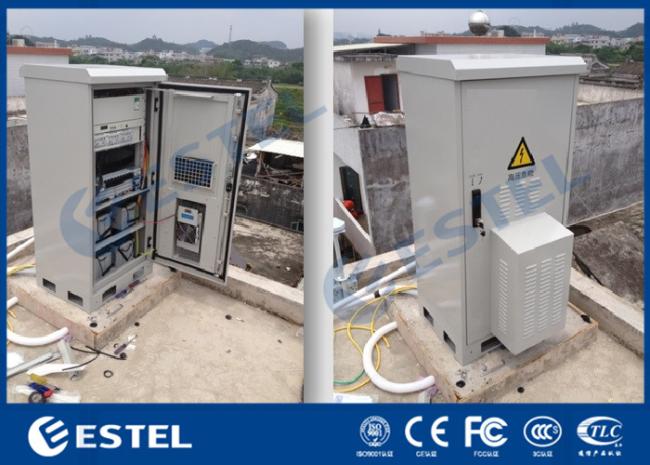

4. Cabinet Application
