DC 48V Cooling Fans Outdoor Telecom Cabinet With Anti Theft Three Point Lock
Pole Mounted Cooling Fans Outdoor Cabinet With Anti-theft Three Point Lock
1. Product Instructions
Pole mounted outdoor cabinet is made of good quality steel plate, with exquisite workmanship and precise size. The main frame of the cabinet is made by welding, ensuring the whole cabinet is strong and durable. The internal structure and all kinds of accessories are assembled in the way of assembling, and the application is flexible. The cabinet body and its internal accessories are all pretreated by acid washing and phosphating, and then the special molding powder is used for electrostatic spraying, so as to prevent corrosion and rust.
2. Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet Body | Model | 121060608050001 |
| Size | External Size:800mm×600mm×600mm(H×W×D) | |
| Component | The whole cabinet is composed of two parts: top cover and cabinet body. The installation method is pole mounted. | |
| Material | Galvanized steel, 1.5mm thick, insulation: 20mmPEF. | |
| Structure |
|
|
| Surface Treatment | Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification | |
| Color | Outdoor polyester light grey RAL 7035 coating or custom made | |
| Ingress Protection | IP55 or custom made | |
| Working Temperature | -40°C～+75°C | |
| Cooling Method | Compressor Air Conditioner | / |
| Heat Exchanger | / | |
| TEC Air Conditioner | / | |
| Fan | DC48V | |
| Monitoring | Monitoring Unit | / |
| Smoke Sensor | Monitor the smoke status inside the cabinet and provide real time alarm. | |
| Vibration Sensor | / | |
| Water Sensor | / | |
| Door Sensor | When unlawfully opened, provide real-time alarm. | |
| Temperature & Humidity Sensor | / | |
| Other | / | |
| Other | Illumination |
LED light, 48VDC |
3. Cooling Fans
Cooling fan is installed on the front door.

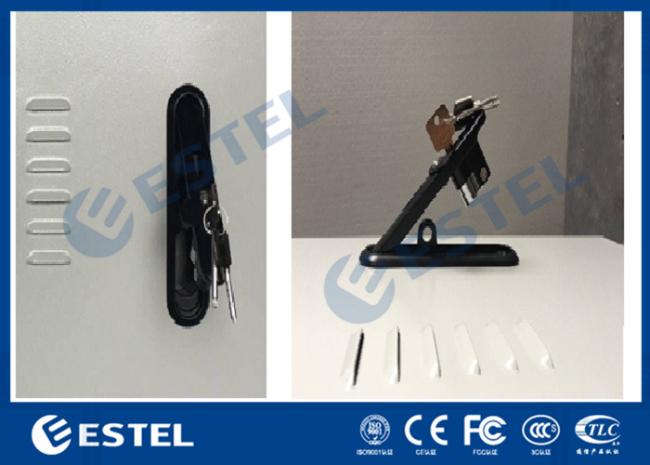

4. Cabinet Door Lock
Cabinet door lock is anti-theft three point lock,with padlock optional.
