220VAC Integrated Outdoor Telecom Cabinet Galvanized Steel For Telecommunication

Price Negotiable

Price: 358-2143 usd

MOQ: 1 set

Delivery Time: 15-20 working days

Brand: ESTEL

Product Description

220VAC Air Conditioner Cooling System Galvanized Steel Integrated Outdoor Telecom Cabinet

1. Quick Details

Product Type: Outdoor Telecom cabinet
Protection Level: IP55
External Size: Customized
Application: Telecommunication
Material: Galvanized Steel
Dimensions: Standard or Customized
Cooling system: 220v air conditioner with1500w cooling capacity
Color: RAL7035 or customized
Surface: Power coating, plating
Packaging Details:Wooden box on export pallet or according to customer requirements

2.Key Features

Strong rack inside to be equipped with telecom equipments, power source, temperature control device and other accessaries.
Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other alarm information, etc.
Cabinet made of low thermal conductivity and fireproof material for heat insulation fireproof.
Used to be installed in any difficult places include the top of mountain and the roof of buildings.
Wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP55.
Support custom-made

3. Product Parameters

Configuration	Item	Technical Parameter
Cabinet Body	Size	External Size: 900mm×800mm×1600mm(H×W×D)
	Component	The whole cabinet is composed of two parts: The top part of the cabinet is 19”mounting rack. The lower part of the cabinet is two layers for battery. The installation method is floor mounted.
	Material	Galvanized steel, 1.5mm thick, insulation: 20mmPEF.
	Structure	Single wall, with insulation One front door,hidden zinc alloy hinge Outdoor special steel lock, lock cylinder assembled with protective cover, lock body assembled with three-point lock device Door stopper / wind lock is installed on the inside of the cabinet door Grooved door with seal rubber strip, attached to the inner side of the door, waterproof and dustproof The air inlet and air outlet are all installed with a filter, and the filter can be cleaned and replaced. Include standard 19“ rack inside the cabinet, high universality. Special rack or electrical lining board inside the cabinet can be custom made. Equipped with cable manager Cable inlets at the bottom of cabinet
	Surface Treatment	Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification
	Color	Outdoor polyester light grey RAL 7035 coating or custom made
	Ingress Protection	IP55 or custom made
	Working Temperature	-40°C～+75°C
Cooling Method	Air Conditioner	220vac,1500W Cooling capacity
Monitoring	Monitoring Unit	1U,RS485,SNMP,48VDC
	Smoke Sensor	1 pc
	Vibration Sensor	1pc
	Water Sensor	1pc
	Door Sensor	1pc
	Temperature & Humidity Sensor	1pc
Other	Illumination	LED light, 48VDC

4. Cooling System

220vac air conditioner with1500W Cooling capacity, installed on the front door of the cabinet.

5. Product Features

Cabinet type:one compartment.
Cabinet dimensions:900mm×800mm×2000mm(H×W×D)

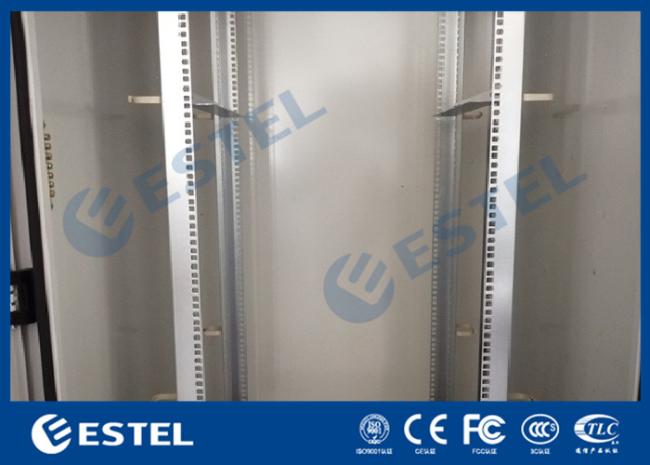

19” mounting rack inside the cabinet
Door type:one front door,with three-point lock(padlock supported)
RAL7035 Gray color
Material:1.5mm thick galvanized steel, single wall, with 20mm PEF heat insulation
8 Cable Inlets are from the bottom of the cabinet.
Cooling system: 1500W cooling capacity air conditioner
IP55 IP rated protection.
Floor mounting type
Package: wooden case
