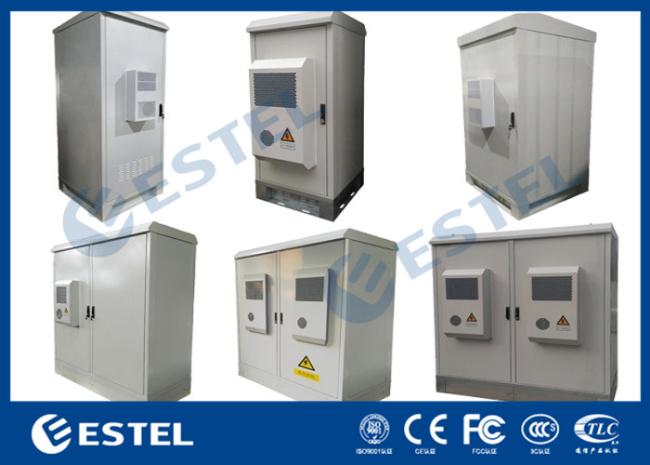

Double Wall Outdoor Telecom Cabinet Galvanized Steel Front Access 19'' Floor Mount

Price Negotiable

Price: 358-2143 usd

MOQ: 1 set

Delivery Time: 15-20 working days

Brand: ESTEL

Product Description

Double Wall Outdoor Telecom Cabinet Galvanized Steel Front Access 19'' Easy Installation

1. Cabinet Specifications

External Size	WDH 10009002000mm.
Material	Galvanized steel,double wall,with thermal insulation.
Cabinet Layout	One compartment for installing 19” equipment
Component	The whole cabinet is composed of three parts:top cover,cabinet body and base.The installation method is floor mounnted.
Protection Level	IP55
Cabinet Inlets	From cabinet bottom
Illumination/lighting	DC48V LED lamp
Heat Insulation	PEF
Grounding Protection	Copper bar
Color	Light Grey
Air conditioner	Cooling Capacity:1500W Power Supply: 220VAC,50Hz
Fan	-48VAC,temperature adjustable
Accessories Options	PDU, Environment monitoring system
Alarm sensors	The door sensor, water sensor, smoke sensor, temperature and humidity sensor
Flame retardant	Comply with GB5169.7 test A
Door type	With 1 front door and 1 back door.
Cabinet Lock	Anti-theft three point lock(support padlock)
Package	Wooden case with pallets
Certificates	CE

2. Cabinet Application

Environmental monitoring
CCTV and security systems
Base station
Mobile & Radio, 3G 4G 5G, Tetra, Microwave
Telecommunication
Internet service providers

3. Cabinet Mounting Type

Wall mounting type
Pole mounting type
Floor standing by base

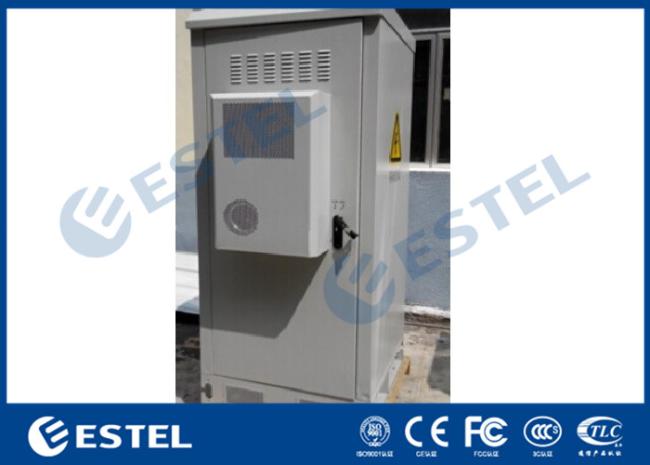

4.Cooling System Pictures

The air conditioner uses utility power input,allowing wide voltage range ,with high energy efficiency ratio.The air conditioner integrated universal intelligent controller,supporting 7*24 hours continous operation.It supports RS485 communication and can be connected with customers' system.

Cooling Capacity:1500W
Power Supply: 220VAC,50Hz
