Double Wall Air Conditioning Outdoor Telecom Cabinet Galvanized Steel Front Access Door
Price:
358-2143 usd
MOQ:
1 set
Delivery Time:
15-20 working days
Brand:
ESTEL
Product Description
Double Wall Air Conditioning Outdoor Telecom Cabinet Galvanized Steel Front Access Door
1. Cabinet Feautres
- Double layers design for the body
- Reasonable inside space application,equipments space,cabling space,battery space
- Dedicated air filter system to stop dust and rain inside cabinet during the fresh air into the cabinet
- Good quality earthing system,grounding resistance is less than 10 milliohm,good lightning protection ability.
- High quality 3 points handle locks,protection level IP55-IP65
- Cabinet external temperature:-40-+60 degree
- Environmental temperature:-50-+55 degree
- Equipments working temperature:-18-+35 degree
- Environmental humidity:less than 95%(+30 degree)
- Atmospheric presure:70-106Kpa
- Protection Level:at least IP55
- Material:Galvanized Steel 1.5mm thickness for the body,2.0mm for 19'' rails
- Bogy Color:Gray RAL7035
2.Specifications
| External Size | W*D*H 900*900*1600mm. |
| Material | Galvanized steel,double wall,with thermal insulation. |
|
Cabinet Layout |
One compartment for installing 19” equipment |
| Component | The whole cabinet is composed of three parts:top cover,cabinet body and base.The installation method is floor mounnted. |
| Protection Level | IP55 |
| Cabinet Inlets | From cabinet bottom |
| Illumination/lighting | DC48V LED lamp |
| Heat Insulation | PEF |
| Grounding Protection | Copper bar |
| Color | Light Grey |
| Air conditioner |
Cooling Capacity:1500W Power Supply: 220VAC,50Hz |
| Fan | -48VAC,temperature adjustable |
| Accessories Options | PDU, Environment monitoring system |
| Alarm sensors | The door sensor, water sensor, smoke sensor, temperature and humidity sensor |
| Flame retardant | Comply with GB5169.7 test A |
| Door type | With 1 front door and 1 back door. |
| Cabinet Lock | Anti-theft three point lock(support padlock) |
| Package | Wooden case with pallets |
| Certificates | CE |
2. Cabinet Application
- Environmental monitoring
- CCTV and security systems
- Base station
- Mobile & Radio, 3G 4G 5G, Tetra, Microwave
- Telecommunication
- Internet service providers
3. Cabinet Mounting Type
- Wall mounting type
- Pole mounting type
- Floor standing by base

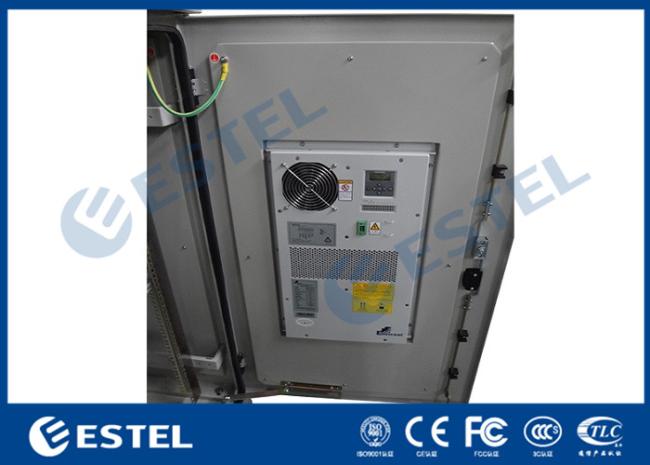

4. Cooling System Pictures
The air conditioner uses utility power input,allowing wide voltage range ,with high energy efficiency ratio.The air conditioner integrated universal intelligent controller,supporting 7*24 hours continous operation.It supports RS485 communication and can be connected with customers' system.
- Cooling Capacity:1500W
- Power Supply: 220VAC,50Hz

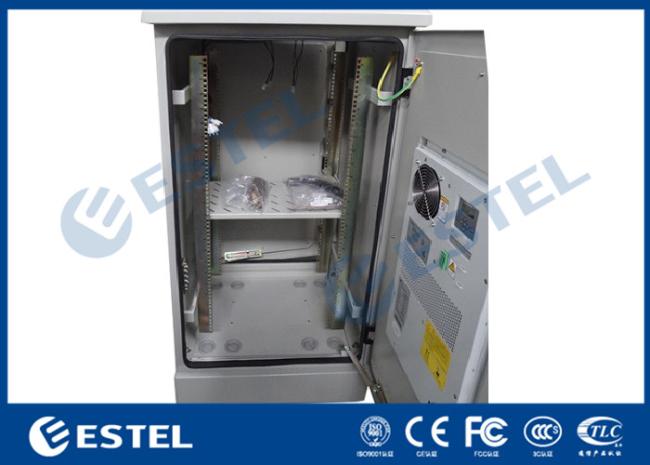

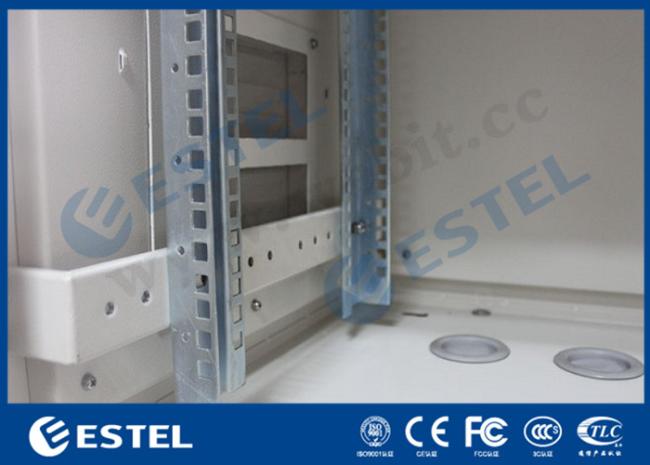

5. Cabinet Internal Pictures
