Single Wall Galvanized Steel Outdoor Communication Cabinets Grey RAL 7035 Color

1. Product Overview

This series outdoor cabinet is well suited for electronic equipment, batteries, telecom gear, all integrated in to a robust, economical package. The cabinet is also well suited for areas that require limited equipment installation, as a stand-alone power for site-power applications or a battery solution for additional growth.

2. Product Parameters

3. Description

3.1 Cabinet Material

The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF, heat insulation coefficient: 0.035W/m·K. The cabinet is assembled type.

3.2 Cabinet Structure

The cabinet includes 19” equipment installation rack. The cabinet includes one air conditioner, installed on front door.

4. Cabinet Door and Lock

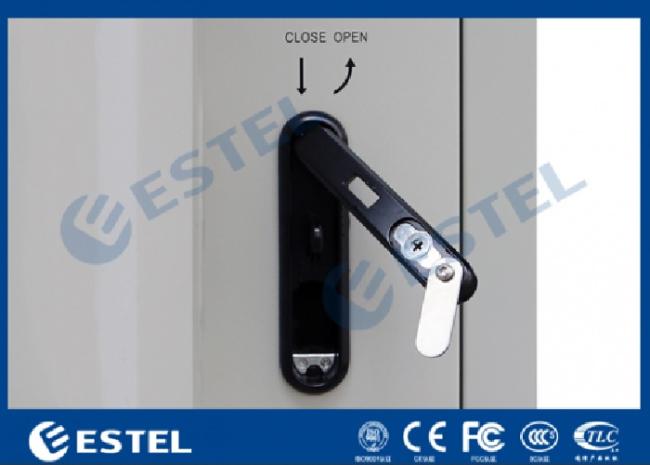

The cabinet includes one front door. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.

Door lock theft proof design:Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.

5. Cable Inlet

Feeder cable and other external cables all use bottom wiring method.

6. Connection and Fastening

• Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.

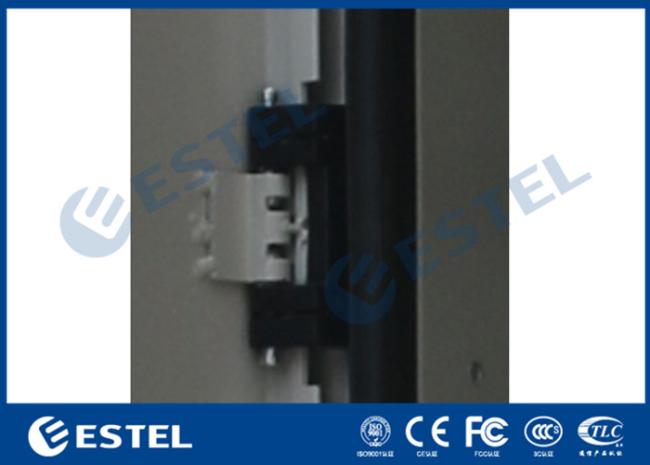

• Door hinges use inner hinge mode.
