30U Outdoor Equipment Cabinet Galvanized Steel Single Wall With Heat Insulation
30U Outdoor Electrical Cabinets Galvanized Steel Single Wall With Heat Insulation
1. Technical Parameters
| External Size | W*D*H 900*900*1600mm. |
| Material | Galvanized steel,single wall,with thermal insulation. |
|
Cabinet Layout
|
One compartment for installing 19” equipment
|
| Component | The whole cabinet is composed of three parts:top cover,cabinet body and base.The installation method is floor mounnted. |
| Protection Level | IP55 |
| Cabinet Inlets | From cabinet bottom |
| Illumination/lighting | DC48V LED lamp |
| Heat Insulation | PEF |
| Grounding Protection | Copper bar |
| Color | Light Grey |
| Air conditioner |
Cooling Capacity:1000W Power Supply: 220VAC,50Hz |
| Fan | -48VAC |
| Accessories Options | PDU, Environment monitoring system optional |
| Alarm sensors | The door sensor, water sensor, smoke sensor, temperature and humidity sensor |
| Flame retardant | Comply with GB5169.7 test A |
| Door type | With 1 front door |
| Cabinet Lock | Anti-theft three point lock(support padlock) |
| Package | Wooden case with pallets |
| Certificates | CE |
2. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension: H*W*D 900*900*1600mm;
(2) 1 compartment,:equipment compartment;
(3) With one front door , and anti-theft three point lock for outdoor cabinet (support padlock) ;
(4) Material: galvanized steel; single wall ; |
| 2 | Air Conditioner | 1 | Set |
Cooling capacity: 1000W, Power supply: AC220V, 50HZ; |
| 3 | Auxiliary Direct Ventilation Fans | 2 | PC | DC48V |
| 4 | Door Sensor | 1 | PC | For controlling LED lamp |
| 5 | LED Lamp | 1 | PC | DC48V |
| 6 | Power Distribution Unit | 1 | Set | Grade B Lightning Proof AC Input: 63A/2P *1; AC Output: 16A/1P*4; DC Output: 16A/1P*4 |
| 7 | Package | 1 | Set | Wooden Case |
3. Cabinet Features
- The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
- The equipment compartment cooling: fans and air conditioner. (Other cooling option: heat exchanger).
- The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.
- There are entrance holes individually for power cable, signal cable and optical cable.
- All the cables used in the cabinet are made from flame retardant materials.
4.Cooling System Pictures

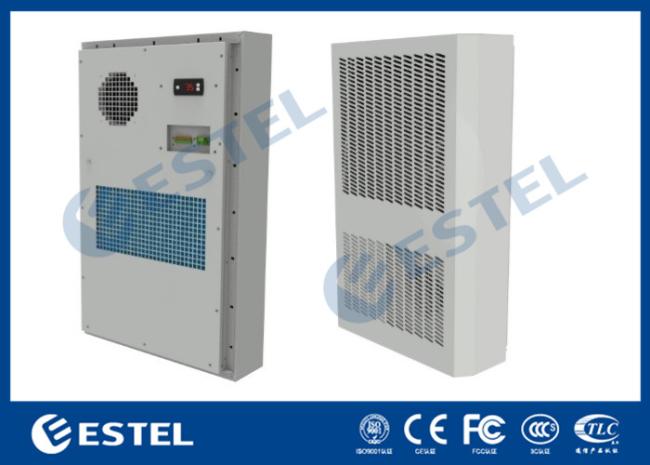

The air conditioner uses utility power input,allowing wide voltage range ,with high energy efficiency ratio.The air conditioner integrated universal intelligent controller,supporting 7*24 hours continous operation.It supports RS485 communication and can be connected with customers' system.
- Cooling Capacity:1000W
- Power Supply: 220VAC,50Hz
5. Prodcution Pictures
6. Delivery Time
Usually about 10-15 days. The exact lead time need to be confirmed according to the quantity of order.
