Integrated Weatherproof Outdoor Telecom Cabinet Galvanized Steel With Oil Socket
Integrated Weatherproof Outdoor Telecom Cabinet Galvanized Steel With Oil Socket
1. Cabinet Overview
-
Outdoor cabinet suitable for a variety of outdoor environment.
-
IP degree:IP65
-
Variety material:galvanized steel,double wall
-
Variety cooling options to choose,fans,air conditioner,heat exchanger
-
Floor mounting,wall mounting,pole mounting optional
-
Accept customized product.
-
Various sensors,power distribution box, environment monitoring unit,battery,etc,Optional.
-
With oil socket from the side of the cabinet botom
-
Working Temperature:-20~+55ºC
-
Storage Temperature:-40~+65ºC
2.Product Specification
| Certification | CE |
| Structure | One compartment |
| Cabins | Outdoor telecom cabinets |
| Material | Galvanized sheet,double wall. |
| Doors | Front door |
| Thickness | Outer panel adopt 1.5mm,internal panel adopt 1.0mm. |
| Dimension | 1800H*800W*800Dmm |
| Cooling method |
AC air conditioner cooling system |
| Surface treatment |
Painting,plasma electrostatic painting,hot galvanized,powder coating, polishing, brushing,etc. |
| Mounting method | Floor mounted |
| Optional Accessories |
The door sensor, water sensor, smoke sensor, temperature and humidity sensor |
| IP Degree | IP65 |
| Color | RAL7035 |
| Package | Wooden case with pallets |
3. Cabinet Application
-
Satellite Communication
-
Wireless Backhaul
-
Cable Television
-
Navigation & Positioning
-
Military Installation
-
Port Security

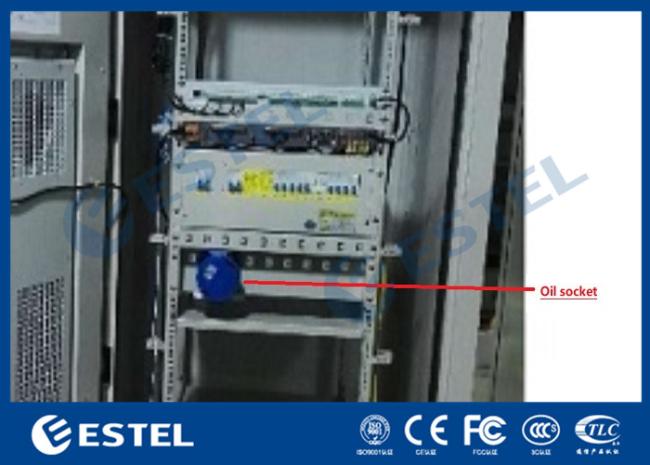

4. Oil Socket

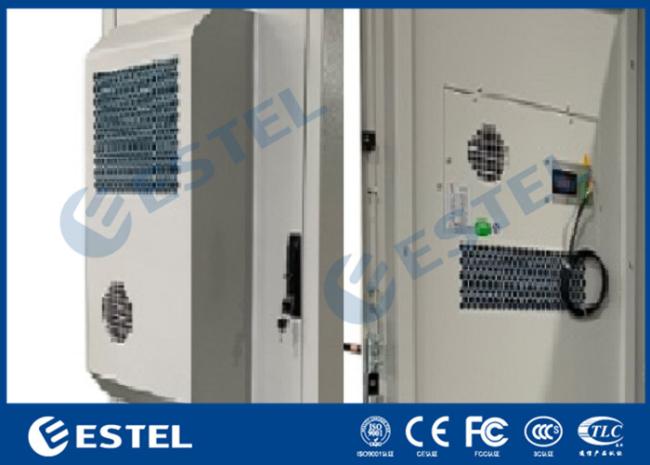

5. Cooling System
220VAC air conditioner with1500W cooling capacity,which is installed on the front door of the cabinet.
