32U Reliable Structure Outdoor Equipment Cabinet Waterproof IP55 19”Mounting Rack
32U Reliable Structure Waterproof Outdoor Telecom Cabinet IP55 19” Mounting Rack
1. Cabinet Instructions
This series cabinet is 1750mm High and 750mm Wide and 750mm Deep. For those who need more than just standard cabinet, this series can also offer a truly the security of customized solution with lots of available options, providing a climate-controlled environment for any electronic equipment, electrical load panels and cable entry solutions. It provides a secure,climate controlled environment for any electronic equipment.
2. Cabinet Parameters
1. The cabinet has 19” mounting rack inside,32U.
2. The cabinet is one compartment structure.
3. The cabinet is an outdoor cabinet with protection grade of IP55.
4. The bottom of the cabinet is provided with cable inlet.
5. Cabinet material: galvanized steel, double wall,with heat insulation.
6. External dimension of cabinet: W × D × H 750 × 750 × 1750mm.
7. The cabinet has two air fans, 48VDC.
8. There are 4 pairs of L-shaped brackets inside the cabinet.
9. The cabinet is equipped with one front door, three-point lock and padlock.
10. Cabinet with ground bar inside.
11. One air conditioner is installed on the front door of the cabinet. Cooling capacity of air conditioner: 1500W; 48VDC.
12. The cabinet is equipped with 2 AC PDUs
13. The cabinet is equipped with one LED lamp, 48VDC. When opening the door, the light will turn on automatically. When the door is closed, the light will turn off automatically. 14. Cabinet with 1 environmental monitoring unit, 19 inch, 1U, input voltage: 48VDC, supporting SNMP communication. With 1 access sensor, 1 water immersion sensor, 1 smoke sensor, 1 temperature and humidity sensor, 1 vibration sensor.
3.Cabinet Advantage
| 1 | Ease of access |
All components are front accessible; no side or back clearance is required. Internal components and connections are easily accessible and/or removable through the front door.
|
| 2 |
Ease of Maintenance
|
Most power and control modules are provided in sub-assembled chassis with plug and socket connection for easy serviceability and minimized spare part inventory. |
| 3 | Low MTTRaintenance |
Due to the ease of access to internal components and the plug-and-socket subassemblies in addition to the availability of self-diagnostic PCB, It is accredited for exceptionally low mean time to repair (MTTR).
|
| 4 |
Ease of installation |
Cabinets are floor mountable with bottom entry equipped for cable or conduit entrance. Input, output and remote alarm connections are wired to internal terminal lugs that are easily accessible. Top entry is available upon request.
|
| 5 | Ease of adjustment |
Output voltage, current limits and alarm levels are easily adjustable.
|

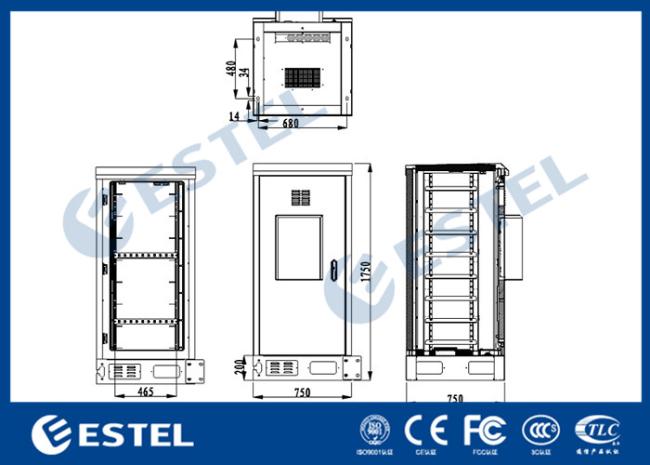

4. Cabinet Dimensions

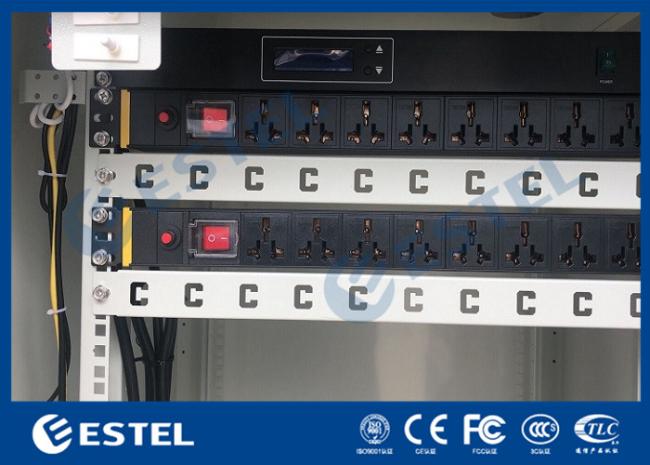

5. PDU Pictures
5. Cabinet Package And Shipment
Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
6. Factory Introduction
Factory Size: 3000 Square Meters
No. of Main Production Lines: 5
Contract Manufacturing: OEM Service Offered, Design Service Offered, Buyer Label Offered
Production Experience: 13 Year
