19" Outdoor Rack Mount Enclosure , Outdoor Communication Cabinets Galvanized Steel
Air Conditioner Cooling 19” Mounting Rack Galvanized Steel Outdoor Telecom Cabinet
1. Cabinet Description
The cabinet is one compartment cabinet. The cabinet cooling use air conditioner and fans, to ensure the equipments operate normally at stable temperature range, so as to make the service life of the equipments much longer and their performance more stable.
2. Cabinet Advantage
- Strong rack inside to be equipped with telecom equipments, power source, battery, temperature control device and other attachments.
- Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other alarm information, etc.
- Cabinet made of low thermal conductivity and fireproof material for heat insulation fireproof.
- Can be installed in any difficult places include the top of mountain and the roof of buildings.
- Wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP55.
-Support custom-made.
3. Cabinet Parameters
| Items | Specifications |
| Cabinet structure | One compartment |
| Racking mount | 19” mounting rack inside,32U |
| IP grade | IP55 |
| Cabinet inlet | At the bottom of the cabinet |
| Cabinet materia | Galvanized steel, double wall,with heat insulation |
| External dimension | W × D × H 800 × 800 × 1750mm |
| Cooling fans | The cabinet has two air fans, 48VDC. |
| Air conditioner | 1500W; 48VDC. |
| Ground bar | Cabinet with ground bar inside. |
| LED lamp | 48VDC |
| Cabinet Door | one front door, with three-point lock and padlock. |
| Cabinet door lock | three-point lock and padlock. |
| Environmental monitoring unit | 19 inch, 1U, input voltage: 48VDC, supporting SNMP communication. With 1 access sensor, 1 water immersion sensor, 1 smoke sensor, 1 temperature and humidity sensor, 1 vibration sensor. |
| Package | Wooden box |
4. Cooling System
4.1 The cabinet has two air fans, 48VDC.

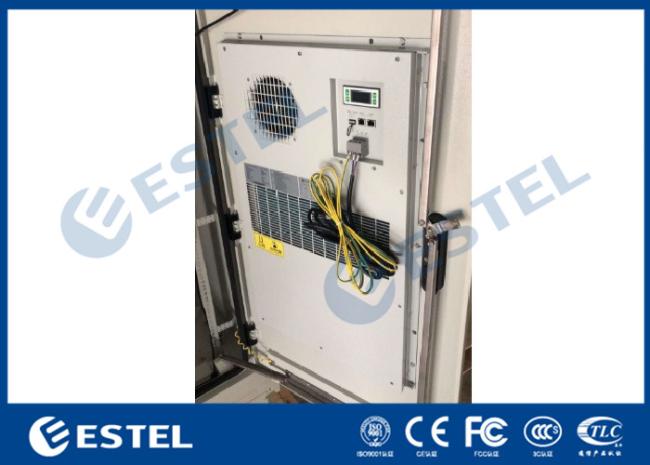

4.2 One air conditioner is installed on the front door of the cabinet. Cooling capacity of air conditioner: 1500W; 48VDC.

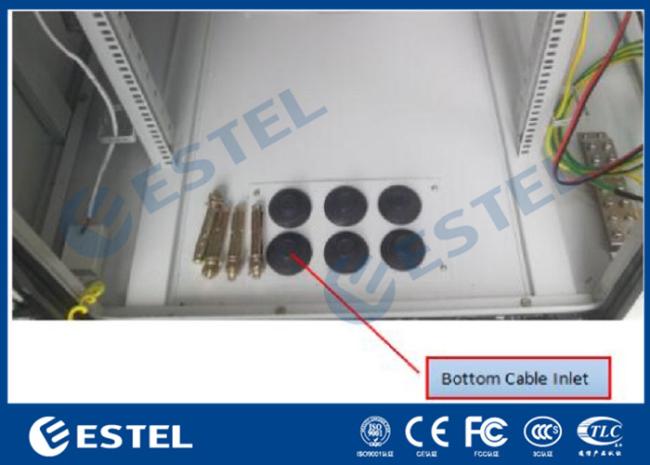

5. Cable Inlets
There are cable inlets at the bottom of the cabinet.

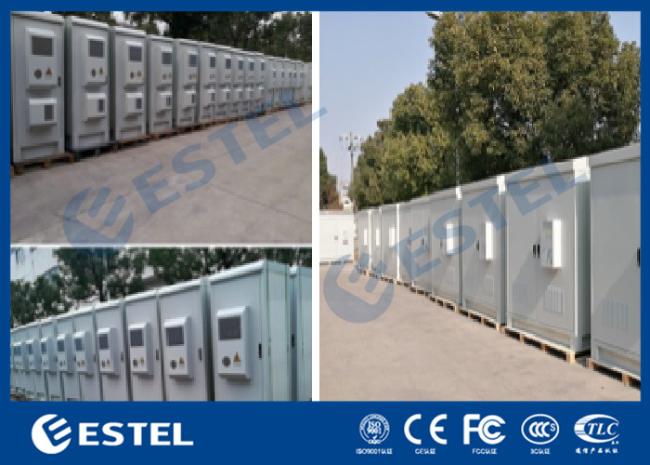

6. Prodcution Pictures
