Fans Cooling Outdoor Power Cabinet Floor Mounted Anti Theft Three Point Lock
Galvanized Steel Floor Mounted Outdoor Telecom Cabinet For Electronic Equipment And Battery
1.Cabinet Application
This series outdoor Cabinet is mainly used in wireless communication base station, such as communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
2. Cabinet Features
(1) The cabinet is dustproof, sunproof and rainproof, used in outdoor environment.
(2) Cooling:2 fans.
(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.
(4) All the cables used in the cabinet are made from flame retardant materials.
3. Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet Body | Size | External Size: 2200mm×900mm×750mm(H×W×D) |
| Component |
The whole cabinet is composed of two parts: the upper part is used for installing electronic equipment,16U, and the lower part is used for installing batteries. The installation method is floor mounted. |
|
| Material | Galvanized steel, single wall,1.5mm thick | |
| Structure |
|
|
| Surface Treatment | Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification | |
| Color | Outdoor polyester light grey RAL 7035 coating or custom made | |
| Ingress Protection | IP55 | |
| Working Temperature | -40°C～+75°C | |
| Cooling Method | Compressor Air Conditioner | / |
| Heat Exchanger | / | |
| TEC Air Conditioner | / | |
| Fan | 2 pcs, DC48V | |
| Monitoring | Monitoring Unit | / |
| Smoke Sensor | 1pc, Monitor the smoke status inside the cabinet and provide real time alarm. | |
| Vibration Sensor | / | |
| Water Sensor | / | |
| Door Sensor | 2pcs,When unlawfully opened, provide real-time alarm. | |
| Temperature Sensor | 2pcs, used to detect the temperature inside the cabinet and send an alarm. | |
| Other | / | |
| PDU | PDU |
DC circuit breaker: 5x16A,5x10A; 1x MCB 4P 63A,4xMCB 2P 16A AC circuit breaker: 1x MCB 4P 63A,4xMCB 2P 16A |
| Illumination | Illumination | LED light, 1 pc,48VDC |
4. Cabinet Component
The whole cabinet is composed of two parts:

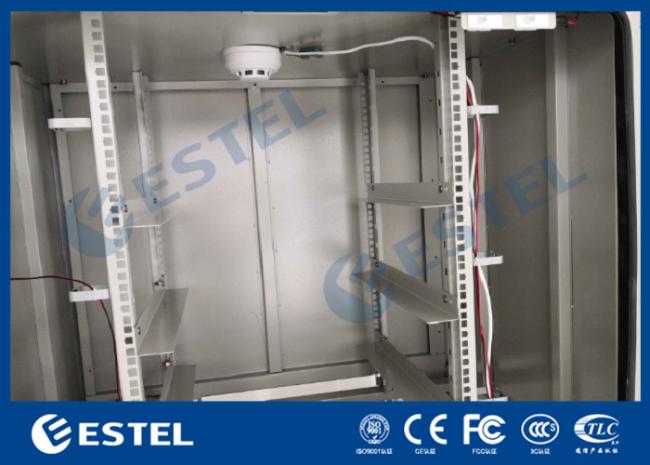

4.1 The upper part is used for installing electronic equipment,16U

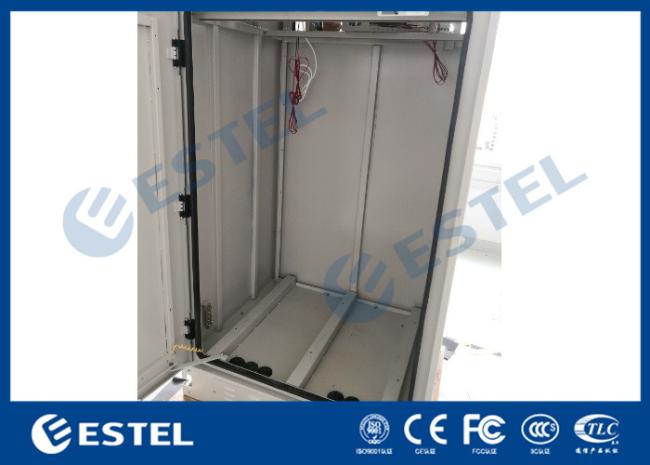

4.2 The lower part is used for installing batteries
5.Cabinet Dimension
External Dimension:H×W×D 2200×900×750mm
6.Appearance And Surface Treatment
Cabinet surface coating is outdoor special powder coating, with white gray color. The coating complies with GB/T 3181-2008 requirement.

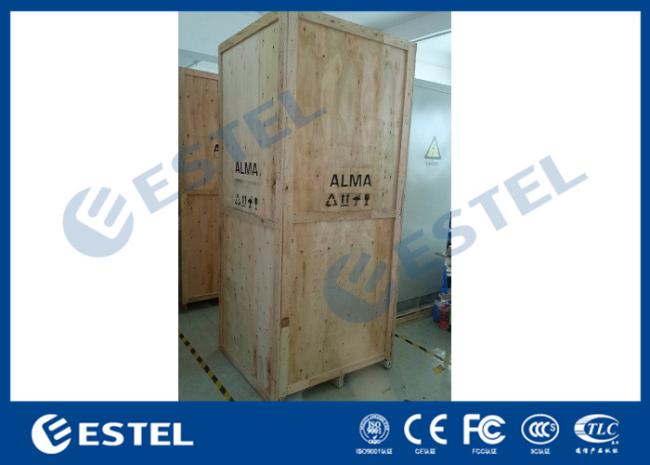

7.Cabinet Package
