Double Wall IP55 Outdoor Telecom Cabinet Floor Mount Waterproof Three Point Lock
Three-point Lock Galvanized Steel Double Wall IP55 Outdoor Telecom Cabinet Waterproof Dustproof
1. Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet Body | Size | External Size: 2100mm×900mm×900mm(H×W×D) |
| Component |
The whole cabinet is composed of one compartment: 40U,19" rack. The installation method is floor mounted. |
|
| Material | Galvanized steel, double wall, with heat insulation | |
| Structure |
|
|
| Surface Treatment | Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification | |
| Color | Outdoor polyester light grey RAL 7035 coating or custom made | |
| Ingress Protection | IP55 | |
| Working Temperature | -40°C～+75°C | |
| Cooling Method | Compressor Air Conditioner |
2 pcs air conditoners:
|
| Fan | 2 pcs, 220VAC,60Hz. | |
| PDU | PDU |
B grade lightning protection: 60KA*1; AC input:63A/2P *1; AC output: 16A/1P*4; DC output: 16A/1P*4; Input voltage:AC220V, 60Hz. Maintenance socket *1. |
| Illumination | Illumination | LED light, 2 pcs, 220VAC. |
2. Cabinet Features
(1)40U,19" rack inside of the cabinet.
(2)One front door and one back door ,hidden zinc alloy hinge.
(3)Floor mounted type.
(4) The cabinet is dustproof, sunproof and rainproof, used in outdoor environment.
(5) Cooling:2 fans and 2 air conditioners
(6) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.
(7) All the cables used in the cabinet are made from flame retardant materials.
(8)There are inlets holes at the front and back of the cabinet bottom.
(9)IP55 proteciton level.
3. Cable Inlets and Grounding Bar
3.1 There are cable inlets at the cabinet bottom, as shown in the below picture.

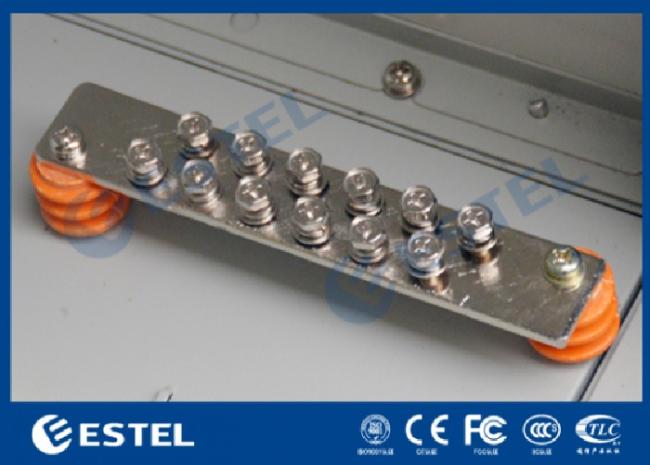

3.2 There is one grounding bar at the side of the cabinet bottom,as shown in the below picture.
4.Cooling System
4.1 There are 2 fans on the the top cover.
4.2 There are 2 air conditioners for cooling,one installed on the front door ,the other is installed on the back door.
5.Cabinet Package
